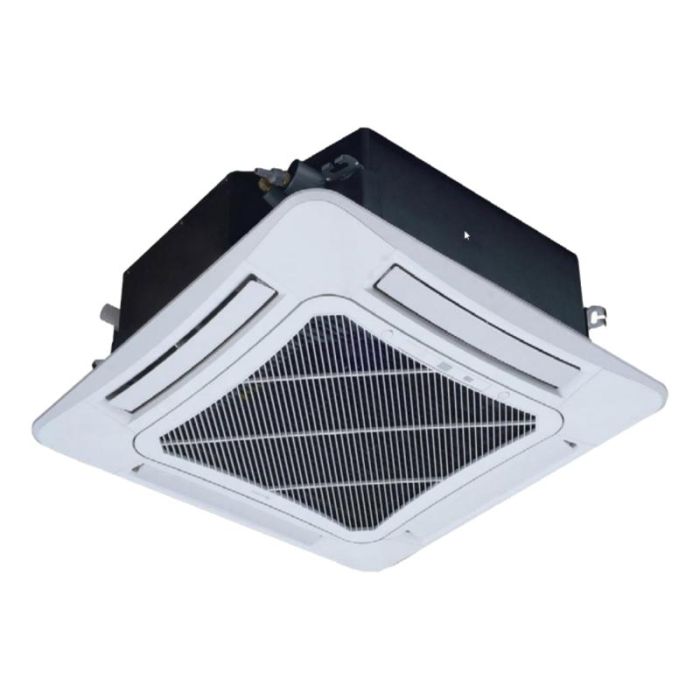

Gree GMV-ND24T/C-T(U) 360° VRF Fresh Air Cassette 24K BTU

Product Description

The GREE GMV-ND24T/C-T(U) is a 24K BTU 360° VRF Fresh Air Cassette designed for indoor AHU applications. This single-phase unit operates on 230 VAC and uses R-410A refrigerant, providing a cooling capacity of 24000 BTU and a heating capacity of 27000 BTU. It features a ceiling cassette mounting type and delivers 500-675 CFM.

• Provides 24000 BTU cooling capacity and 27000 BTU heating capacity.
• Operates on 230 VAC single-phase power with R-410A refrigerant.
• Designed for ceiling cassette mounting with a 360° fresh air distribution.

Product Highlights

A 24K BTU VRF fresh air cassette with 360° distribution, 230 VAC operation, and R-410A refrigerant.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: GMV-ND24T/C-T(U)
• Country of Origin: China

Technical Specifications

• AHRI Usage: Indoor AHU
• CFM: 500-675
• Cooling Capacity: 24000 BTU
• Frequency: 50/60 Hz
• Energy Star Rated: No
• Equipment Type: VRF - Heat Pump
• ETL Listed: Yes
• Heating Capacity: 27000 BTU
• Liquid Line Size (OD): 3/8"
• Mounting Type: Ceiling Cassette
• Phase: Single
• Product Family: GMV5
• Refrigerant: R-410A
• Sound Level (dBA): 33-38
• Suction Line Size (OD): 5/8"
• Input Voltage: 230 VAC
• Maximum Overcurrent Protection (MOCP): 15 A
