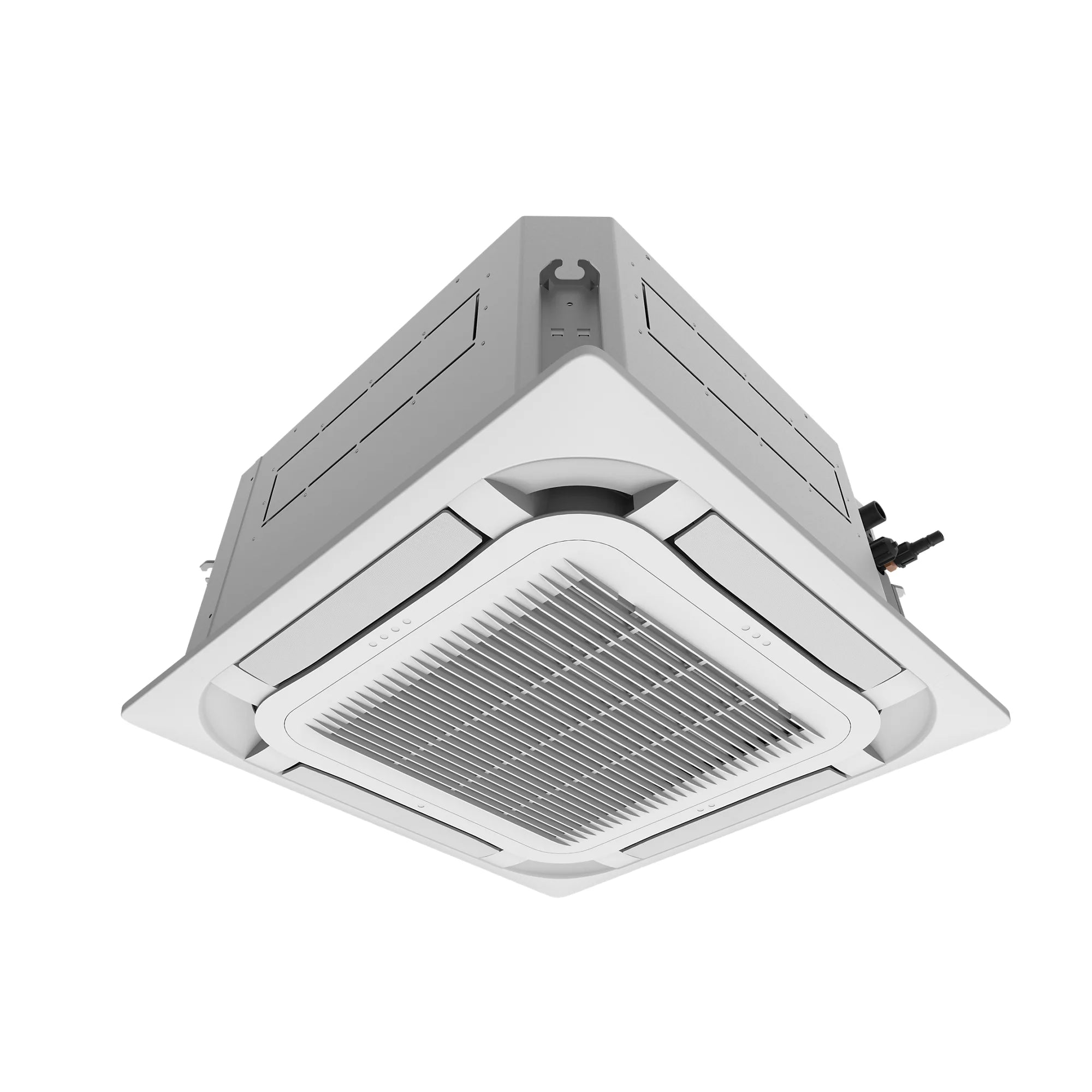

Gree GMV-ND18T/E-T(U) 18k Btu 360 DeGree Air Discharge Compact Cassette Indoor Unit 208/230 V 1-Phase 60 Hz

Product Description

The GREE GMV-ND18T/E-T(U) is an 18,000 BTU 360-degree air discharge compact cassette indoor unit designed for VRF heat pump systems. Operating on 208-230 VAC, single-phase, 60 Hz power, this ceiling cassette unit provides efficient cooling and heating with a cooling capacity of 18,000 BTU and a heating capacity of 20,000 BTU. It utilizes R-410A refrigerant and is ETL Listed, ensuring safety and performance for indoor air handling applications.

• Cooling capacity of 18,000 BTU and heating capacity of 20,000 BTU.
• Operates on 208-230 VAC, single-phase, 60 Hz power supply.
• Features 360-degree air discharge for uniform air distribution and a sound level of 39-43 dBA.

Product Highlights

ETL Listed 1.5-ton ceiling cassette for VRF heat pump systems with R-410A refrigerant.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: GMV-ND18T/E-T(U)
• Country of Origin: China

Technical Specifications

• AHRI Usage: Indoor AHU
• CFM: 330-430
• Cooling Capacity: 18000 BTU
• Frequency: 60 Hz
• Energy Star Rated: No
• Equipment Type: VRF - Heat Pump
• ETL Listed: Yes
• Heating Capacity: 20000 BTU
• Liquid Line Size: 3/8" OD
• Mounting Type: Ceiling Cassette
• Phase: Single
• Product Family: GMV5
• Refrigerant: R-410A
• Sound Level: 39-43 dBA
• Suction Line Size: 5/8" OD
• Tonnage: 1.5
• Input Voltage: 208-230 VAC
• Maximum Overcurrent Protection (MOCP): 15 A
• California Prop 65 Warning: Yes
• UL Listed: No
