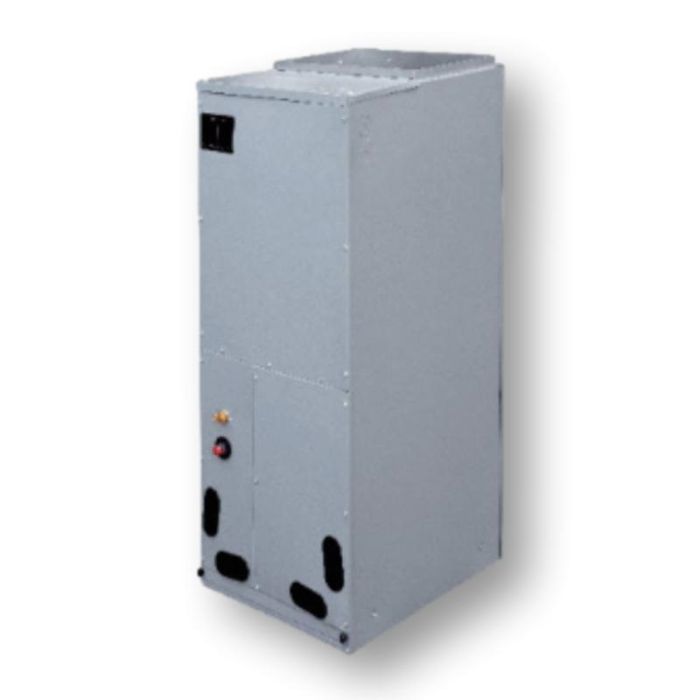

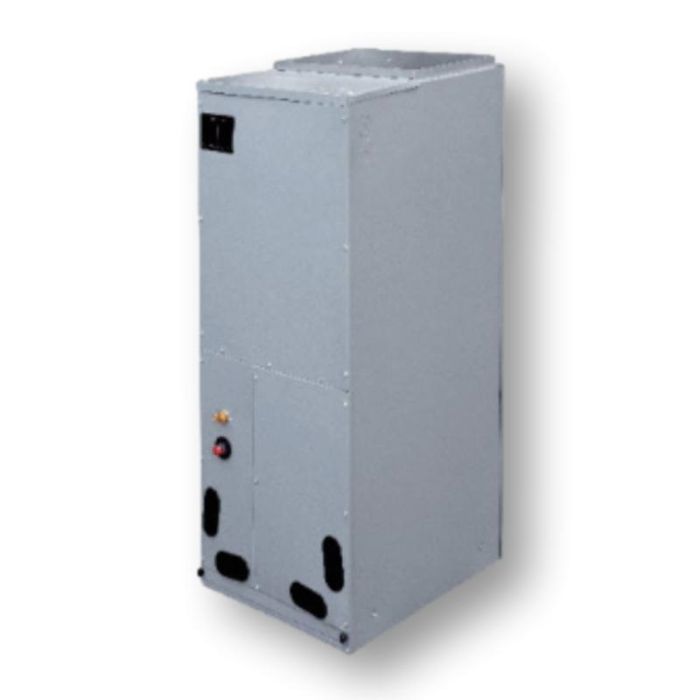

Gree GMV-ND18A/B-T(U) GMV series indoor air handler 18,000 BTU 208/230V

Product Description

The GREE GMV-ND18A/B-T(U) is a GMV Series DC Air Handler, a 5DC inverter multi VFR indoor unit. This 1.5-ton heat pump provides 18,000 BTU cooling and 20,000 BTU heating capacity, operating on 208-230 VAC, 60 Hz, single-phase power. Designed for ducted multi-position mounting, it uses R-410A refrigerant and features 3 blower motor speeds, making it suitable for various indoor HVAC applications.

• Multiple fan speed options for customized airflow.
• DC inverter motor for efficient and quiet operation.
• Integrated protection functions including anti-freezing and fan motor overload.

Product Highlights

ETL Listed indoor air handler with ultra-low noise operation and ducted multi-position mounting.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: GMV-ND18A/B-T(U)

Technical Specifications

• Usage: Indoor AHU
• Approvals: ETL Listed
• Blower Motor Speeds: 3
• Brand: Gree
• CFM: 300-650
• Cooling Capacity: 18,000 BTU
• Frequency: 60 Hz
• Energy Star Rated: No
• Equipment Type: Heat Pump
• Heating Capacity: 20,000 BTU
• Liquid Line Fitting Type: Flare
• Liquid Line Size: 3/8" OD
• Maximum Overcurrent Protection (MOCP): 15 A
• Mounting Type: Ducted Multi-Position
• Phase: Single
• Product Family: GMV5
• Refrigerant: R-410A
• Sound Level: 33-39 dBA
• Substantial Commodity: Steel; Copper; Aluminum
• Suction Line Fitting Type: Flare
• Suction Line Size: 5/8" OD
• Tonnage: 1.5 Ton
• Input Voltage: 208-230 VAC
