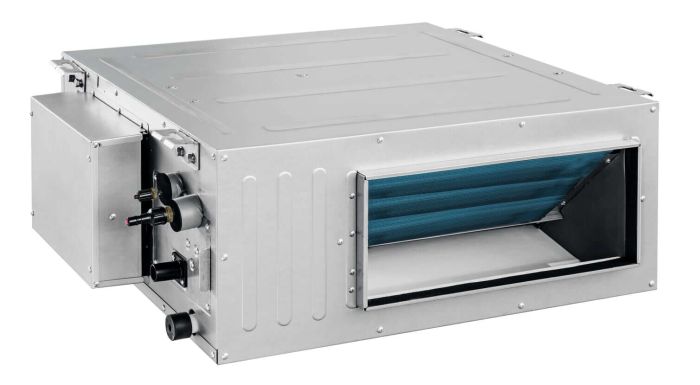

Gree GMV-ND09PHS/B-T(U) 9K BTU VRF Indoor Duct Unit Super High ESP 208-230/1/60

Product Description

The Gree GMV-ND09PHS/B-T(U) is a 9K BTU VRF Indoor Duct Unit designed for concealed ducted mounting. This super high ESP heat pump operates on 208-230 VAC, single phase, 60 Hz power, utilizing R-410A refrigerant. It offers a cooling capacity of 9000 BTU and a heating capacity of 10500 BTU, with a sound level ranging from 31-35 dBA. The unit provides a CFM range of 235-324.

• 9K BTU Cooling Capacity for effective climate control
• VRF Indoor Duct Unit with Super High ESP for versatile installation
• Operates on 208-230 VAC, Single Phase, 60 Hz power supply

Product Highlights

This Gree GMV5 series indoor duct unit provides efficient heating and cooling with a low sound level, suitable for concealed installations.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: GMV-ND09PHS/B-T(U)
• Country of Origin: China

Technical Specifications

• Weight: 85.98
• AHRI Usage: Indoor AHU
• CFM: 235-324
• Cooling Capacity: 9000 BTU
• Frequency: 60 Hz
• Energy Star Rated: No
• Equipment Type: VRF - Heat Pump
• ETL Listed: Yes
• Heating Capacity: 10500 BTU
• Liquid Line Size: 1/4 inch OD
• Mounting Type: Concealed Ducted
• Phase: Single
• Product Family: GMV5
• Refrigerant Type: R-410A
• Sound Level: 31-35 dBA
• Suction Line Size: 3/8 inch OD
• Tonnage: 0.75
• Input Voltage: 208-230 VAC
• Maximum Overcurrent Protection: 15 Amps
• UL Listed: No
