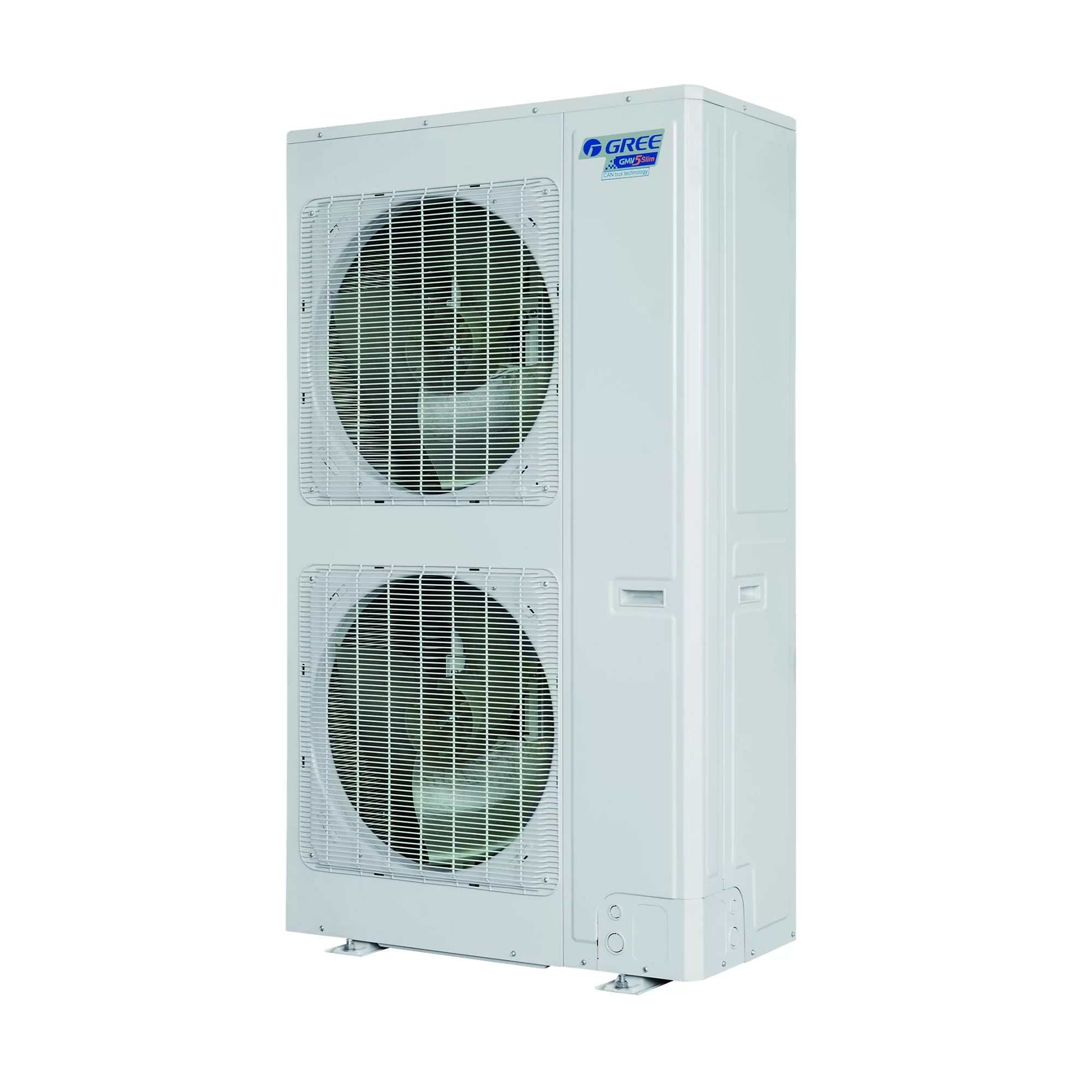

Gree GMV-60WL/C-T(U) Mini HP HZ Outdoor Unit 22S 230V

Product Description

The GREE GMV-60WL/C-T(U) is a 5-ton Mini HP HZ Outdoor Unit designed for VRF heat pump systems. Operating on 208-230 VAC at 60 Hz, this single-phase unit utilizes R-410A refrigerant. It provides a cooling capacity of 60,000 BTU/h and a heating capacity of 64,000 BTU/h, suitable for various climate conditions. The unit features a PSC condenser motor and is ETL Listed, ensuring compliance with safety standards.

• Offers a cooling capacity of 60,000 BTU/h and a heating capacity of 64,000 BTU/h.
• Operates within a wide temperature range: cooling from -5°C to 48°C and heating from -20°C to 27°C.
• Features a single-stage, single-phase design with a PSC condenser motor and R-410A refrigerant.

Product Highlights

5-ton VRF heat pump outdoor unit with 208-230 VAC operation, 60,000 BTU/h cooling, and 64,000 BTU/h heating capacity.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: GMV-60WL/C-T(U)
• Country of Origin: China

Technical Specifications

• Condenser Motor Speeds: 1
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Cooling Capacity: 60000 BTU/h
• Frequency: 60 Hz
• EER: 10.5-11
• Energy Star Rated: No
• Equipment Type: VRF Heat Pump
• Certifications: ETL Listed
• Heating Capacity: 64000 BTU/h
• Liquid Line Size: 3/8 inch OD
• Operating Temperature Range: Cooling: -5°C to 48°C (23°F to 118°F); Heating: -20°C to 27°C (-4°F to 81°F)
• Phase: Single
• Product Family: GMV5 Mini
• Rated Load Amps (RLA): 19.1 A
• Refrigerant Type: R-410A
• Stage: Single
• Suction Line Size: 3/4 inch OD
• Tonnage: 5 Ton
• Input Voltage: 208-230 VAC
• Maximum Overcurrent Protection (MOCP): 40 A
• Usage: Outdoor
• UL Listed: No
