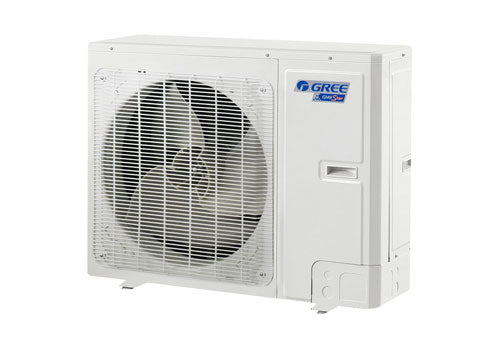

Gree GMV-36WL/C-T(U) 36K BTU/H heat pump (Mini GMV5) 3 ton 208-230 VAC 60 Hz

Product Description

The GREE GMV-36WL/C-T(U) is a 3-ton heat pump, part of the GMV5 mini DC Inverter Multi VRF System, operating at 208-230 VAC, 60 Hz. This air-cooled outdoor unit connects to multiple direct evaporative indoor units, providing processed air for household or light commercial facilities. It is engineered for high efficiency with a cooling capacity of 36,000 BTU/h and a heating capacity of 45,000 BTU/h, ensuring effective climate control.

• Features high efficiency and a wide operation range for versatile applications.
• Designed with a long connection pipe capability for flexible installation.
• Incorporates intelligent capacity adjustment for optimized performance and energy savings.

Product Highlights

High efficiency, wide operation range, and intelligent capacity adjustment for versatile applications.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: GMV-36WL/C-T(U)
• Country of Origin: China

Technical Specifications

• Height: 53
• Length: 15
• Tonnage: 3
• Width: 35.375
• ERP ID: 404704
• AHRI Usage: Outdoor
• CFM: 3,531
• Cooling Capacity: 36,000 BTU/h
• Country of Origin: CHN
• EER: 11.3-13
• Energy Star Rated: Yes
• Heating Capacity: 45,000 BTU/h
• Prop 65: Yes
• SEER: 16.5
• Equipment Type: Heat Pump
• Product Family: GMV5 Mini
• Unit Type: CBU - Compressor Bearing Unit
• Frequency: 60 Hz
• MOCP: 50 A
• Phase: Single
• RLA: 28 A
• Substantial Commodity: Steel; Copper; Aluminum; Petroleum
• Input Voltage: 208-230 VAC
• Liquid Line Size: 3/8" OD
• Refrigerant: R-410A
• Suction Line Size: 5/8" OD
