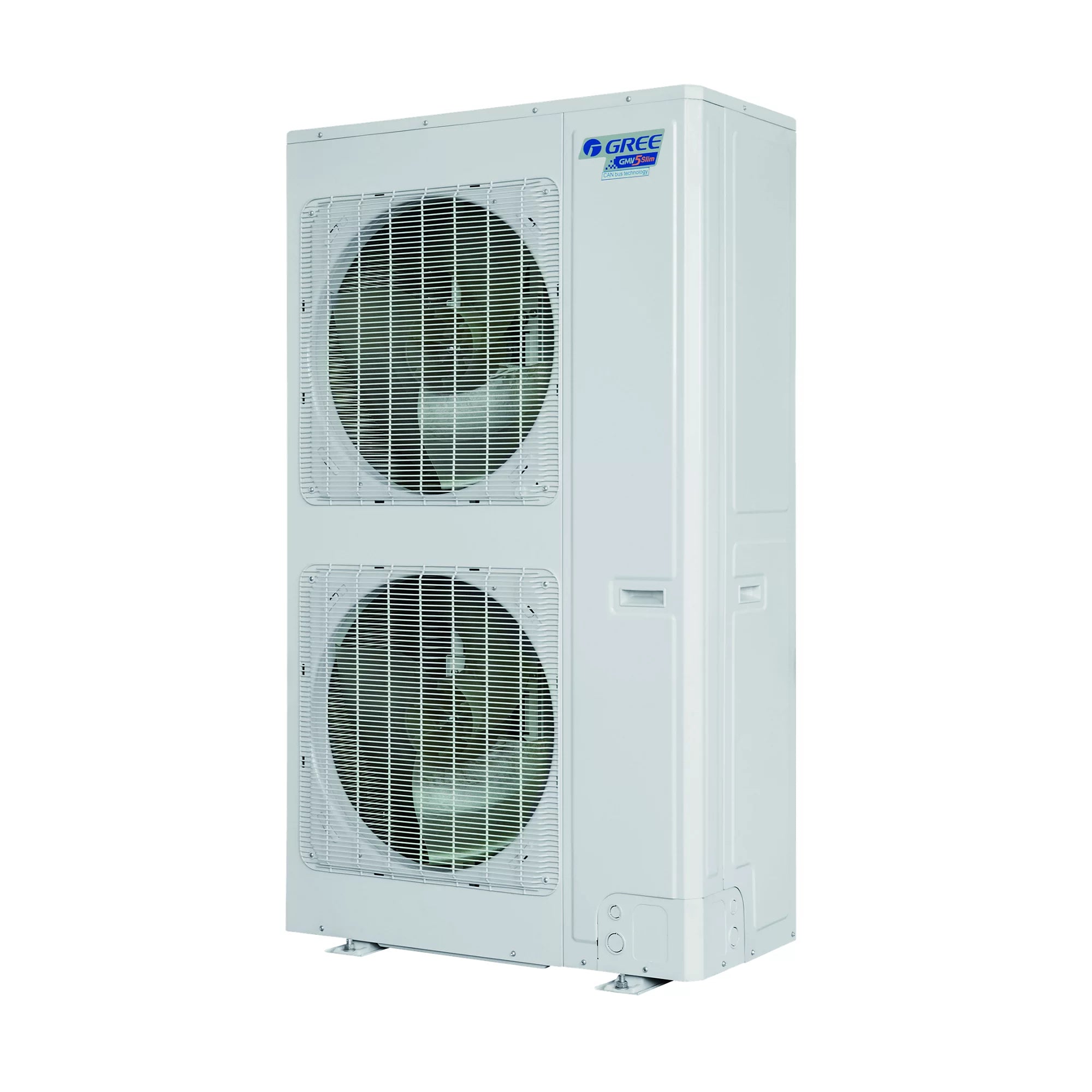

Gree GMV-28WL/C-T(U) Mini HP HZ Outdoor Unit 28K 230V

Product Description

The Gree GMV-28WL/C-T(U) is a Mini HP HZ Outdoor Unit designed for efficient heating and cooling applications. This 2.5-ton heat pump operates on 230 VAC, providing 28,000 BTU cooling capacity and 30,000 BTU heating capacity. It features an 18 SEER and 11 EER rating, making it an Energy Star Rated system. This outdoor condensing unit utilizes R-410A refrigerant for optimal performance.

• Energy Star Rated with 18 SEER and 11 EER for efficient operation.
• Provides 28,000 BTU cooling and 30,000 BTU heating capacity.
• Operates on 230 VAC, single phase, using R-410A refrigerant.

Product Highlights

Compact outdoor heat pump unit with high efficiency and robust performance for various climate conditions.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: GMV-28WL/C-T(U)
• Country of Origin: China

Technical Specifications

• AHRI Usage: Outdoor
• Brand: Gree
• CFM: 2295
• Cooling Capacity: 28000 BTU/h
• Frequency: 60 Hz
• EER: 11
• Energy Star Rated: Yes
• Equipment Type: Heat Pump
• ETL Listed: No
• Heating Capacity: 30000 BTU/h
• High Heat HP: No
• Liquid Line Fitting Type: Flare
• Liquid Line Size (OD): 3/8 inches
• Maximum Piping Height: 98 feet
• Maximum Piping Length: 393.7 feet
• Phase: Single
• Product Family: GMV5 Mini
• Rated Load Amps (RLA): 11.7 A
• Refrigerant Type: R-410A
• Refrigerant Charge: 5.3 lbs
• SEER: 18
• Stage: Single
• Suction Line Fitting Type: Flare
• Suction Line Size (OD): 5/8 inches
• Tonnage: 2.5 tons
• UL Listed: No
• Input Voltage: 230 VAC
• Maximum Overcurrent Protection (MOCP): 30 A
• Compressor Type: Rotary
• Type: Air Cooled Mini Heat Pump
• Sub Type: Outdoor Condensing Unit
