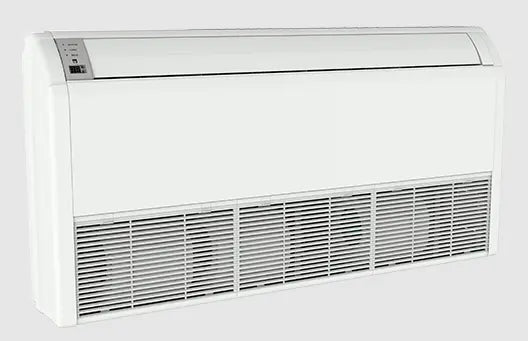

Gree FLR24HP230V1R32AH Floor Ceiling Mini Split Indoor Unit 24000 Btu R32 208 230V

Product Description

The GREE FLR24HP230V1R32AH is a 24,000 BTU floor/ceiling indoor unit for ductless mini split heat pump systems, operating on R-32 refrigerant at 208/230 volts single phase. It delivers both heating and cooling through a compact cabinet that mounts low on the wall in floor-stand position or overhead in ceiling-mount position, making it adaptable to rooms where a standard wall-mount unit is not practical. Cooling capacity is rated at 22,000 BTU/h and heating capacity at 24,000 BTU/h. Airflow ranges from 441 to 706 CFM across seven fan speeds. Licensed HVAC technicians install and commission this unit as part of a matched system.

This indoor unit is designed for residential and light-commercial single-zone ductless applications where flexible placement is required. Typical installations include sunrooms, converted garages, server rooms, floor-level retrofits, and open commercial spaces where ceiling-mount delivery improves air distribution. The unit supports multi-directional air flow with both horizontal and vertical auto-swing, and the 180-degree vertical swing range helps direct conditioned air across the full zone. It is compatible with the XE72-44/E Wi-Fi wired controller and includes a wireless remote with LCD display.

Key Features

• Dual-position installation: floor-stand or ceiling-mount without additional conversion kits
• R-32 refrigerant with AHRI-certified efficiency ratings of 23 SEER2, 13 EER2, and 9.5 HSPF2
• Seven-speed fan control with airflow from 441 to 706 CFM
• Operating temperature range of -20 to 122 degrees F supports year-round use in extreme climates
• Auto Clean, Quiet Mode, Turbo Mode, I Feel function, and Freeze Guard included
• Liquid line 1/4 inch, gas line 5/8 inch; maximum pipe elevation 82 feet
• Wireless remote with LCD display and XE72-44/E Wi-Fi wired controller compatibility included

Compatibility

The FLR24HP230V1R32AH is the 24,000 BTU indoor head from GREE's All Match Floor/Ceiling R32 lineup and is paired with a compatible GREE R-32 outdoor condensing unit as part of a single-zone matched system. Refer to GREE's system documentation and submittal data to confirm the correct outdoor unit pairing for the intended application.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician familiar with R-32 refrigerant handling procedures, as R-32 is a mildly flammable (A2L) refrigerant requiring appropriate precautions. Power down the outdoor unit and disconnect electrical supply at the breaker before any service work on the indoor unit. Interconnecting wire gauge must fall within the 14 to 4 AWG range specified for the line set; consult the submittal data and local electrical code (NEC) for branch circuit sizing. Ensure line set routing and pipe elevation do not exceed the 82-foot maximum rise stated by the manufacturer.

Technical Specifications

• Cooling Capacity: 22,000 BTU/h
• Heating Capacity: 24,000 BTU/h
• Voltage: 208/230 volts, 1-phase, 60 Hz
• Refrigerant Type: R-32
• Efficiency Rating: 23 SEER2 / 13 EER2 / 9.5 HSPF2
• Airflow Range: 441 to 706 CFM
• Fan Speeds: 7
• Sound Level: 37 to 52 dB
• Dehumidification: 4.23 pints per hour
• Liquid Line Size: 1/4 inch
• Gas Line Size: 5/8 inch
• Maximum Pipe Elevation: 82 feet
• Interconnecting Wire: 14 to 4 AWG
• Operating Temperature Range: -20 to 122 degrees F
• Coil Material: Copper tube / Aluminum fin
• Height: 9.25 inches
• Applicable Standard: AHRI
• Included Accessories: Wireless remote with LCD display, XE72-44/E Wi-Fi wired controller

Standard Information

• Brand: GREE
• Manufacturer Part Number: FLR24HP230V1R32AH
