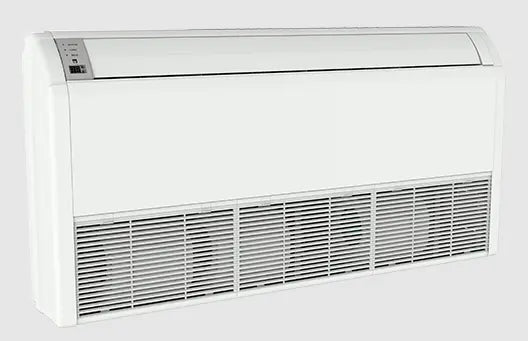

Gree FLR09HP230V1R32AH Floor Ceiling Mini Split Air Handler 9000 Btu/h 230V R32

Product Description

The GREE FLR09HP230V1R32AH is a 9,000 BTU/h floor/ceiling indoor air handler designed for single-zone mini split heat pump systems. It operates on 230V power and uses R32 refrigerant, a lower global-warming-potential refrigerant increasingly specified in modern high-efficiency systems. The unit supports both cooling and heating modes, with a cooling capacity of 9,000 BTU/h and a heating capacity of 9,000 BTU/h. Its dual-mount design allows installation at floor level or ceiling level, giving installers flexibility in tight or unconventional spaces. Licensed HVAC technicians install this unit as the indoor component of a matched mini split system.

This air handler is suited for residential and light commercial applications where a wall-mount cassette is not practical. Floor-level mounting works well in spaces with low ceilings, large glass facades, or radiant-heat floors where wall penetrations are limited. Ceiling mounting provides even air distribution in open-plan rooms, server rooms, or retail spaces. The FLR09HP230V1R32AH is part of GREE's All Match R32 Floor Ceiling series and is intended to pair with a compatible GREE R32 outdoor condensing unit. A wired controller option is available in addition to the included wireless remote with LCD display.

Key Features

• Dual-mount design: installs at floor level or ceiling level for layout flexibility
• R32 refrigerant — lower GWP than R410A, compliant with current efficiency standards
• 9,000 BTU/h cooling and heating capacity on a single indoor unit
• 230V single-phase power supply
• Compatible with wired controller options in addition to wireless remote
• Composite drain pan construction
• Copper tube and aluminum fin indoor coil

Compatibility

The FLR09HP230V1R32AH is an indoor air handler designed for use within GREE's All Match R32 Floor Ceiling mini split system lineup and requires a compatible GREE R32 outdoor unit to form a complete heat pump system. Consult GREE's current All Match R32 matchup guide to confirm outdoor unit pairing before ordering.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician familiar with R32 flammable refrigerant handling procedures and applicable local codes. Before any service or installation work, shut off all electrical power to the system at the disconnect and confirm lockout/tagout procedures are followed. R32 is a mildly flammable refrigerant (A2L classification) — follow GREE's published safety precautions for flammable refrigerant systems, ensure adequate ventilation at the work site, and do not use open-flame leak detection tools. Refer to the GREE FLR09HP230V1R32AH Service Manual for mounting, refrigerant line sizing, and drainage requirements specific to floor versus ceiling installation orientation.

Technical Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 9,000 BTU/h
• Power Supply: 230V
• Refrigerant: R32
• Cooling Operating Range: -20 degrees F to 122 degrees F
• Heating Operating Range: -22 degrees F to 86 degrees F
• Indoor Coil Material: Copper Tube / Aluminum Fin
• Drain Pan: Composite
• Mount Type: Floor or Ceiling
• AHRI Certificate: 214779524

Standard Information

• Brand: GREE
• Manufacturer Part Number: FLR09HP230V1R32AH
