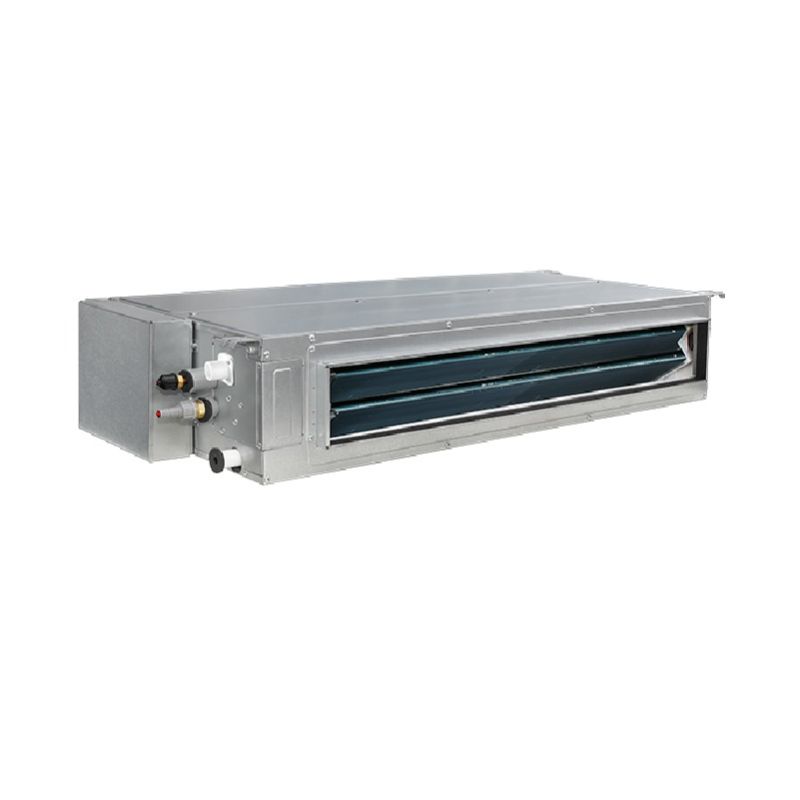

Gree DUC12HP230V1R32AH Slim Duct Concealed Indoor Unit 12000 Btu/h 208 230V R32 Single Zone Heat Pump

Product Description

The GREE DUC12HP230V1R32AH is a 12,000 BTU/h slim duct concealed indoor unit designed for single-zone mini split heat pump systems. Operating on 208/230 volts at 60 hertz and charged with R32 refrigerant, this unit installs inside a ceiling or wall cavity and connects to a compatible outdoor inverter condenser. It delivers both cooling and heating capacity at 12,000 BTU/h, making it a compact, year-round climate solution. Licensed HVAC technicians install and commission this unit as part of a complete mini split system. The slim duct profile keeps the air handler hidden from occupied space while allowing low-static ducted air distribution to one or more supply registers.

This indoor unit is suited for residential and light commercial single-zone applications where a concealed, ducted solution is preferred over a wall-mounted or cassette-style terminal. Typical installations include conditioned rooms where aesthetics or architectural constraints require a fully hidden air handler. The unit pairs with a compatible GREE All Match outdoor inverter unit. The wired controller model referenced in documentation is the XE72-44/E. Installation in ceiling plenum or wall chase is supported by the slim duct form factor, and return air ducting is field-configured per the service manual.

Key Features

• 12,000 BTU/h cooling and heating capacity for single-zone coverage
• R32 refrigerant with lower global warming potential compared to R410A
• Slim duct profile allows fully concealed ceiling or wall installation
• 208/230-volt, single-phase, 60 Hz power input
• DC inverter technology for variable-speed operation and efficiency
• AHRI certified performance — certificate 215415562 (Vireo R32) and 215415567

Compatibility

Designed for use with compatible GREE All Match single-zone outdoor inverter condensers in R32 mini split heat pump systems. Compatible wired controller referenced in documentation: XE72-44/E. Verify outdoor unit compatibility against GREE All Match pairing tables before installation.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician; R32 is an A2L mildly flammable refrigerant and requires appropriate handling procedures and tools. Power down and lock out the outdoor unit before making any electrical or refrigerant connections. Follow local mechanical and electrical codes, including NEC requirements for branch circuit sizing — minimum circuit ampacity is 11 amps and maximum overcurrent protection is 15 amps. Consult the GREE service manual for return air duct layout, condensate drain routing, and low-voltage control wiring before startup.

Technical Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• Voltage: 208/230 volts
• Phase: Single-phase
• Frequency: 60 Hz
• Refrigerant: R32
• Cooling Current: 6.56 amps
• Heating Current: 8.53 amps
• Minimum Circuit Ampacity (MCA): 11 amps
• Maximum Overcurrent Protection (MOCP): 15 amps
• Fan Motor FLA: 0.75 amps
• Fuse Rating: 5 amps
• Unit Type: Indoor only (requires compatible outdoor unit)
• Installation Style: Slim duct, ceiling or wall concealed
• AHRI Certificate: 215415562, 215415567

Standard Information

• Brand: GREE
• Manufacturer Part Number: DUC12HP230V1R32AH
