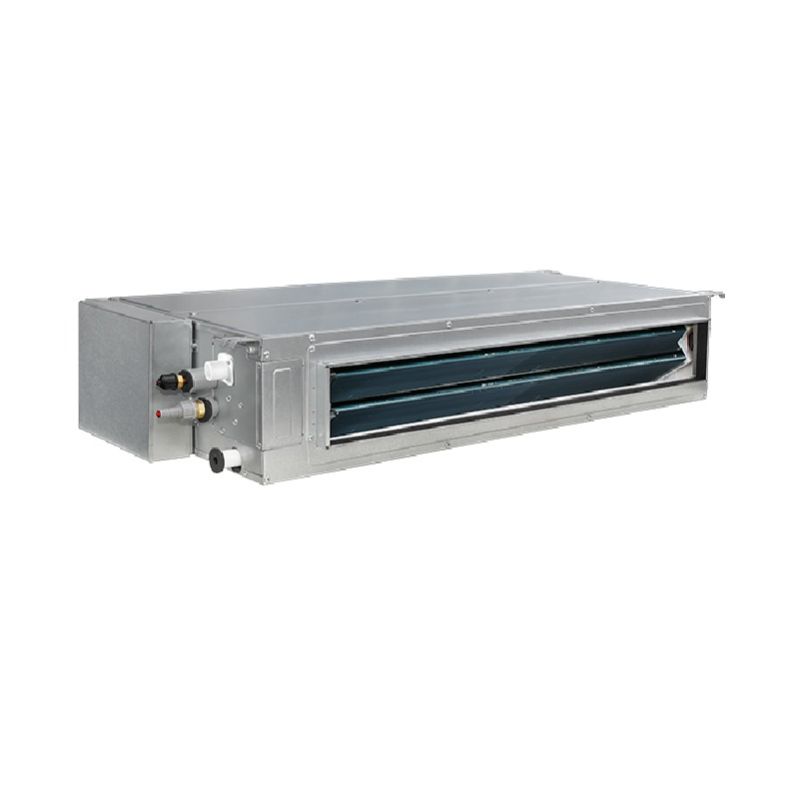

Gree DUC09HP230V1R32AH Concealed Slim Duct Mini Split Indoor Unit 9000 Btu/h R32 230V

Product Description

The GREE DUC09HP230V1R32AH is a concealed slim duct indoor air handler designed for single-zone mini split heat pump systems. Operating on R32 refrigerant at 230 volts, it delivers 9,000 BTU/h of cooling capacity and up to 10,500 BTU/h of rated heating capacity at 47 degrees F. The unit achieves up to 22.3 SEER2, 14.3 EER2, and 9.5 HSPF2, making it one of the more efficient ducted indoor units in its class. A DC inverter compressor on the paired outdoor unit modulates output to match load, reducing energy use and temperature swings. Licensed HVAC technicians install and commission this unit as part of a matched split system.

The DUC09HP230V1R32AH is designed for residential and light-commercial concealed duct applications where a traditional wall-mount or ceiling cassette is not suitable. The slim-profile air handler installs above a drop ceiling or inside a confined chase, connecting to short duct runs that distribute conditioned air through grilles. It is part of the GREE All Match Slim Duct R32 product line and is intended to be paired with a compatible GREE R32 outdoor condensing unit. Airflow is adjustable from 188 to 342 CFM to suit the duct layout of the space. The unit operates across a wide temperature range: -20 degrees F to 122 degrees F in cooling mode and -22 degrees F to 86 degrees F in heating mode.

Key Features

• 9,000 BTU/h cooling capacity with up to 10,500 BTU/h rated heating capacity at 47 degrees F
• Up to 22.3 SEER2 / 14.3 EER2 / 9.5 HSPF2 energy efficiency ratings per AHRI standards
• R32 refrigerant with low global warming potential compared to R410A
• Variable airflow from 188 to 342 CFM for flexible duct system design
• Low sound output: 25 to 38 dB(A) for quiet concealed operation
• Compatible with XE72-44/E Wi-Fi wired controller and LCD remote control included
• Copper tube and aluminum fin coil construction

Compatibility

The DUC09HP230V1R32AH is an indoor unit within the GREE All Match Slim Duct R32 product line and is designed to be paired with a compatible GREE R32 outdoor unit. Maximum pipe elevation between indoor and outdoor units is 82 feet. Line set connections are 1/4 inch liquid line and 3/8 inch gas line. Interconnecting wire is 14 to 4 AWG. Consult the GREE submittal data and the specific outdoor unit documentation to confirm matched-system compatibility before ordering.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician qualified to handle R32 refrigerant, which is an A2L mildly flammable refrigerant requiring appropriate safety precautions and compatible tools. De-energize all circuits and isolate the refrigerant system before servicing. Refer to the GREE All Match Slim Duct R32 installation manual and applicable local mechanical codes for duct connection requirements, clearances, and electrical rough-in specifications. Low-voltage control wiring between the indoor and outdoor units must be run per the wiring diagram in the service manual.

Technical Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity (Rated at 47 degrees F): 10,500 BTU/h
• Heating Capacity Range: 2,900 to 15,000 BTU/h
• SEER2: Up to 22.3
• EER2: Up to 14.3
• HSPF2: Up to 9.5
• Voltage: 230 volts
• Refrigerant: R32
• Airflow Range: 188 to 342 CFM
• Sound Level: 25 to 38 dB(A)
• Dehumidification: 1.69 pints per hour
• Liquid Line Size: 1/4 inch
• Gas Line Size: 3/8 inch
• Maximum Pipe Elevation: 82 feet
• Interconnecting Wire: 14 to 4 AWG
• Cooling Operating Range: -20 degrees F to 122 degrees F
• Heating Operating Range: -22 degrees F to 86 degrees F
• Coil Material: Copper tube / Aluminum fin
• Applicable Standard: AHRI

Standard Information

• Brand: GREE
• Manufacturer Part Number: DUC09HP230V1R32AH
