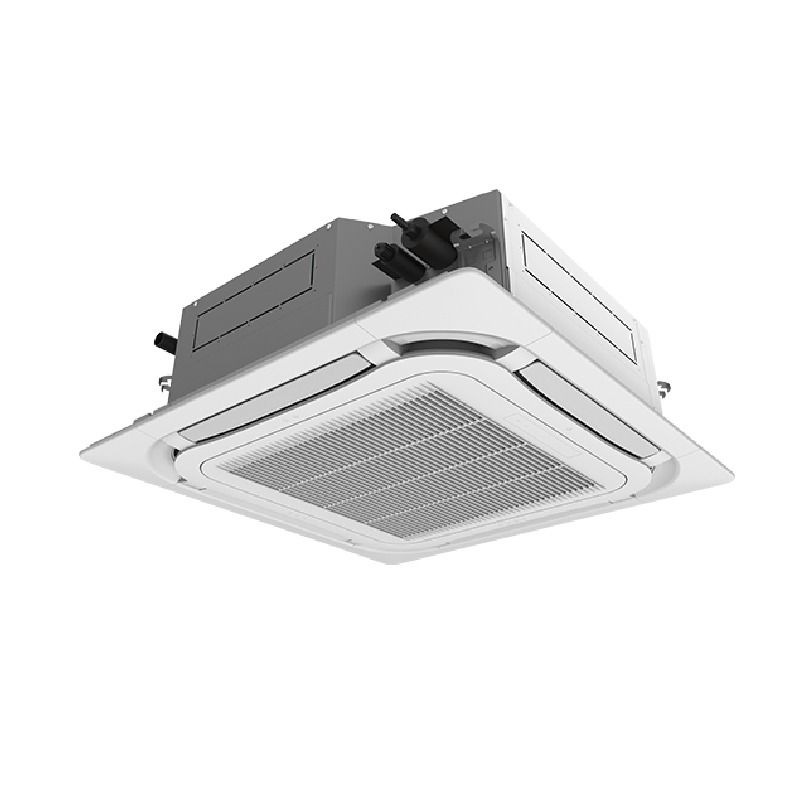

Gree CAS24HP230V1R32AH 360 Ceiling Cassette Mini Split Indoor Unit 24000 Btu/h R32 230V

Product Description

The GREE CAS24HP230V1R32AH is a 24,000 BTU/h ceiling cassette indoor unit designed for single-zone mini split heat pump systems. It operates on R32 refrigerant at 208-230V/1/60Hz and delivers 360-degree airflow from a flush-mount ceiling cassette configuration. Rated heating capacity ranges from 3,920 to 32,400 BTU/h depending on conditions, with a rated capacity of 24,000 BTU/h at 47 degrees F. Maximum airflow is 560 CFM. The unit ships at 63.9 pounds and has a depth of approximately 9.46 inches. Licensed HVAC technicians install this unit as part of a matched mini split system with a compatible outdoor condensing unit.

This indoor unit is suited for commercial and residential applications where ceiling-level air distribution is required, such as open-plan offices, retail spaces, restaurants, and server rooms. The cassette format installs into a standard dropped ceiling grid and delivers conditioned air in all four directions simultaneously, improving coverage in square or rectangular zones. It supports low ambient cooling down to 0 degrees F and low ambient heating down to -13 degrees F, making it viable in climates with significant seasonal temperature swings. Maximum interconnecting pipe length is 131 feet. The unit carries AHRI Certificate 215415516 under the Vireo R32 system designation.

Key Features

• 360-degree airflow from ceiling cassette configuration for uniform zone coverage
• R32 refrigerant with DC inverter technology for variable-capacity operation
• Heating capacity range of 3,920 to 32,400 BTU/h for wide modulation
• Low ambient cooling to 0 degrees F and heating to -13 degrees F
• Maximum airflow of 560 CFM with up to 131-foot pipe run
• Wi-Fi included with wired controller options available
• Copper tube and aluminum fin indoor coil construction

Compatibility

The CAS24HP230V1R32AH is an indoor unit in the GREE All Match 360 Ceiling Cassette R32 series and is designed for use with a compatible GREE R32 outdoor condensing unit. AHRI Certificate 215415516 applies to the matched Vireo R32 system. Consult GREE system documentation to confirm outdoor unit pairing before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle R32 refrigerant. Power down the circuit at the breaker and recover or isolate refrigerant per EPA Section 608 requirements before any service work. The cassette panel installs into a standard ceiling grid opening; refer to GREE submittal data for exact rough-in dimensions and drain line slope requirements. Low-voltage control wiring between indoor and outdoor units must follow the manufacturer wiring diagram and comply with NEC Article 440.

Technical Specifications

• Cooling and Heating Capacity: 24,000 BTU/h rated
• Capacity Range: 3,920 to 32,400 BTU/h
• Rated Heating Capacity at 47 degrees F: 24,000 BTU/h
• Voltage: 208-230V / 1-phase / 60Hz
• Refrigerant: R32
• Max Airflow: 560 CFM
• Max Pipe Length: 131 feet
• Unit Depth: 9.46 inches
• Weight: 63.9 pounds
• Coil Construction: Copper tube with aluminum fin
• Low Ambient Cooling Range: 0 degrees F to 118 degrees F
• Low Ambient Heating Range: -13 degrees F to 75 degrees F
• AHRI Certificate: 215415516 (Vireo R32)

Standard Information

• Brand: GREE
• Manufacturer Part Number: CAS24HP230V1R32AH
