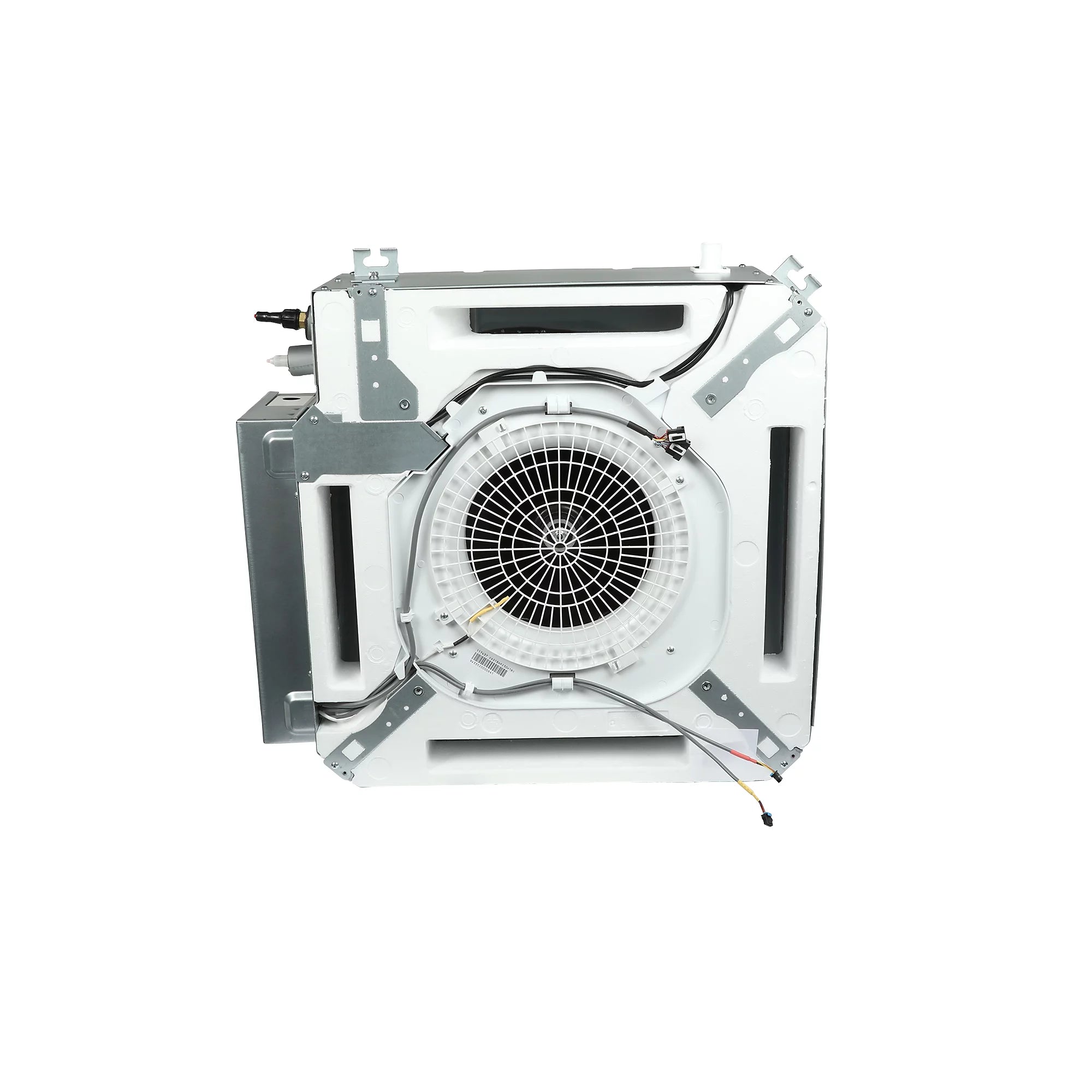

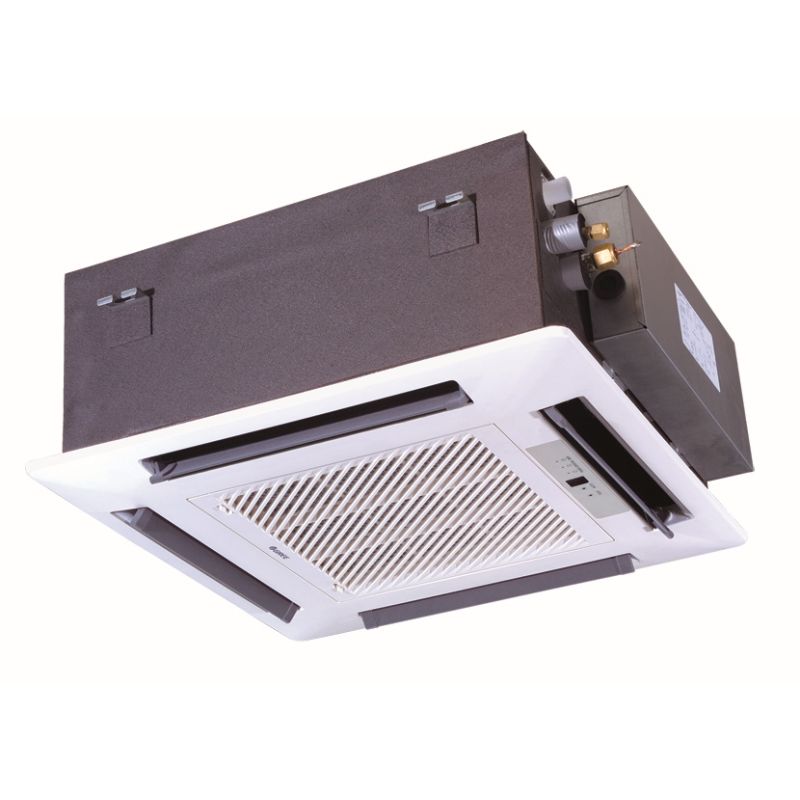

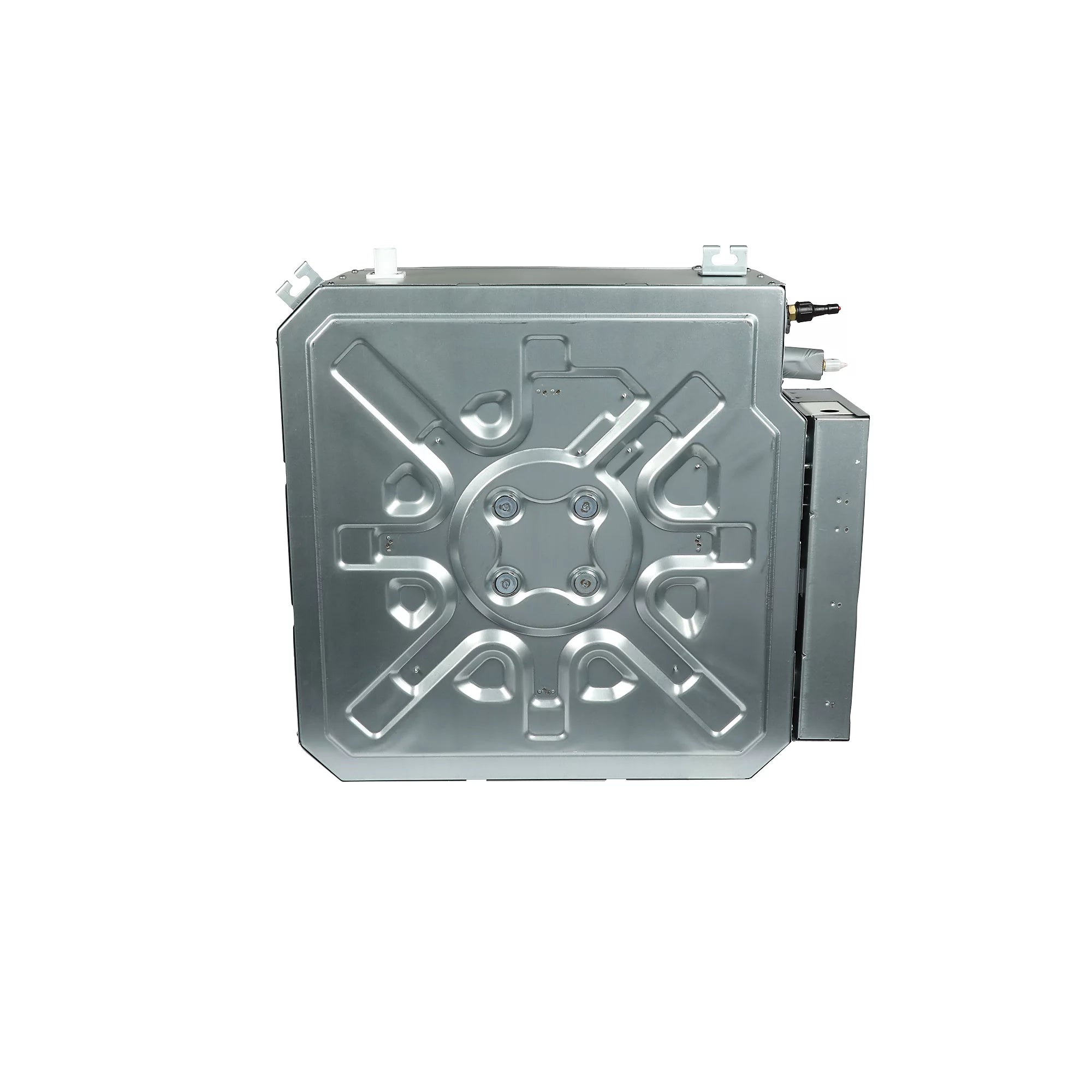

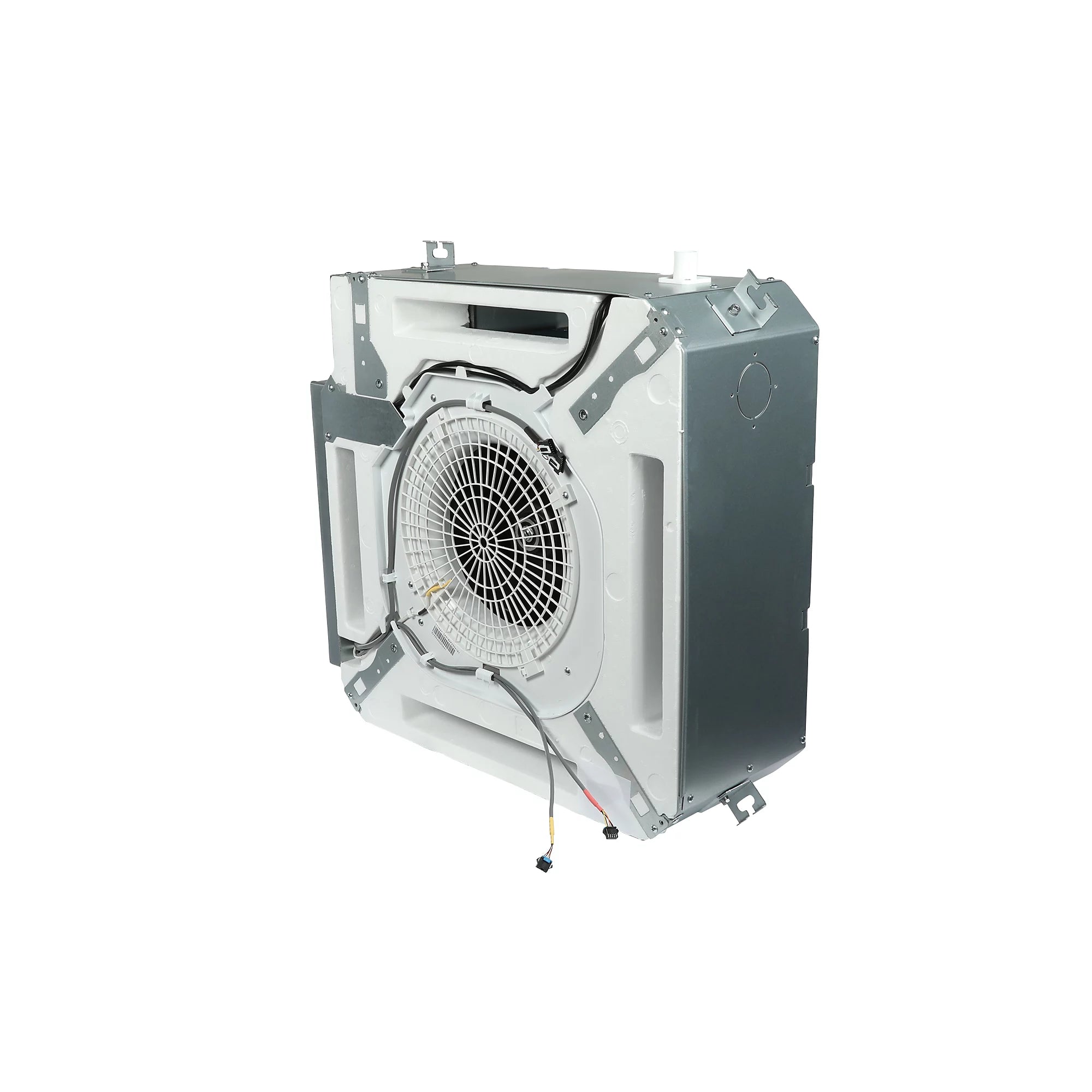

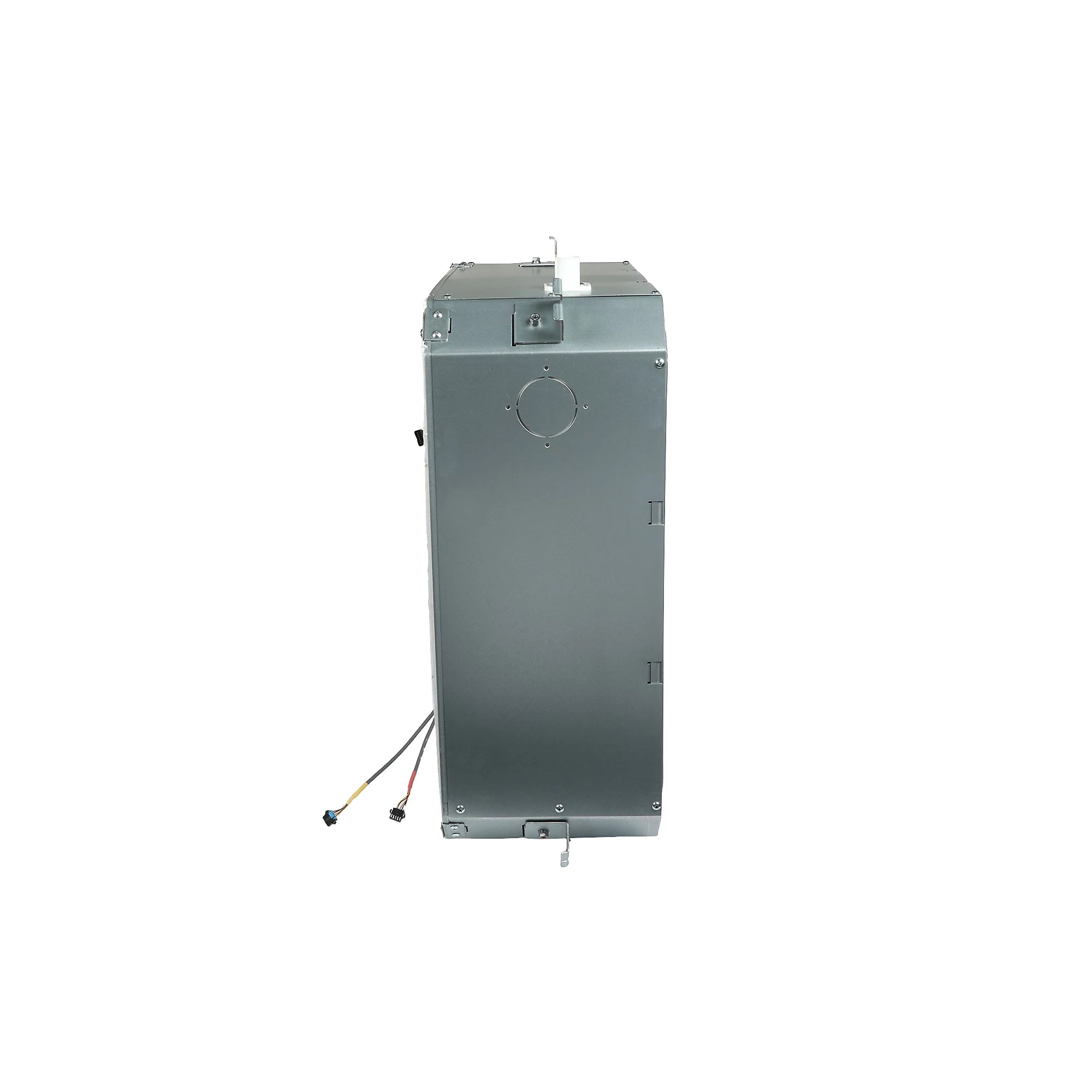

Gree CAS18HP230V1BC B Style Cassette 18000 BTU 230V Indoor Unit CAS18HP230V1AC

Product Description

The Gree CAS18HP230V1BC is an 18,000 BTU B Style Cassette Indoor Unit designed for heating and cooling applications. This heat pump unit operates on 208-230 VAC, single phase, 60 Hz power, utilizing R-410A refrigerant. It provides multi-directional airflow for even temperature distribution in rooms up to 800 sq ft. The unit features a low-profile, flush-mounted ceiling cassette design, suitable for residential and light commercial environments.

• Includes a remote control for temperature and settings adjustment.
• Provides both heating and cooling capabilities with an 18,000 BTU capacity.
• Features a low-profile, flush-mounted ceiling cassette design for discreet installation.

Product Highlights

Quiet operation with multi-directional airflow for even temperature distribution, compatible with multi-zone outdoor condensers.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: CAS18HP230V1BC
• Country of Origin: China

Technical Specifications

• AHRI Usage: Indoor AHU
• Blower Motor Type: PSC (Permanent Split Capacitor)
• CFM: 265-418
• Cooling Capacity: 18000 BTU/h
• Frequency: 60 Hz
• EER: 10.25
• Energy Star Rated: Yes
• Equipment Type: Heat Pump
• ETL Listed: No
• Heating Capacity: 18000 BTU/h
• Liquid Line Fitting Type: Flare
• Liquid Line Size: 1/4"
• Mounting Type: Ceiling Cassette
• Phase: Single
• Product Family: Vireo Gen3
• Refrigerant Type: R-410A
• Remote Control Included: Yes
• SEER Rating: 20
• Sound Level (dBA): 35-47
• Suction Line Fitting Type: Flare
• Suction Line Size: 1/2"
• UL Listed: No
• Input Voltage: 208-230 VAC
• Multi Zone: No
• Replaces MPN: CAS18HP230V1AC
• Drain Size: 1-1/4"
• Tonnage: 1.5 Ton
• Unit Type: Indoor Unit
• Compatibility: Current Multi & 3Vir Models
• Installation Location: Indoor
• AHRI Certified: Yes
• Product Type: Mini-Split
• Fan Speed: 4 Speed
• Use: Heating and A/C
