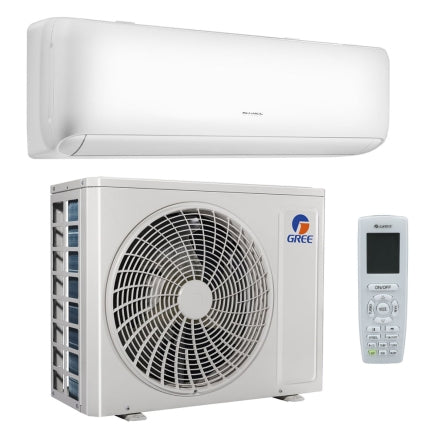

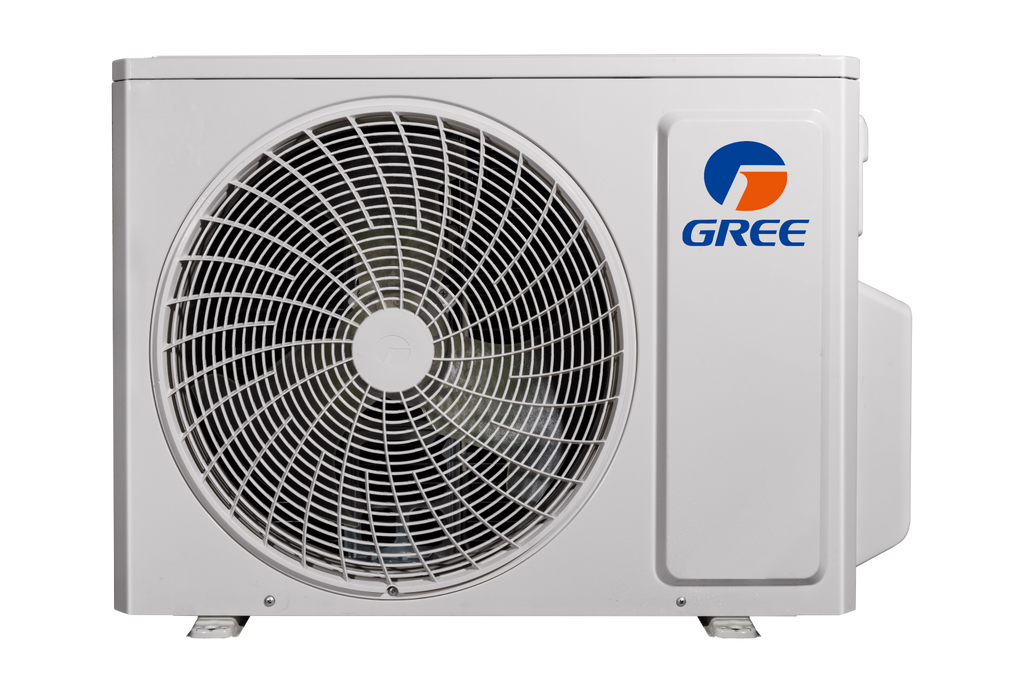

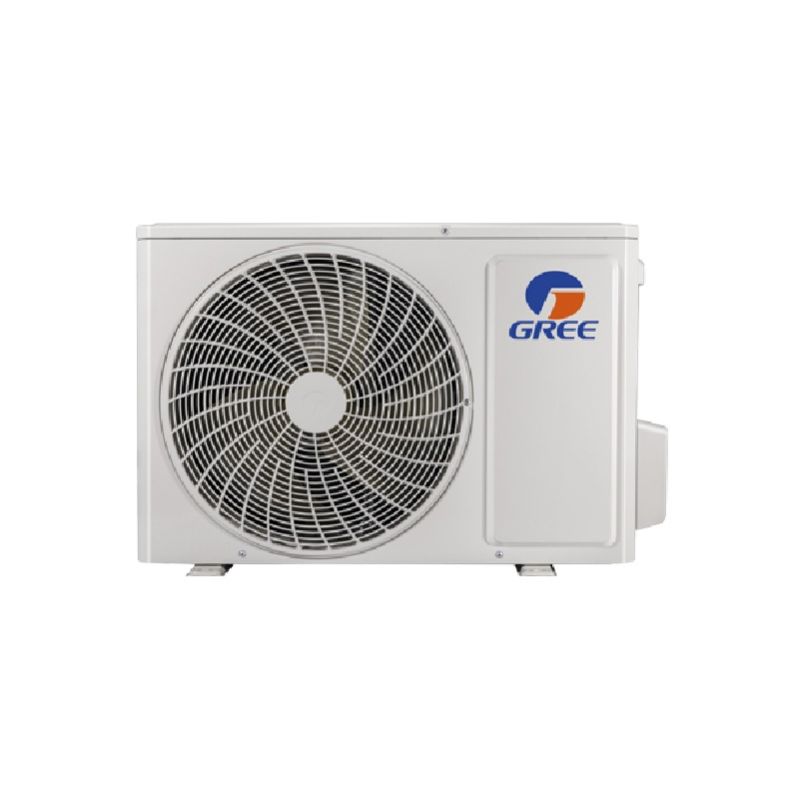

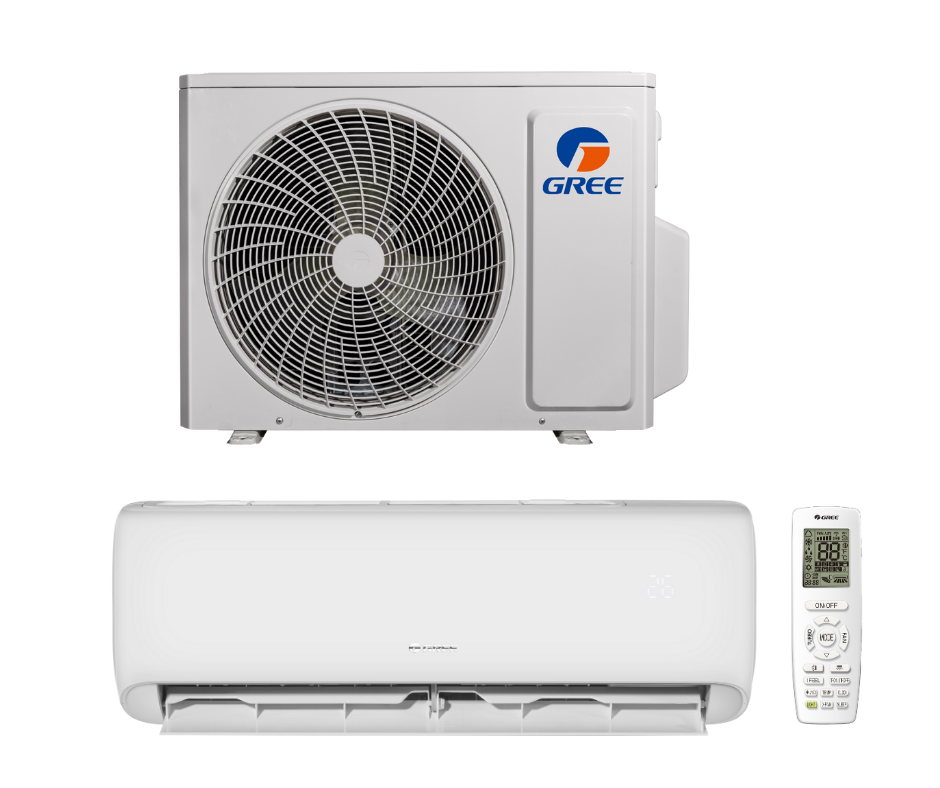

Gree 4LIV12HP230 Livo Single Zone Mini Split Heat Pump Condenser 12,000 BTU REPLACES 4LIV12HP230V1AO

Product Description

The GREE 4LIV12HP230 Livo Single Zone Heat Pump Condenser delivers heating and cooling. Designed to withstand the elements, this outdoor unit is the heart of your single-zone system, ensuring year-round comfort. It uses R410A refrigerant and features high-efficiency DC inverter technology, adjusting its power output to maintain temperature control while minimizing energy consumption.

• Energy efficient with DC inverter technology for precise temperature control.
• Eco-friendly R410A refrigerant for reduced environmental impact.
• Durable construction with composite drain pan and Blue Fin coil.

Product Highlights

This Gree Livo heat pump condenser provides efficient and reliable climate control for residential and commercial environments. Ideal for single-zone applications, it ensures year-round comfort with its robust design and eco-friendly refrigerant.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: 4LIV12HP230

Technical Specifications

• SKU: 4LIV12HP230V1AO
• Brand/Manufacturer: Gree
• Replaces: 4LIV12HP230V1AO
• Cooling BTU: 12,000
• Heating BTU: 12,000
• Decibel Level (dBA): 52
• Refrigerant: R-410a
• SEER2 (Efficiency): 17.5
• Compressor Type: Rotary
• Liquid Line: 1/4"
• Suction Line: 3/8"
• Electrical: 208-230V | 60 HZ | 1 Phase
• BTU/Tonnage: 12,000 BTU/1 Ton
• Zone Compatibility: Single Zone

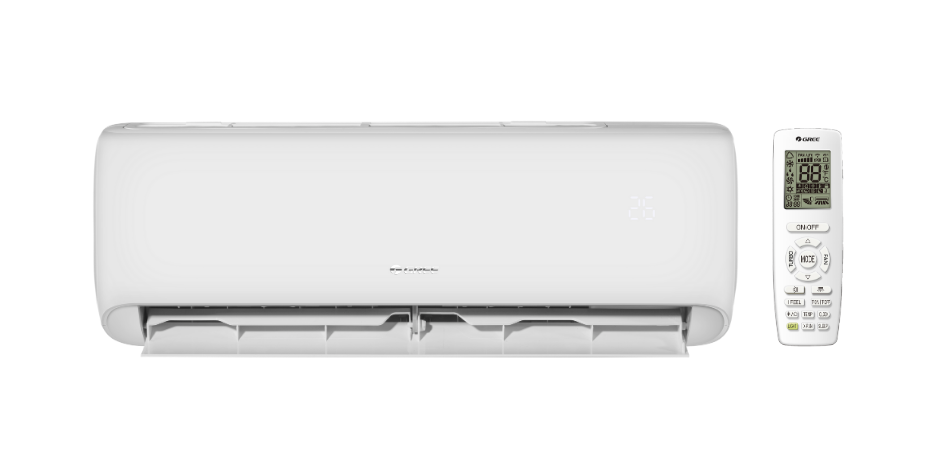

• High Wall AHU Indoor Model: 4LIV12HP230V1AH
• CU Outdoor Model: 4LIV12HP230V1AO
• Size Nominal Tons: 1
• Btu/Hr: 12000
• SEER2 / EER2: 17.5 / 8.7
• Min/Max Cooling Range BTU/Hr: 2388 / 13307
• HSPF2/COP (47° F) W/W: 8.5 / 3.5
• Min/Max Heating Range BTU/HR: 2388 / 15013
• AHRI Certificate Number: 210278961
• MCA / MOCP - Fuse Rating (Amp): 11 / 15 AMPS
• Power Supply: 208-230/1/60
• Model: 4LIV12HP230V1AO,4LIV12HP230V1AH
• UPC: 841999158354
• AHRI Number: 210278961
• Bundle Avg Coverage Area: 500 - 600 Sq Ft
• Bundle Cooling Capacity: 1 Ton
• EER2: 8.7
• Heat Pump Efficiency (HSPF2): 8.5
• Series: Livo
• Zones: 1
• Popular Applications: Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
• Region Compatibility: Nationwide
• Product Height (in): 21.84
• Avg Coverage Area: 500 - 600 Sq Ft
• Product Length (in): 28.81
• Compressor: Two Stage
• Product Width (in): 12.98
• Cooling Capacity: 1 Ton
• Electrical Phase: 1-Phase
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Max Overcurrent Protection: 15 amps
• Primary Heating Capacity: 10,001 - 15,000 BTU
• Cooling Efficiency (SEER2): 17.2
• Suction Line Size: 3/8 inch
• System Application Type: Ductless Split Systems
