GREE 36000 BTU R-32 21 SEER2 4-Zone Ductless Mini Split Heat Pump System - 9K+9K+9K+24K

Description

This comprehensive HVAC bundle includes everything you need for efficient heating and cooling in both residential and commercial spaces. The GREE MUL36HP230V1R32AO heat pump condenser serves as the powerhouse of the system, providing a robust 36,000 BTU capacity and the ability to support multiple indoor units. Complementing this are three GREE ceiling cassette air handlers (two 9K BTU and one 24K BTU), which ensure optimal air distribution with their four-way discharge design. The bundle also features two 8-way grilles, enhancing airflow management and comfort throughout your space. Together, these components create a versatile and efficient climate control solution.

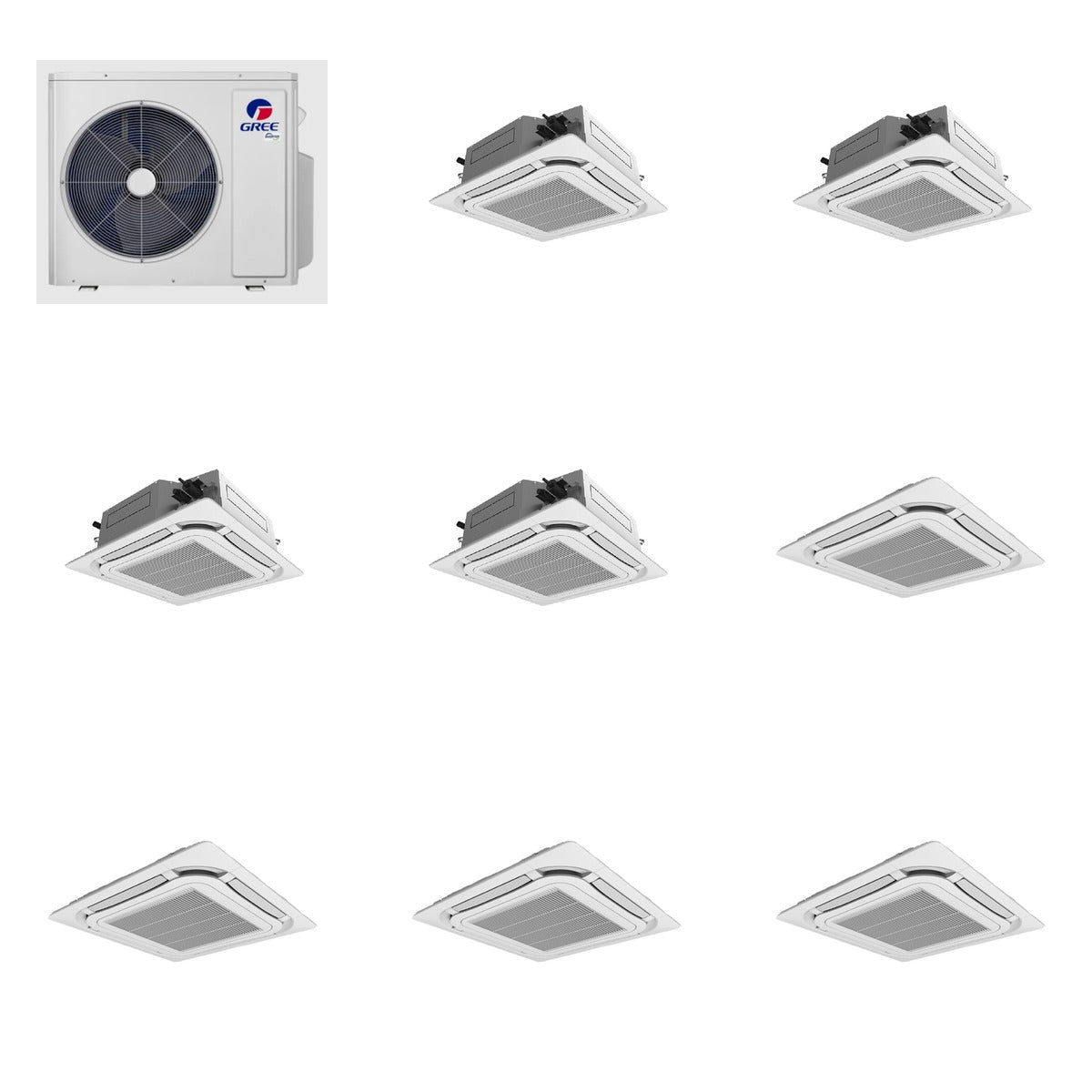

What's Included

• GREE MUL36HP230V1R32AO - 36K BTU Multi21+ R32 Mini-Split Heat Pump Condenser (Qty x1)

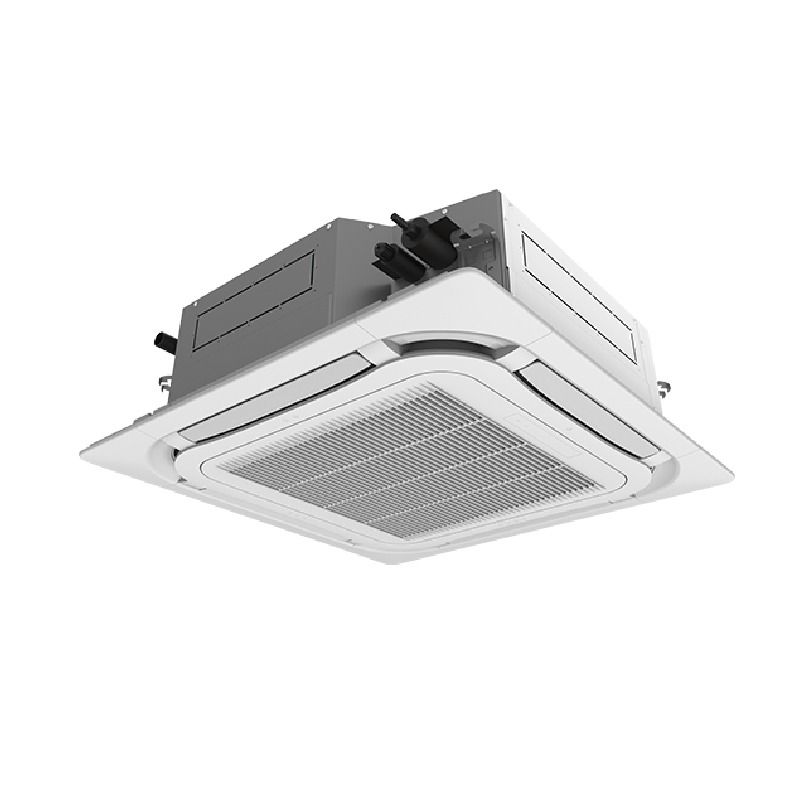

• GREE CAS09HP230V1R32AH - 9K BTU 360 Degree Ceiling Cassette Air Handler (Qty x3)
• GREE CAS24HP230V1R32AH - 24K BTU 360 Degree R32 Ceiling Cassette Air Handler (Qty x1)
• GREE GREETF06 - 8-Way Grille for 360 Degree Cassette Air Handlers up to 36K BTU (Qty x1)
• GREE GREETF05 - 8-Way Grille for 360 Degree Cassette Air Handlers up to 18K BTU (Qty x3)

Key Details

• Weight of Bundle: 385.8 lb (GREE 176.4 lb + Gree 112.5 lb + Gree 63.9 lb + GREE 13.2 lb + GREE 19.8 lb)
• Cooling Capacity: 40,900 BTU (Condenser), 14,100 BTU (9K Air Handler), 26,500 BTU (24K Air Handler)
• Heating Capacity: 44,300 BTU (Condenser), 15,500 BTU (9K Air Handler), 33,000 BTU (24K Air Handler)
• Voltage: 230V
• Decibel Rating: 63 dBA (Condenser), 40 dBA (9K Air Handler), 45 dBA (24K Air Handler)
• Dimensions: 40.16" W x 32.52" H x 16.81" D (Condenser), 22.44" W x 10.44" H x 22.44" D (9K Air Handler), 33.08" W x 9.45" H x 33.08" D (24K Air Handler)
• Weight: 176.4 lb (Condenser), 37.5 lb (9K Air Handler), 63.9 lb (24K Air Handler)

Use & Compatibility

This bundle is ideal for both residential and commercial applications, providing efficient heating and cooling solutions. The GREE heat pump condenser is compatible with the included ceiling cassette air handlers, allowing for seamless integration and optimal performance across multiple zones.
