GREE 36000 BTU R-32 21 SEER2 3-Zone Ductless Mini Split Heat Pump System - 9K+12K+18K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. The GREE Multi21+ system includes a powerful 36K BTU condenser that supports multiple indoor units, ensuring optimal climate control across various zones. The accompanying ceiling cassette air handlers, available in 9K, 12K, and 18K BTU capacities, offer versatile installation options and advanced features like automatic voltage adaptation and quiet operation. With the addition of the eight-way grille, this bundle guarantees superior airflow and comfort in any environment.

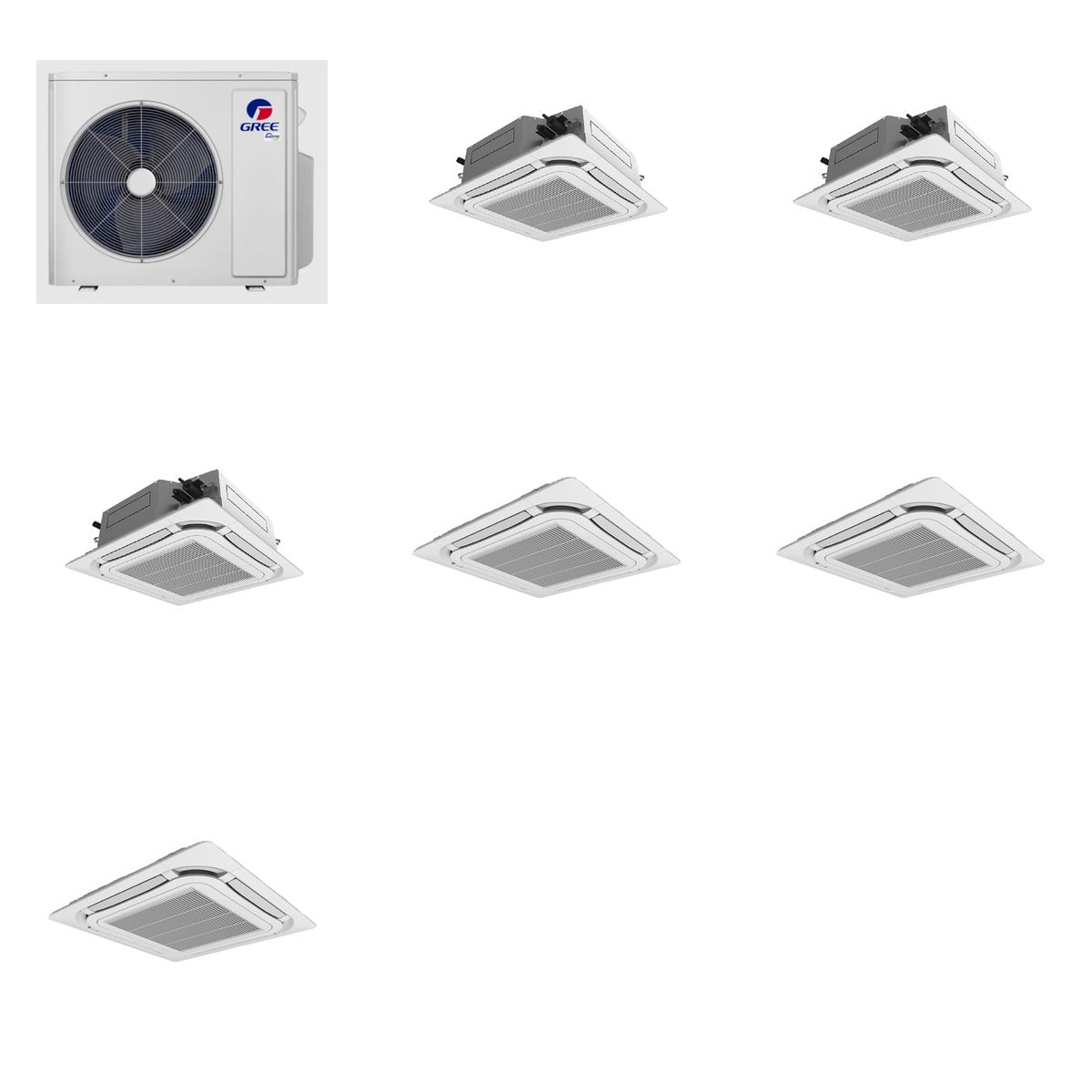

What's Included

• GREE MUL36HP230V1R32AO - 36K BTU Multi21+ R32 Mini-Split Heat Pump Condenser (Qty x1)

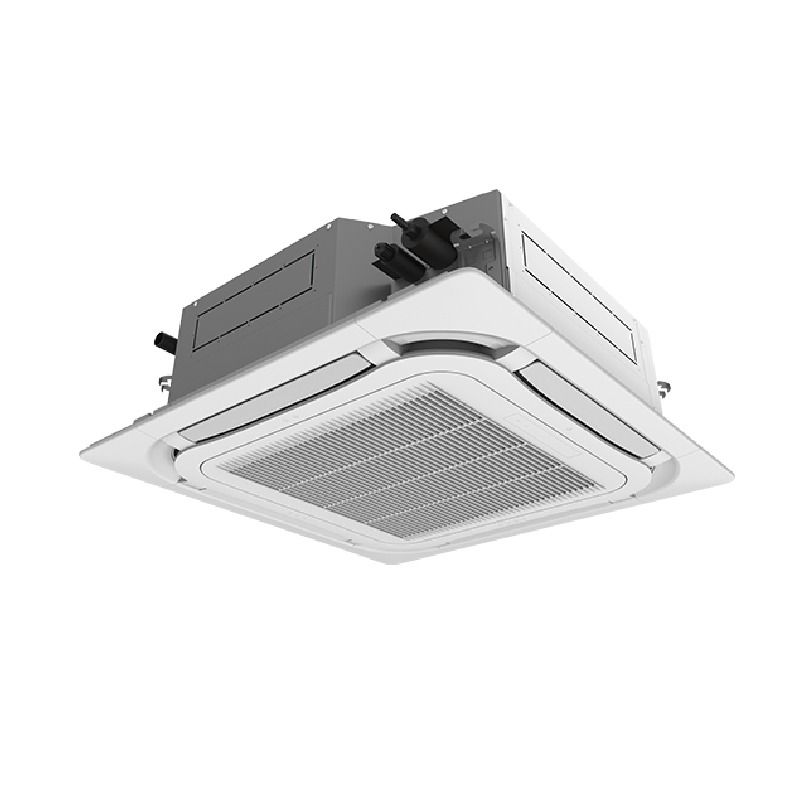

• GREE CAS09HP230V1R32AH - 9K BTU 360 Degree Ceiling Cassette Air Handler (Qty x1)
• GREE CAS12HP230V1R32AH - 12K BTU Ceiling Cassette Air Handler (Qty x1)
• GREE CAS18HP230V1R32AH - 18K BTU 360 Degree Ceiling Cassette Air Handler (Qty x1)
• GREE GREETF05 - 8-Way Grille for 360 Degree Cassette Air Handlers up to 18K BTU (Qty x3)

Key Details

• Weight of Bundle: 308.7 lb (GREE 176.4 lb + Gree 37.5 lb + Gree 37.5 lb + Gree 37.5 lb + GREE 19.8 lb)
• Cooling Capacity: 40,900 BTU (Condenser), 14,100 BTU (9K Air Handler), 14,100 BTU (12K Air Handler), 23,200 BTU (18K Air Handler)
• Heating Capacity: 44,300 BTU (Condenser), 15,500 BTU (9K Air Handler), 15,500 BTU (12K Air Handler), 23,500 BTU (18K Air Handler)
• Voltage: 230V
• Decibel Ratings: 63 dBA (Condenser), 40 dBA (9K & 12K Air Handlers), 44 dBA (18K Air Handler)
• Dimensions: 40 5/32 in W x 32 33/64 in H x 16 13/16 in D (Condenser), 22 7/16 in W x 10 7/16 in H x 22 7/16 in D (Air Handlers)
• Weight: 176.4 lb (Condenser), 37.5 lb (Air Handlers)
• Material: Aluminum fins, copper tube coils (Air Handlers)

Use & Compatibility

This bundle is ideal for creating a complete heating and cooling solution in various environments. The GREE Multi21+ system is compatible with multiple indoor units, allowing for customized climate control in different zones. The ceiling cassette air handlers are perfect for unobtrusive installation in ceilings, making them suitable for both residential and commercial applications.
