GREE 24000 BTU R-32 21 SEER2 3-Zone Ductless Mini Split Heat Pump System - 9K+12K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the GREE MUL24HP230V1R32AO Mini-Split Heat Pump Condenser, this bundle ensures powerful performance with a cooling capacity of 31,400 BTU and a heating capacity that operates effectively in extreme temperatures. Complementing this condenser are three ceiling cassette air handlers: the GREE CAS09HP230V1R32AH and two GREE CAS12HP230V1R32AH units, which deliver balanced airflow and customizable comfort. The inclusion of the GREE GREETF05 eight-way grille enhances air distribution, making this bundle an ideal choice for maximizing climate control efficiency.

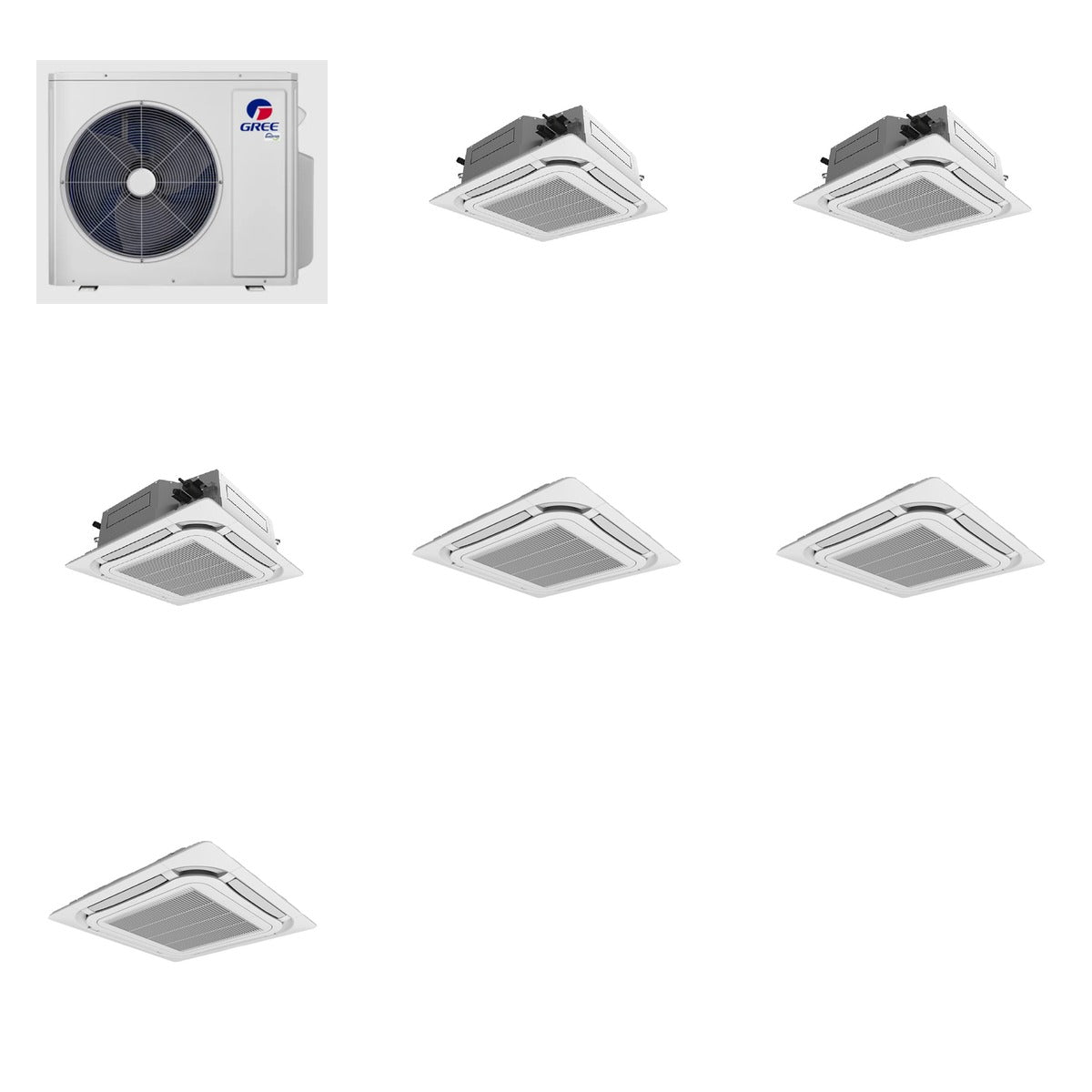

What's Included

• GREE MUL24HP230V1R32AO - GREE 24K BTU Multi21+ R32 Mini-Split Heat Pump Condenser (Qty x1)

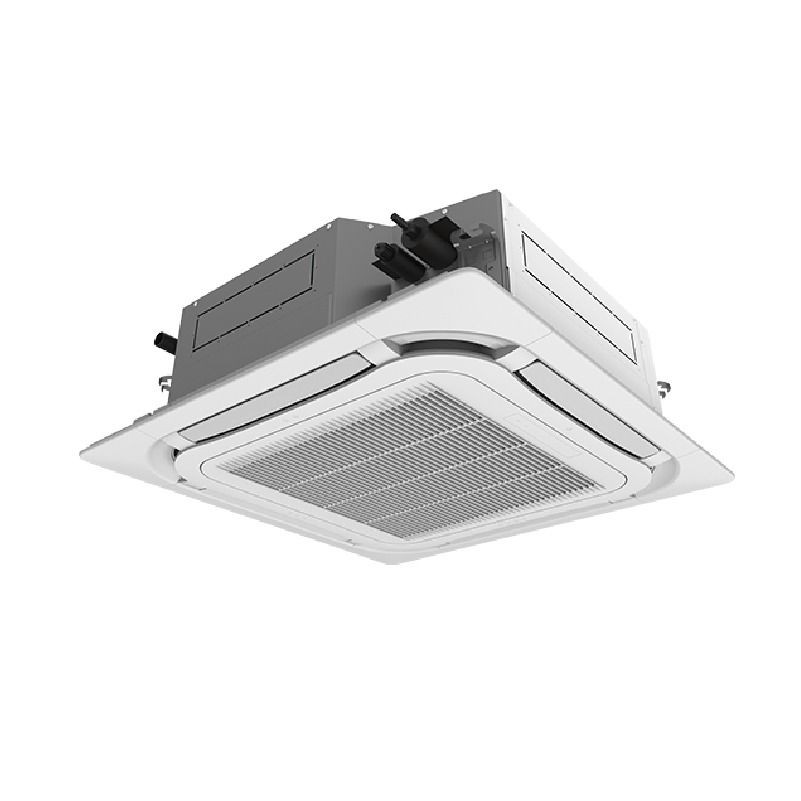

• GREE CAS09HP230V1R32AH - Gree 9K BTU 360 Degree Ceiling Cassette Air Handler (Qty x1)
• GREE CAS12HP230V1R32AH - Gree 12K BTU Ceiling Cassette Air Handler (Qty x2)
• GREE GREETF05 - GREE 8-Way Grille for 360 Degree Cassette Air Handlers up to 18K BTU (Qty x3)

Key Details

• Weight of Bundle: 244.8 lb (GREE 112.5 lb + Gree 37.5 lb + Gree 75 lb + GREE 19.8 lb)
• Cooling Capacity: 31,400 BTU
• Heating Capacity: 15,500 BTU
• Voltage: 230V
• Decibel Rating: 40 dBA (air handlers), 58 dBA (condenser)
• Dimensions (Condenser): 37 61/64 in W x 25 63/64 in H x 15 53/64 in D
• Dimensions (Air Handlers): 22 7/16 in W x 10 7/16 in H x 22 7/16 in D
• Material: Aluminum fins and copper tube coils
• Zone Capacity: 3 (condenser), 5 (air handlers)
• Refrigerant: R32

Use & Compatibility

This bundle is ideal for heating and cooling applications in various environments, including homes and commercial spaces. The GREE Mini-Split heat pump condenser is compatible with the included ceiling cassette air handlers, providing a versatile solution for efficient climate control. The eight-way grille enhances airflow, making it suitable for rooms serviced by GREE cassette air handlers up to 18K BTU.
