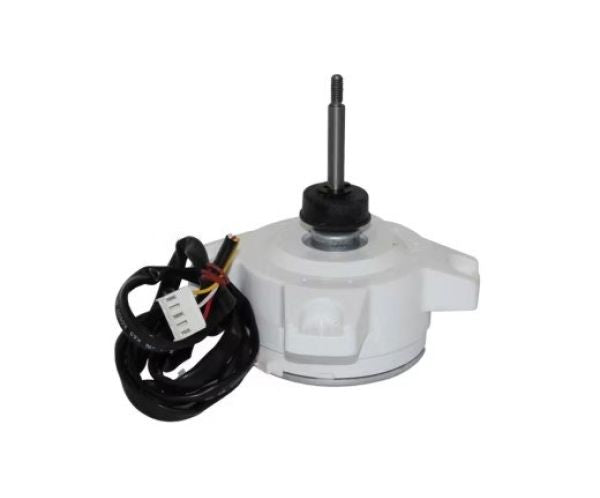

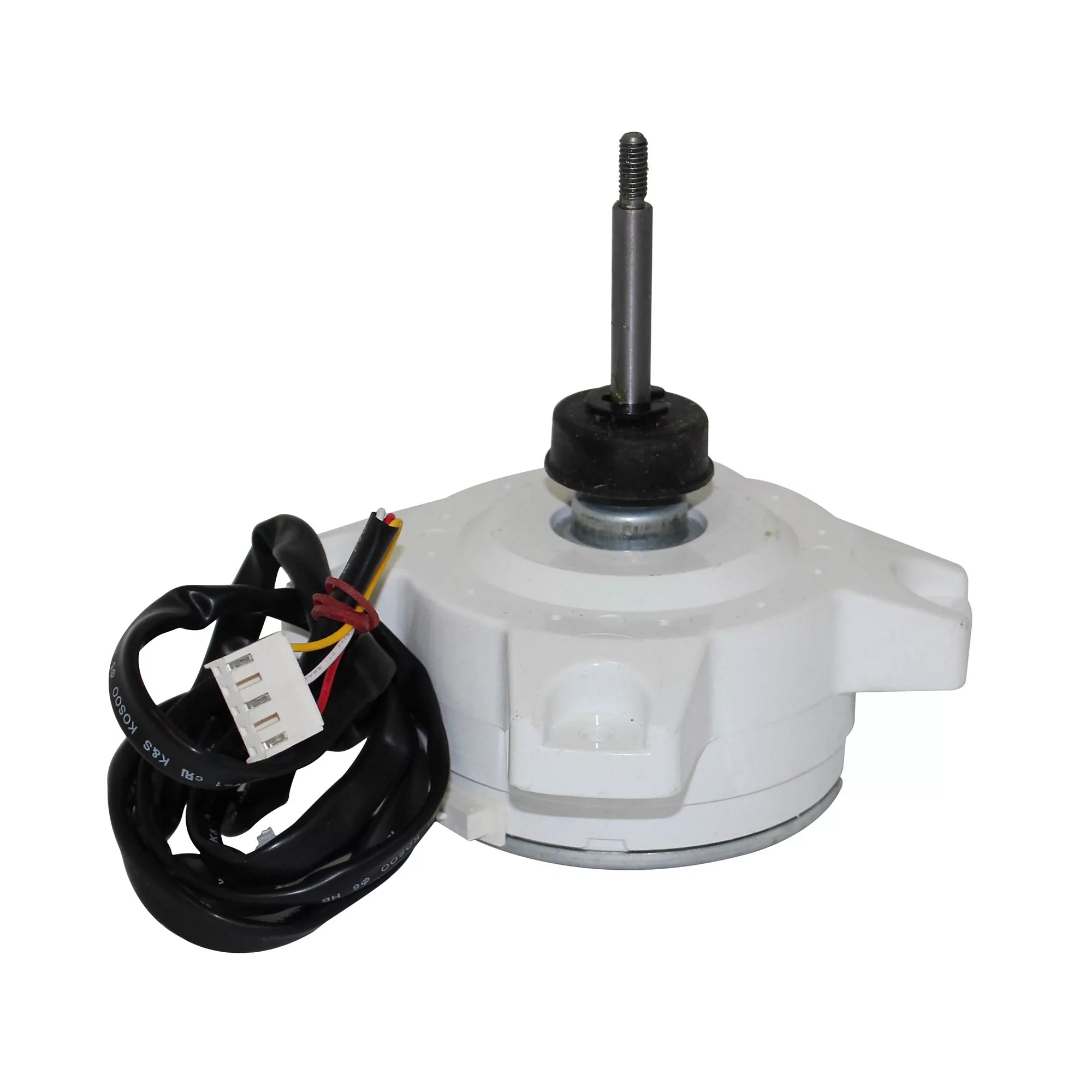

Gree 1501308511 fan motor 208-230 VAC 900 RPM 5.5L x 8.65W x 5.45H

Product Description

The Gree 1501308511 is a single-phase brushless DC fan motor designed for continuous duty operation. It features a ball bearing type and operates at 900 RPM with a voltage range of 208-230 VAC at 60 Hz. This motor is an Electronically Commutated Motor (ECM) with a single speed, suitable for various fan applications requiring efficient and consistent performance. It has an insulation class E and no protection.

• Brushless DC motor (ECM) for energy efficiency and precise control.
• Operates at 900 RPM with 208-230 VAC, 60 Hz, single-phase power.
• Features a durable ball bearing type and continuous duty (S1) operation.

Product Highlights

Efficient single-speed fan motor with ball bearings, 900 RPM, and 208-230 VAC operation for continuous use.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: 1501308511
• Country of Origin: China

Technical Specifications

• Bearing Type: Ball
• Cubic Measurement: 0.1843
• Frequency: 60 Hz
• Duty Cycle: Continuous (S1)
• Insulation Class: E
• Motor Type: ECM (Electronically Commutated Motor)
• Number of Speeds: 1 (Single)
• Phase: Single
• Protection: No Protection
• RPM: 900
• Input Voltage: 208-230 VAC
