Greaves PT222FX40 4/0AWG CU PIN CONN

Product Description

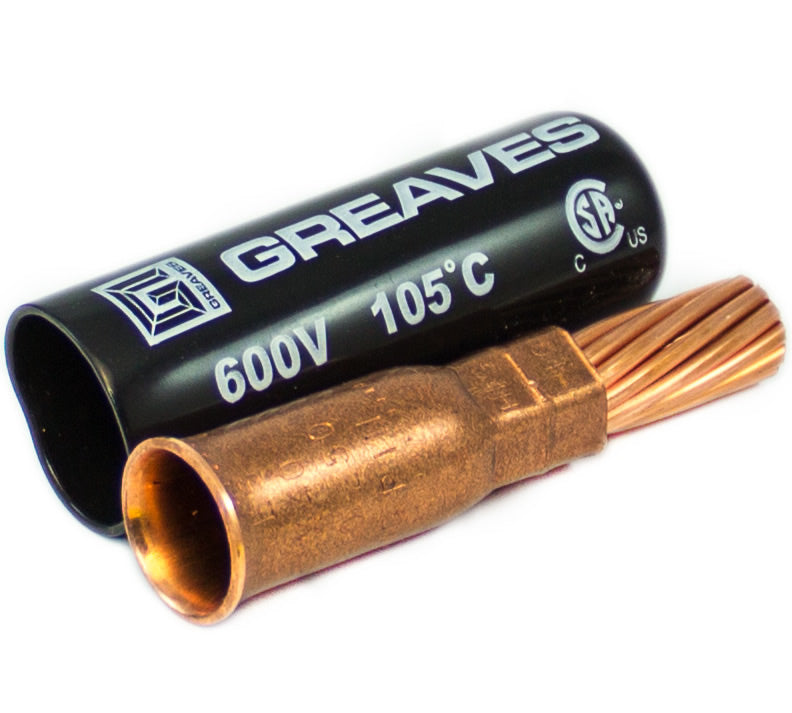

The GREAVES PT222FX40 is a flex wire cable adapter for 4/0 AWG or DLO 550/24 wires, with a total length of 3.3". It is suitable for copper cables up to 105°C. This adapter is UL listed at 600v and Canada Certified. It is made in the USA from domestic and imported parts.

• Shoo-Pin™
• UL listed at 600v
• Canada Certified

Product Highlights

The PT222FX40 cable adapter ensures secure and reliable connections for flex wire applications, with robust construction and safety certifications.

Product Information

Standard Information

• Brand: GREAVES
• Manufacturer Part Number: PT222FX40
• Country of Origin: USA

Technical Specifications

• FLEX Wire Size: #4/0 FLEX 222 DLO (550/24)
• Code Wire Size (OUT): 4/0 AWG
• Cable Strip Length: 1 1/4"
• DIE Color and Index: PURPLE 15
• B: 2.19" (55.6mm)
• P: 1.31" (33.3mm)
• L: 3.50" (88.9mm)
• D: 0.75" (19.05mm)
• Material: Copper
• Input Voltage: 600
• Allowable Gauge Range: 4/0
• Manufacturer: Greaves
• Catalog #: PT222FX40
• Brand: Greaves Corporation
• 12-Digit UPC: 784491552223
• Product UPC: 78449155222
