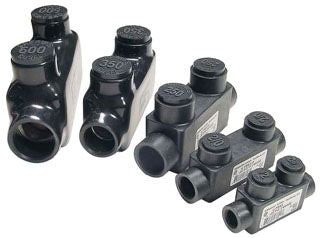

Greaves PBS-600 STD Splice

Product Description

Greaves Corporation PBS-600 STD Splice provides a reliable connection for wire splicing. This in-line splice features a positive center stop type design for secure wiring. Its size measures five point twelve inches in length, one point five inches in width, and three inches in height. It supports conductor sizes from four AWG minimum to six hundred MCM maximum. The splice is suitable for both copper and aluminum conductors and is UL approved for usage in Canada and the US with a voltage rating of six hundred volts.

• Positive center stop type design
• Support for conductor sizes up to six hundred MCM
• UL approved for safety and functionality

Product Highlights

This splice ensures a secure connection for electrical conductors in various applications, making it ideal for use in mechanical cable splicing.

Product Information

Standard Information

• Manufacturer: Greaves Corporation
• Brand: Greaves Corporation

Technical Specifications

• Conductor Material: Copper/Aluminum
• Voltage Rating: 600 Volt
• Body Material: 6061-T6 High Strength Aluminum Alloy
• Insulation Type: High Dielectric Rubber/Vinyl Coated
• Temperature Rating: 90 Deg C
• Hex Size: 5/16 Inch
• Full Technical Description: In-Line, Positive Center Stop Type; 5.12 Inch Length X 1.5 Inch Width X 3 Inch Height; 4 AWG min. Conductor Size; 600 MCM Max. Conductor Size
