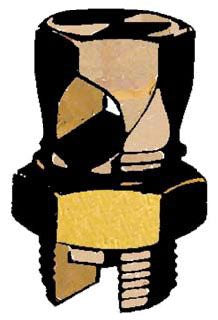

Greaves A12 2-3/0 Cu Split Bolt Connector

Product Description

The Greaves A12 2-3/0 Cu Split Bolt Connector is designed for use in electrical connections. This product features a solderless design for easy installation. It accommodates a maximum run conductor size of three aught American Wire Gauge (AWG) and a minimum tap conductor size of eight AWG. The connector is made from copper alloy, ensuring durability and reliable connections.

• Solderless installation reduces assembly time
• Compatible with three aught and eight AWG conductors
• Constructed from copper alloy for enhanced conductivity

Product Highlights

Ideal for electrical service entrance applications and connections.

Product Information

Standard Information

• Manufacturer: Greaves Corporation
• UPC: 78449110460

Technical Specifications

• Model: A12
• Max Run Conductor Size: 3/0 AWG Stranded
• Min Tap Conductor Size: 8 AWG Stranded
• Installation Type: Split Bolt
• Material: Copper Alloy
• Torque Rating: 450 Inch-Pound
• Approval: UL Approval
• Unique Product Key: 6512890
