Gray Metal Products GSPC-12 Motorized Cable Manager

Product Description

The Gray Metal Products GSPC-12 is a motorized cable manager suitable for effective wire pay-off and take-up. It can operate independently or be combined with GSRT or GCRT series lifting points for a comprehensive ceiling lifting solution. This device is equipped for remote power supply and signal control of hoisting lighting and audio equipment when mounted on ceilings or elevated areas. Key components include a winding wheel slipping device and a spring buffer that help to protect cables during operation.

• Active wire pay-off and take-up functionality
• Prevents cable damage with a patented winding wheel slipping device
• Ideal for ceiling installation for remote power and signal control

Product Highlights

The GSPC-12 provides a seamless solution for managing cables effectively in professional setups.

Product Information

Standard Information

• Model: GSPC-12
• Weight: 30.4 kg

Technical Specifications

• Dimensions: 394 x 280 x 844 mm
• Maximum Load: 8 kg
• Power Consumption: 60 W
• Maximum Travel: 12000 mm
• Precision: < 2 mm
• Noise Level: ≤ 55 dB
• Input Voltage: 220V/110V
• Jib Attachment: 330 x 98 mm

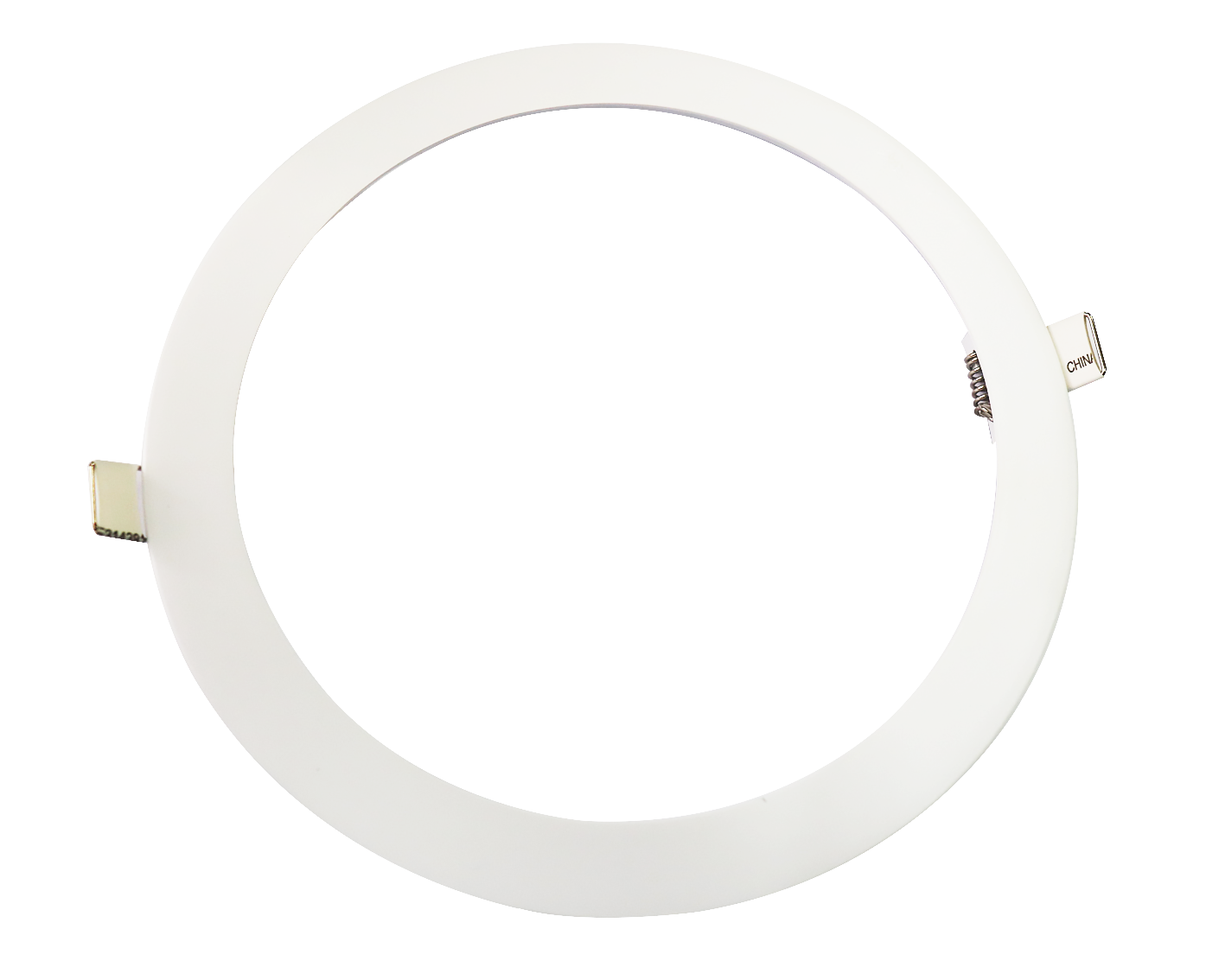

• Ceiling Opening Dimensions: Ø 175 mm
• Dry Contact: Yes
• 485 Control: Yes
