Grant 9156338 sliding door hardware for overlay doors up to 66 lbs.

Product Description

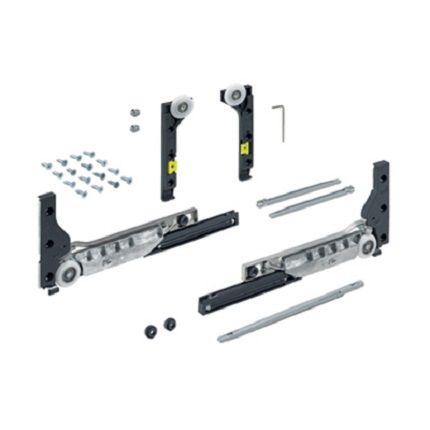

GRANT 9156338 is a sliding door hardware set for SlideLine M systems. It turns simple shelf units into attractive pieces of furniture with doors that can be positioned as desired to create open and closed elements. Designed for wooden and aluminum framed doors, up to 66.14 Lbs, this set is for one door panel installed in overlay position with bottom running hardware.

• Sliding door hardware set for SlideLine M systems
• Turns simple shelf units into attractive pieces of furniture
• Doors can be positioned as desired to create open and closed elements

Product Highlights

Sliding door hardware set for SlideLine M systems for wooden and aluminum framed doors, up to 66.14 Lbs.

Product Information

Standard Information

• Brand: GRANT
• Manufacturer Part Number: 9156338

Technical Specifications

• MPN: 9156338
• Brand: GRANT
• Inventory SKU: SL9156.338
• Door Type: Wood Doors, aluminum framed door (hardware not included, sheet metal screws can be ordered separately)
• Maximum Door Weight: 66.14 Lbs. (30 kg.)
• Door Width: Minimum - 17.7" (450 mm) Maximum - 70.87" (1800 mm)
• Door Height: Door height may be no higher than twice the door width for quality and safety purposes. Sliding doors can be perfectly aligned with the integrated height adjuster (+/- 2mm). See compliance details for further information.
• Applications: For interior furniture overlay sliding doors. Provided with bottom running components.
