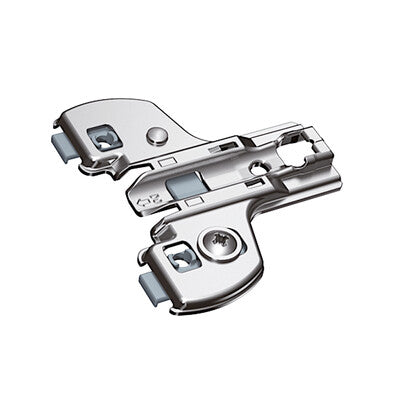

Grant 9090882 Sensys Cammed Face Frame Mounting Plate, 0 mm. For 3/4 inches Overlay

Product Description

The GRANT 9090882 Sensys cammed face frame mounting plate is designed for a 3/4" overlay. It allows for overlay and depth adjustments via eccentric cams. The cup also has a shallow profile for doors as thin as 15 mm. The cup hole is drilled to 12.8 mm.

• Overlay adjustment via cam +2 mm / -2 mm
• Depth adjustment via cam +3 mm / -2 mm
• Height adjustment via mounting plate

Product Highlights

Cammed face frame mounting plate with overlay and depth adjustment. Designed for 3/4" overlay and doors with a minimum thickness of 15 mm.

Product Information

Standard Information

• Brand: GRANT
• Manufacturer Part Number: 9090882

Technical Specifications

• Unit of Measure: Each
• Door thickness: 15 mm - 22 mm
