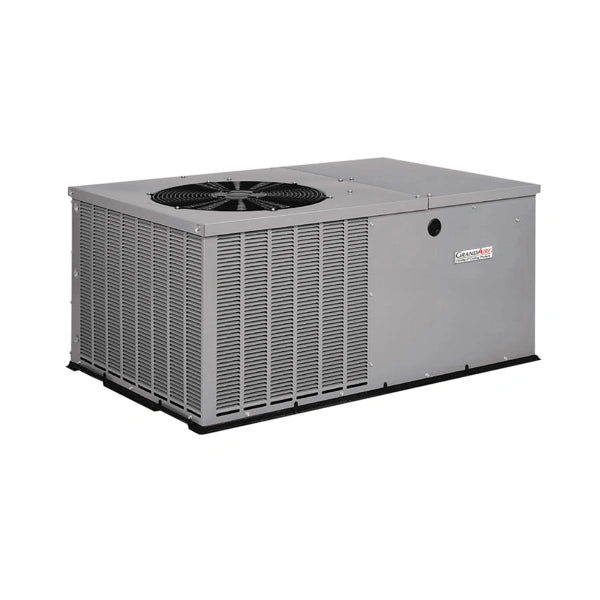

Grandaire WJA560000K000B 5-Ton 13.4 SEER2 Straight-Cool A/C Package Unit

Product Description

The GRANDAIRE WJA560000K000B is a powerful and compact 5-ton straight-cool packaged air conditioner, engineered for residential and light-commercial applications. With a 13.4 SEER2 efficiency rating and using the environmentally responsible R-454B refrigerant, it delivers robust 60,000 BTU/h cooling while minimizing global warming potential.

• 5-ton GrandAire horizontal A/C unit
• 13.4 SEER2
• Eco-friendly R-454B

Product Highlights

This unit features a durable powder-coated steel cabinet on a corrosion-resistant composite basepan. Service and maintenance are streamlined with front and side access panels and built-in refrigerant service ports.

Product Information

Standard Information

• Brand: GRANDAIRE
• Manufacturer Part Number: WJA560000K000B

Technical Specifications

• Brand: GrandAire
• Model: WJA560000K000B
• System Type: Horizontal Straight-Cool Packaged Air Conditioner
• Cooling Capacity: 60,000 BTU/h
• Refrigerant: R-454B
• SEER2 Rating: 13.4
• Compressor: Single-Stage Scroll
• Blower Type: Direct-Drive Multispeed
• Condenser Fan: PSC Motor
• Voltage: 208/230V, Single Phase, 60Hz
• MCA: 37.9 Amps
• MOCP: 60 Amps
• Sound Level: Quiet operation with vibration isolation
• Cabinet: Powder-Coated Steel with Composite Base
• Service Access: Front and Side Panels
• Refrigerant Access: Standard Service Ports
• Certifications: AHRI Certified, SEER2 DOE 2023 Compliant, Prop 65
• Application: Residential and Light Commercial Installations
• AHRI Certificate: Yes
• AHRI Number: 216013087
• Product Type: Package AC
• Tonnage: 5
• Operating Mode: Cool Only with Electric Heat
• Airflow Direction: Horizontal
• EER2: 11.05
• Configuration: Horizontal
• Compressor Type: Scroll
• Blower Motor: Multi-Speed ECM
• Installation Type: Packaged Unit
