Grandaire WJA542000K000B 3.5 Ton EcoTemp 13.4 SEER2 R454B Package Unit WJA542000K000B

Product Description

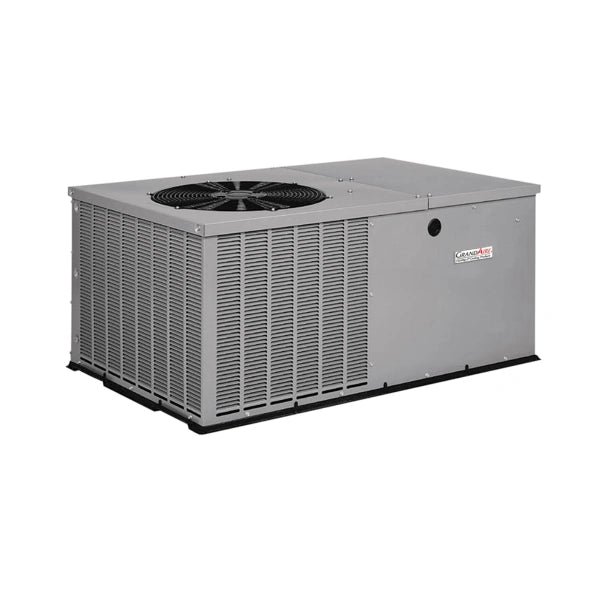

The GRANDAIRE WJA542000K000B is a 3.5 ton 13.4 SEER2 R-454B refrigerant cool only horizontal package unit built to stand the test of time. It features copper tube/aluminum fin condenser and tin coated copper evaporator coils, TXV valve metering and a direct drive multi-speed ECM blower motor with a pre-painted steel cabinet and no-rust base pan.

• Copper tube/aluminum fin condenser

Product Highlights

Compact design for narrow lots and ease of installation, allowing service from the front and side with horizontal supply and return openings.

Product Information

Standard Information

• Brand: GRANDAIRE
• Manufacturer Part Number: WJA542000K000B

Technical Specifications

• Product #: 169075
• Manufacturer: EcoTemp
• Product code: 169075
• SKU: 169075
• AHRI Certificate: Yes
• AHRI Number: 216013053
• SEER2: 13.4
• Product Type: Package AC
• Tonnage: 3.5 Ton
• Operating Mode: Cool Only with Electric Heat
• Refrigerant Type: R-454B
• Airflow Direction: Horizontal
• Brand: Grandaire
• Model: WJA542000K000B
• Cooling Capacity: 42,000 BTU
• Voltage: 208-230V / 1 Phase / 60 Hz
• Configuration: Horizontal
• Compressor Type: Scroll
• Blower Motor: Multi-Speed
• Application: Residential / Light Commercial
• Installation Type: Packaged Unit
• SEER: 13.4
• Cooling Btu: 42,000
• Cooling Stage(s): 1
• Compressor Stage: Single
• Electrical Phase(s): 1-Phase
• Decibel Level (dB): 77
• UPC #: 633190278234
• Amp(s): 40
• Height (Inches): 34.125
• Width (Inches): 32
• Depth (Inches): 51
• Heating BTU/h: None
• Horsepower: 1/2
• RPM: None
• M.C.A: 25.2
• M.O.P.: 40
• Min./Max Voltz: 197/253
• Weight (lbs.): 342
• Supply: 14
• Return: 14
