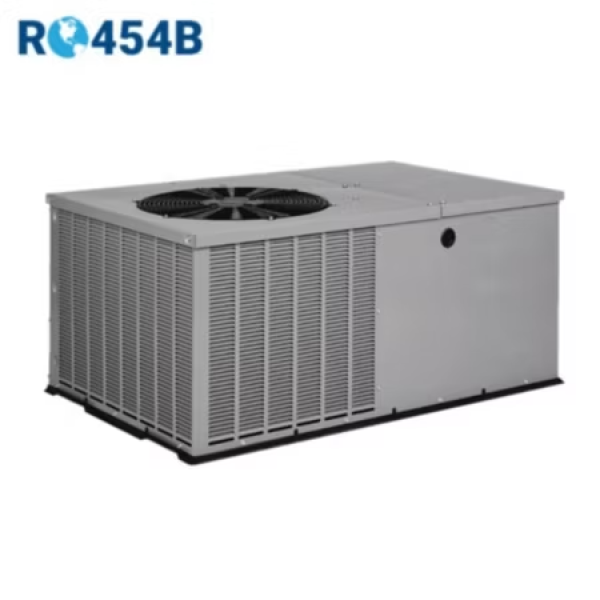

Grandaire WJA536000K000B WJA5 Series 3-Ton 13.4 SEER2 Horizontal Package Air Conditioner

Product Description

The GrandAire WJA536000K000B is a 3-ton horizontal packaged air conditioner designed for residential and light commercial use. Engineered for efficiency, it uses R-454B refrigerant, offering a lower Global Warming Potential (GWP). It delivers up to 36,000 BTU/h of cooling with a 13.4 SEER2 rating, compliant with 2023 DOE regulations.

• Compact design for attic, closet, slab-on-grade, or through-wall installations
• Durable powder-coated steel cabinet with rust-resistant composite basepan
• Front and side access panels for easy serviceability

Product Highlights

This GrandAire air conditioner features a single-stage scroll compressor, direct-drive multispeed blower motor, and low sound levels down to 71 dBA.

Product Information

Standard Information

• Brand: GRANDAIRE
• Manufacturer Part Number: WJA536000K000B

Technical Specifications

• Brand: GrandAire
• Series: WJA5
• System Type: Horizontal Package Air Conditioner
• Cooling Capacity: 3 Tons / 36,000 BTU/h
• Compressor Type: Single-Stage Scroll
• Refrigerant Type: R-454B
• SEER2 Rating: 13.4
• Voltage: 208/230V, Single Phase
• MCA: 22.3 Amps
• MOCP: 35 Amps
• Blower Type: Direct-Drive Multispeed
• Sound Level: As low as 71 dBA
• Cabinet Construction: Powder-Coated Steel with Rust-Resistant Basepan
• Discharge Configuration: Horizontal
• Line Set Length: Up to 50 ft
• Service Access: Front and Side Panels
• Certifications: AHRI Certified, DOE 2023 SEER2 Compliant, Prop 65
• Application: Residential and Light Commercial Installations
• Min/Max Operating Voltage: 197/253 V
• Model: WJA536000K000B
• Cooling Btu: 36,000
• Heating BTU/h: None
• Compressor: Single
• Horsepower: 1/2
• Electrical Phase(s): 1-Phase
• Supply: 14
• Return: 14
• SEER: 13.4
• Cooling Stage(s): 1
• Compressor Stage: Single
• Decibel Level (dB): 76
• Amp(s): 35
