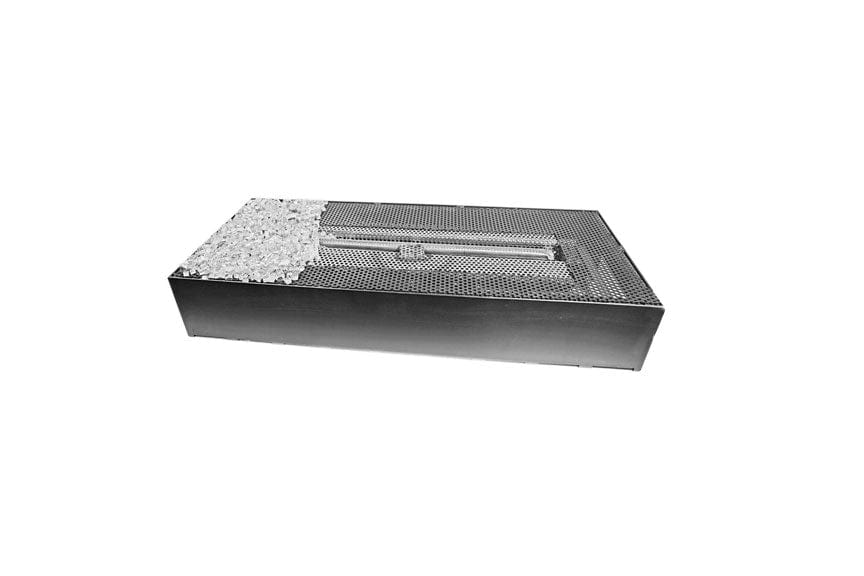

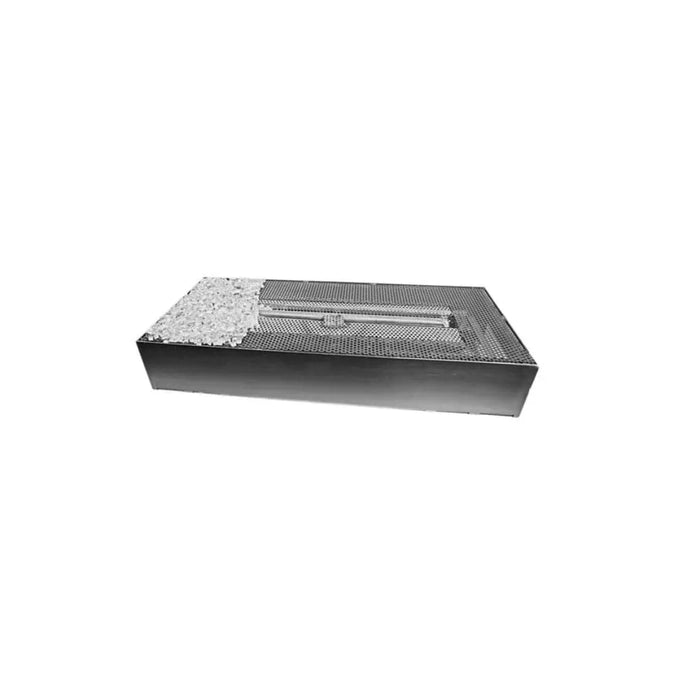

Grand Canyon LDB72L-EP Bedrock vented contemporary linear drop-in propane burner 72 inches

Product Description

The GRAND CANYON LDB72L-EP Bedrock Linear Drop-in Burner is designed for trough style masonry or contemporary wood burning fireplaces. It operates with an SIT Proflame II control system, featuring flame modulation via a remote. This vented drop-in burner system includes IC controlled LED lighting, operable with a remote or app. Lava rock or reflective glass is required but not included.

• BURNER ONLY
• Usage: Indoor/Outdoor (Covered area)
• Materials: Powder Coated Steel & Rust Resistant Steel

Product Highlights

Designed for easy warmth and comfort, this burner includes S.I.T. controls with remote, LED lights with remote, rating plate, installation manual, flex line, and fittings.

Product Information

Standard Information

• Brand: GRAND CANYON
• Manufacturer Part Number: LDB72L-EP
• Country of Origin: US

Technical Specifications

• Specific Uses For Product: FirePit
• Style: Contemporary
• Installation Type: Drop In
• Model Name: LDB72L-EP
• Models: LDB72L-EN or LDB72L-EP
• Power Requirements Volts: AC 120V / 60Hz
• Battery Backup: 4+ AA Battery 6V
• Lamps: LED 5V RGB
• IR Remote Controller: Yes
• Customizable Wifi App: Yes
• Proflame II System: Yes
• Flame Intensity Levels: 5 levels
• Remote Ignition: Yes
• Vented Configuration: Yes
• Max. Heat: 90,000 BTU/hr (26.35 kW)
• Low Heat (LP): 50,000 BTU/hr (14.64 kW)
• BTU Rating Minimum: 50K
• BTU Rating Maximum: 90K
• Fuel Type: Propane
• Manifold Pressure: 10" W.C.
• Intel Pressure Minimum: 11"
• Intel Pressure Maximum: 14"
• Fire Box Front: 72"
• Fire Box Rear: 72"
• Fire Box Depth: 15"
• Fire Box Height: 20"
• Finish Type: Powder Coated
