Grand Canyon KIVABRN-18 Kiva Burner 18 inch

Product Description

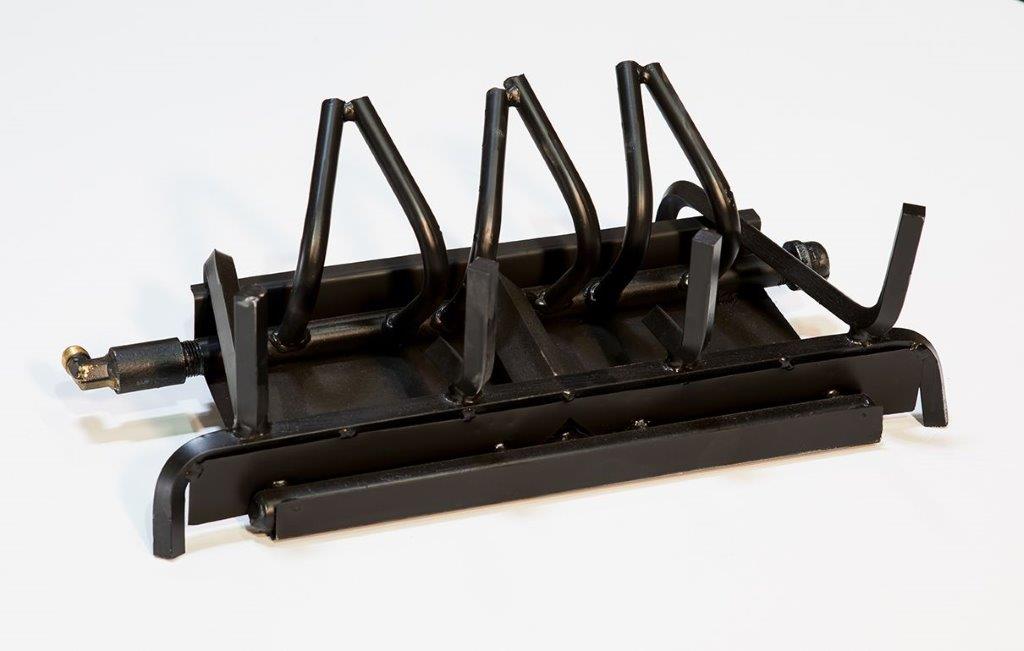

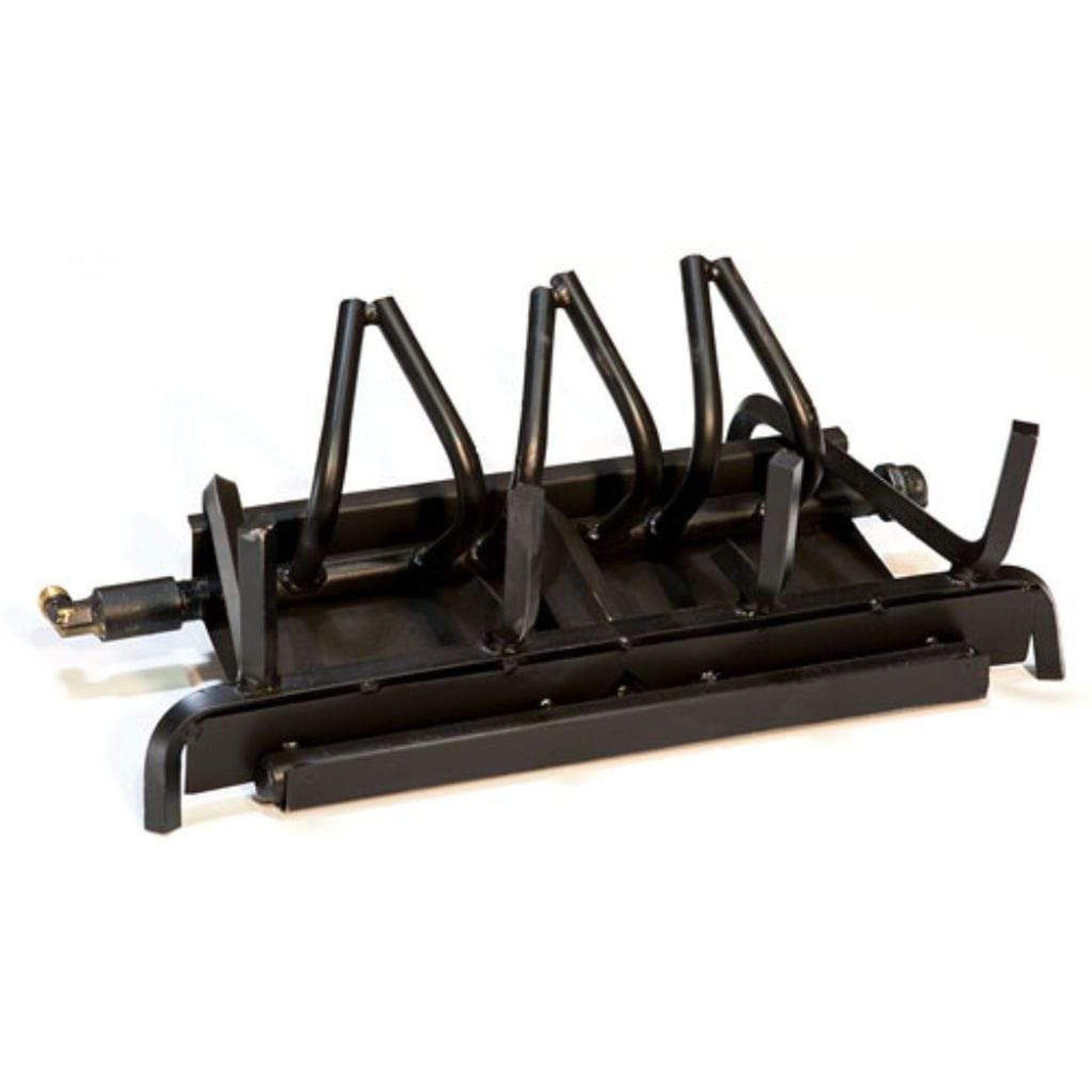

The Grand Canyon KIVABRN-18 Kiva Burner is designed for use inside a Kiva fireplace. Developed in the same factory as Grand Canyon ANSI certified 2 and 3 burners, this Kiva burner system was designed to fit Adobelite Kiva fireplaces. The Kiva Burner features 6 vertical upright burners in the back and a single front burner that also acts as the ember bed.

• Specifically designed for Adobelite Kiva Fireplaces
• A Frame rear burners for log support & exceptional flame height
• Fully Welded System w/Sandless Design

Product Highlights

This 18-inch Kiva burner is a true 7 burner featuring 6 vertical upright burners in the back and a single front burner that also acts as the ember bed.

Product Information

Standard Information

• Brand: GRAND CANYON
• Manufacturer Part Number: KIVABRN-18
• Country of Origin: US

Technical Specifications

• Manufacturer: Grand Canyon
• Grand Canyon Part Numbers: KIVABRN-18
• Item Number: GRC-KIVABRN-18
• Model Number: KIVABRN-18
• Size: 18-Inch
• Burner BTU: NG-40K / LP-35K
• Specifically designed for: Adobelite Kiva Fireplaces
• A Frame rear burners for: log support & exceptional flame height
• Built to: ANSI Standards
• Fully Welded System: w/Sandless Design
• Piping & Bar Stock: Gas Inlet Left or Right
• Concealed Pilot Mounting Brackets: NG Burner convertible to LP
• Includes: Lava Rock, Embers & Connection Fittings
• 18-Inch Front Width: 12"
• 18-Inch Depth: 9"
• 18-Inch Back Width: 6"
• 18-Inch Height: 6"
• 18-Inch BTU Rating NG: 45K
• 18-Inch BTU Rating LP: 35K
• Compatible Log Sets: Grand Canyon Weathered Oak or Arizona Juniper Kiva gas logs only (AWO/AJ-KIVALOGS)
• Min Fireplace Dimensions: Front W: 20-Inch, Rear W: 18-Inch, D: 12-Inch, H: 14-Inch
• For Use With: Adobelite Kiva Fireplaces
• Vented Unit: Designed for vented fireplace enclosures only, and must be used with a damper clamp
