Grand Canyon JUMBOBRNR-36-SS Jumbo stainless steel vented burner 150K BTU (36-Inch)

Product Description

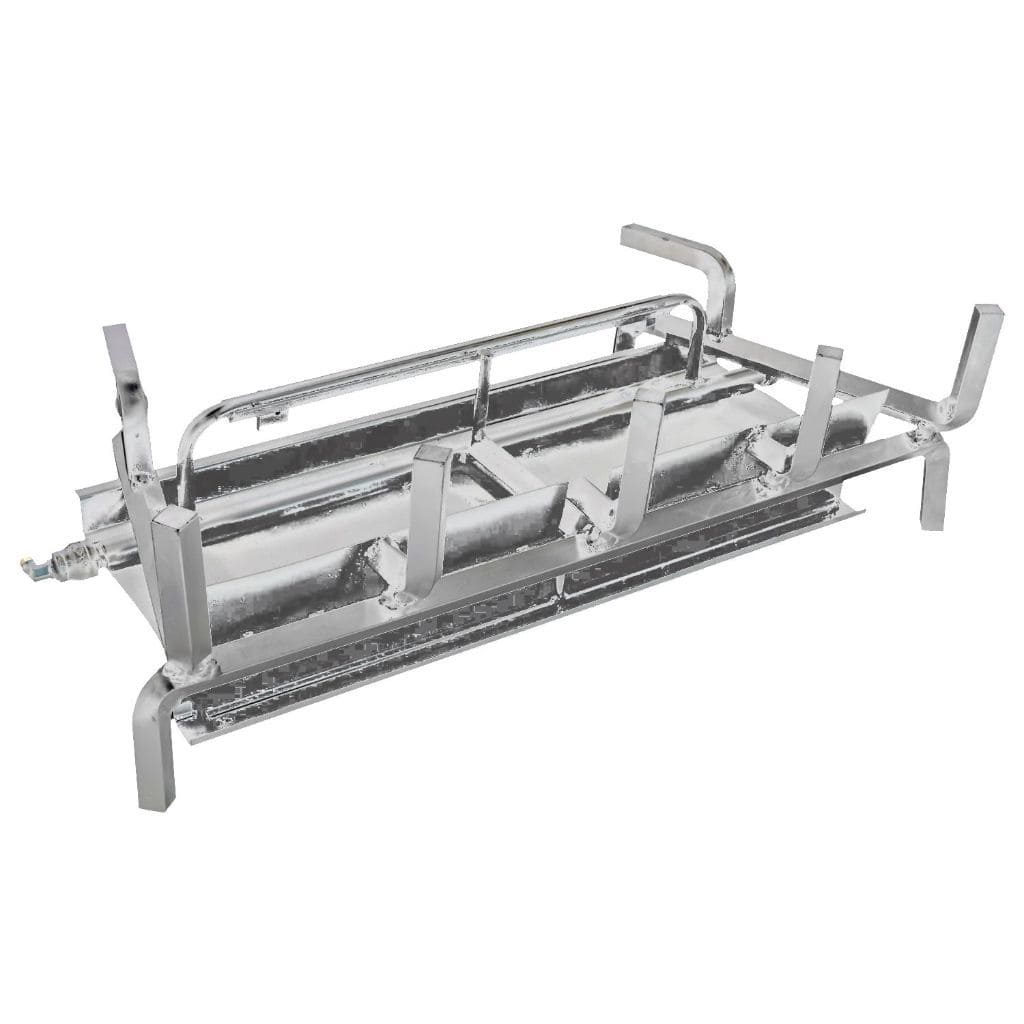

The Grand Canyon JUMBOBRNR-36-SS is a 36-inch stainless steel vented burner system designed for large gas fireplaces. The assembly is constructed from 304 stainless steel with a 1-inch bar stock profile and an elevated back burner to increase flame height. It is rated at 150,000 BTU for natural gas, uses 3/4-inch piping, and is supplied with lava rock, embers, connection fittings, a flex line, and an ember damper clamp.

• 36-inch 304 stainless steel construction with 1-inch bar stock and elevated back burner for increased flame height
• Rated 150,000 BTU (natural gas); compatible with propane configurations and convertible where applicable
• Includes lava rock, embers, connection fittings, flex line, and ember damper clamp; designed for vented fireplace enclosures

Product Highlights

36-inch vented stainless steel burner system, 150,000 BTU (NG), includes media and fittings; designed for large indoor or outdoor vented fireplaces.

Product Information

Standard Information

• Brand: GRAND CANYON
• Manufacturer Part Number: JUMBOBRNR-36-SS
• Country of Origin: United States

Technical Specifications

• Manufacturer: Grand Canyon
• MPN: JUMBOBRNR-36-SS
• Product Type: 36-inch jumbo vented gas burner
• Material: 304 stainless steel
• Front Width: 36 in
• Back Width: 28 in (rear/internal width)
• Depth: 18 in
• Height: 10 in
• Fuel Type: Natural Gas (convertible to Propane where applicable)
• BTU Rating (NG): 150,000 BTU
• BTU Rating (LP): 145,000 BTU
• Piping / Bar Stock: 3/4" gas piping connection; 1" stainless steel bar stock construction (bar stock is structural/profile material, not piping)
• Fittings: Gas inlet left or right; includes connection fittings
• Included Items: Burner assembly, lava rock, embers, connection fittings, flex line, ember damper clamp
• Unit Type: Vented (for vented fireplace enclosures only)
• Design Features: Elevated back burner; even distribution rear burner with dual-action middle burner and dedicated ember glow burner; fully welded sandless design
• Pilot: Concealed pilot mounting brackets
• Compatible Logs: Designed for Grand Canyon JUMBOAWO and JUMBOAWOC gas logs (logs not included)
• Made In: United States of America
• Certifications: ANSI (manufacturer states ANSI certification for control systems)
• Usage: Designed for indoor vented fireplaces; components suitable for specified outdoor installations where indicated
