Grand Canyon GLASSBRN-24/12-H-NG-MVKEI-GCRK Assembled 24 inches Glass H-Burner Electronic

Product Description

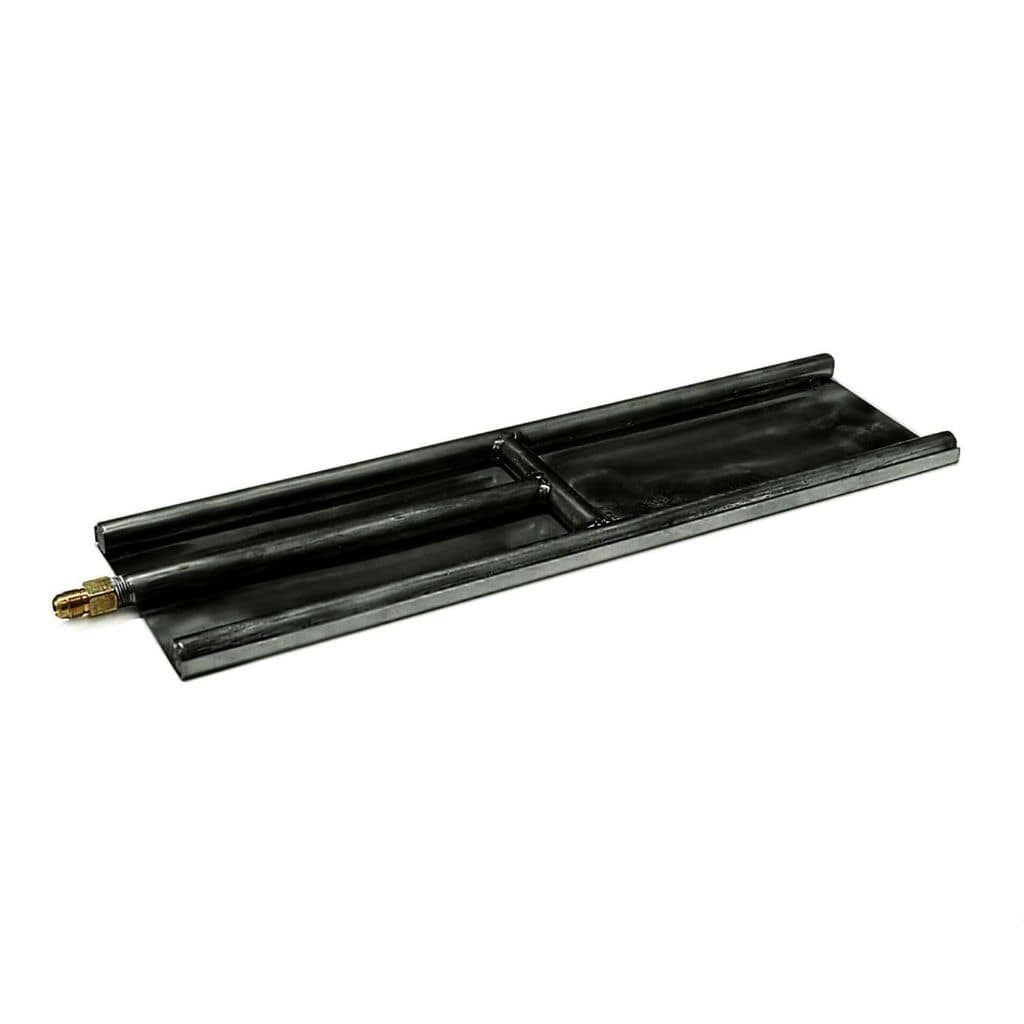

The GRAND CANYON GLASSBRN-24/12-H-NG-MVKEI-GCRK is an assembled 24" natural gas glass H-burner with a battery electronic and remote system. The assembled gas burning H-burner allows for an evenly spaced flame. It features factory-tested and installed control systems and is tested to ANSI standards. It has a plug-and-play approach and is for indoor use only.

• Assembled gas burning H-burner allows for an evenly spaced flame
• Factory tested and installed control systems
• Tested to the ANSI standard

Product Highlights

This assembled gas burning H-burner features factory-tested and installed control systems. It is tested to ANSI standards and is for indoor use only.

Product Information

Standard Information

• Brand: GRAND CANYON
• Manufacturer Part Number: GLASSBRN-24/12-H-NG-MVKEI-GCRK

Technical Specifications

• Standards: Built to ANSI Standards
• Usage: Indoor
• Materials: Stainless Steel Chassis
• Piping: ½” Piping, ¾” Piping on (48”-120”)
• Fittings: N/A
• Convertible to LP: NG Burner Convertible to LP
• Media: Includes Connection Fittings
• Pilot: Concealed Pilot Mounting Brackets
• Design: Fully Welded System with Sandless Design
• Burner Size: 18", 24", 30", 36" and 42-inch options
• Fuel Type: Choose from Propane or Natural Gas
• Valve Kit: Battery Electronic and Remote System
• Front Width: 36-Inch
• Back Width: 24-Inch
• Depth: 12-Inch
• Height: 14-Inch
• BTU Rating: 64K (NG) / 66 K (LP) BTU
• Manufactured from: steel for unmatched durability and longevity
• Designed for use with: lava rock or fire glass
• Designed for: vented fireplace enclosures only and must be used with a damper clamp
• Kit is intended for: indoor use

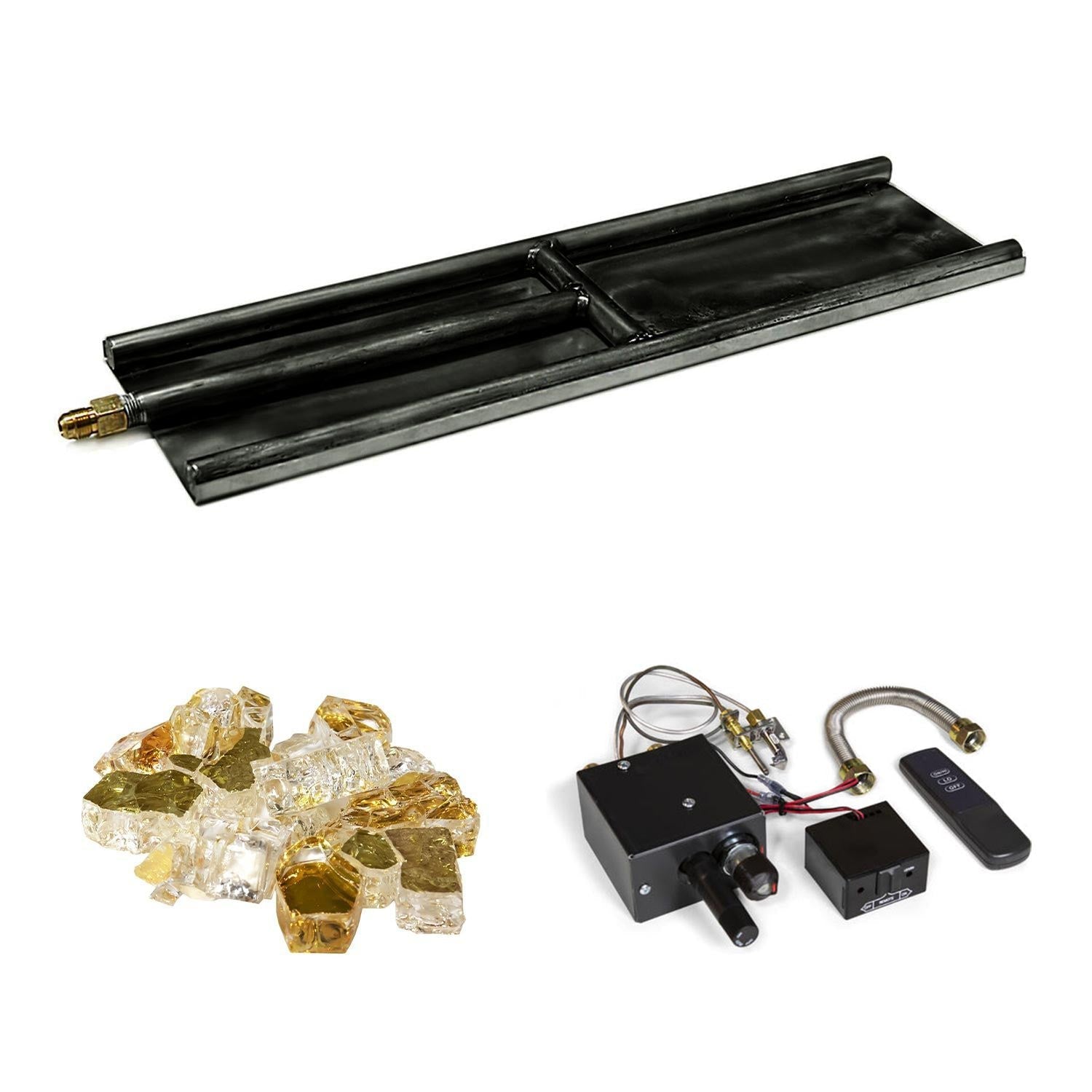

• Includes: burner system with media, fittings, a flex line, remote and damper clamp
• Heat Output: Decorative
• Style: Modern, Transitional
• Open Fireplace: Installation
