Grand Canyon EIS-10 Electronic Ignition System 10 feet Pilot

Product Description

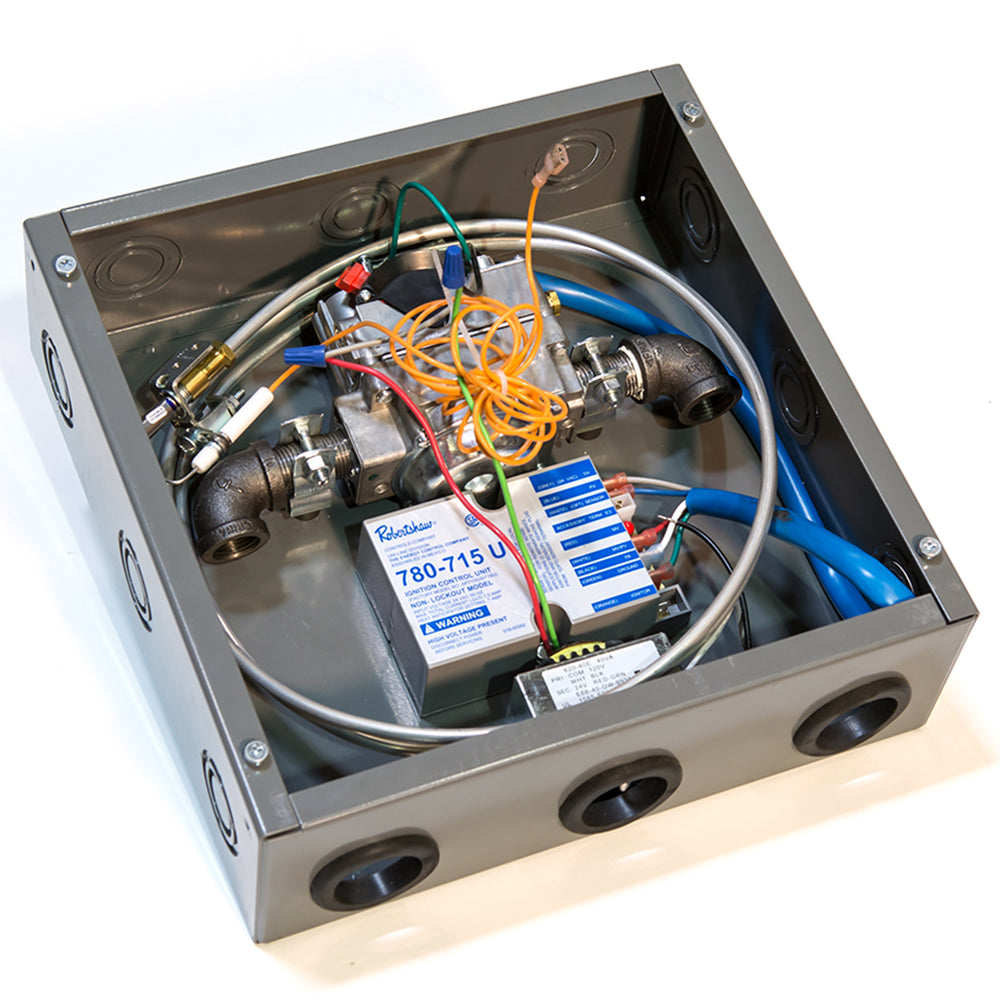

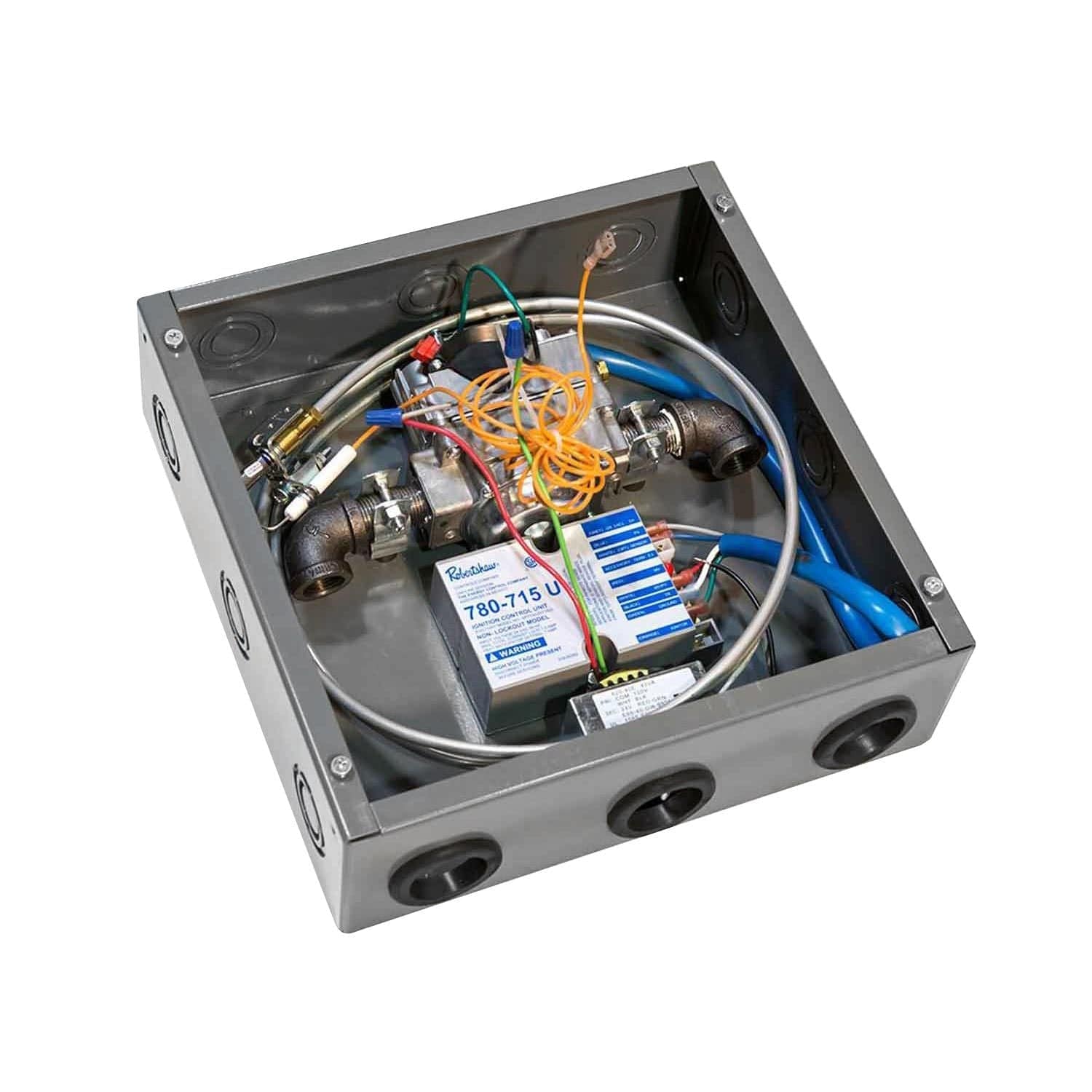

The GRAND CANYON EIS-10 Electronic Ignition System provides the power needed to start your fireplace and enjoy the ambiance of burning gas logs. This system is available in Natural Gas (EIS) and Propane (EIS-LP). It includes a 12" x 12" x 4" metal knock-out enclosure, a 10' pilot assembly, valve, module, transformer, spark ignitor, pilot hood, and fittings. Designed for indoor use only.

• Features a non-standing pilot and pilot on-demand system.
• Offers 24V electronic ignition and 110V direct wire ignition.
• Designed for on/off operations only.

Product Highlights

The Grand Canyon Electronic Ignition System is for use with 2, 3, Glass, Kiva, Jumbo and Jumbo Slimline Burners. Pair with Grand Canyon remote, wall switch or Weather Beater WIFI/Bluetooth Power Box.

Product Information

Standard Information

• Brand: GRAND CANYON
• Manufacturer Part Number: EIS-10

Technical Specifications

• Indoor Only: Yes
• Non-Standing Pilot | Pilot On-Demand System: Yes
• 24V Electronic Ignition | 110V Direct Wire Ignition: Yes
• On/Off Operations ONLY: Yes
• Max Inlet: 14" W.C.
• Valve Temp Rating: 175°
• 10ft Pilot Assembly: Yes
• NG: 3"-7" W.C. 200,000 BTU’s
• LP: 8"-14" W.C. 110,000 BTU’s
• Use with: 2, 3, Glass, Kiva, Jumbo and Jumbo Slimline Burners
• Manufacturer: Grand Canyon
• SKU Number: EIS and EIS-10
• BTU: 3"-7" 200K BTU (NG)
• For Use With (Burner Model): 2-Burner / Glass / Kiva - 18" to 60", 3-Burner - 18" to 42" and Jumbo / Jumbo Slimline - 24" - 60" (NG)
