Grand Canyon 712-017 Ip Ignition Kit Natural Gas

Product Description

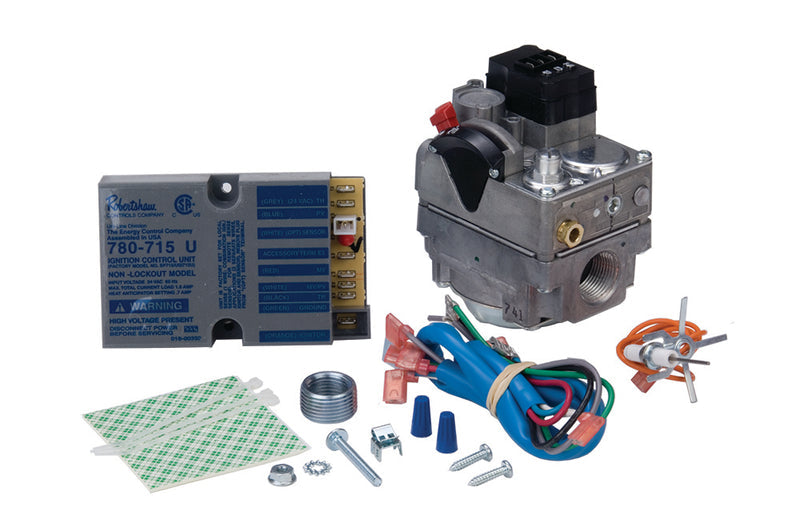

The GRAND CANYON 712-017 is an intermittent pilot (IP) ignition kit designed for natural gas appliances. The kit bundles the core components required for a complete ignition system replacement into a single assembly: a 720-070 gas valve with 1/2-inch inlet by 3/4-inch outlet connections, a 780-715 ignition module, a 1751-729 ignitor, and a wiring harness. Installers get a matched set of components engineered to work together, reducing the risk of mismatched parts and simplifying the service call. This kit is appropriate for licensed gas appliance technicians handling ignition system repairs or upgrades.

This IP ignition kit is suited for natural gas applications where the existing intermittent pilot ignition system requires a full-component replacement rather than a single-part fix. The included gas valve, ignition module, ignitor, and pre-wired harness cover the primary functional components of a standing or intermittent pilot ignition circuit. This kit is commonly used in residential gas appliance service where the OEM ignition system has failed and a complete replacement assembly is preferred over sourcing individual components separately.

Key Features

• Complete IP ignition kit with gas valve, ignition module, ignitor, and wiring harness included
• 720-070 gas valve with 1/2-inch inlet and 3/4-inch outlet connection sizing
• 780-715 ignition module for intermittent pilot ignition control
• 1751-729 ignitor included for direct replacement of failed ignition components
• Pre-wired harness simplifies installation and reduces field wiring errors
• Configured for natural gas fuel type

Compatibility

Designed for natural gas appliance applications requiring intermittent pilot ignition system replacement. This kit includes component part numbers 720-070, 780-715, and 1751-729 as specified by GRAND CANYON for use with compatible RSH series appliances.

Installation Notes

Installation should be performed by a licensed gas appliance technician or qualified service professional. Shut off the gas supply and disconnect electrical power to the appliance before beginning any ignition system service. All gas connections must be leak-tested after installation using an approved leak detection solution. Work must conform to applicable local codes and the IFGC where required.

Technical Specifications

• Fuel Type: Natural Gas
• Ignition Type: Intermittent Pilot (IP)
• Included Gas Valve: 720-070, 1/2-inch inlet x 3/4-inch outlet
• Included Ignition Module: 780-715
• Included Ignitor: 1751-729
• Wiring Harness: Included

Standard Information

• Brand: GRAND CANYON
• Manufacturer Part Number: 712-017
