Grand Canyon 3BRN-36-SS Stainless Steel 3 Burner System 36-Inch

Product Description

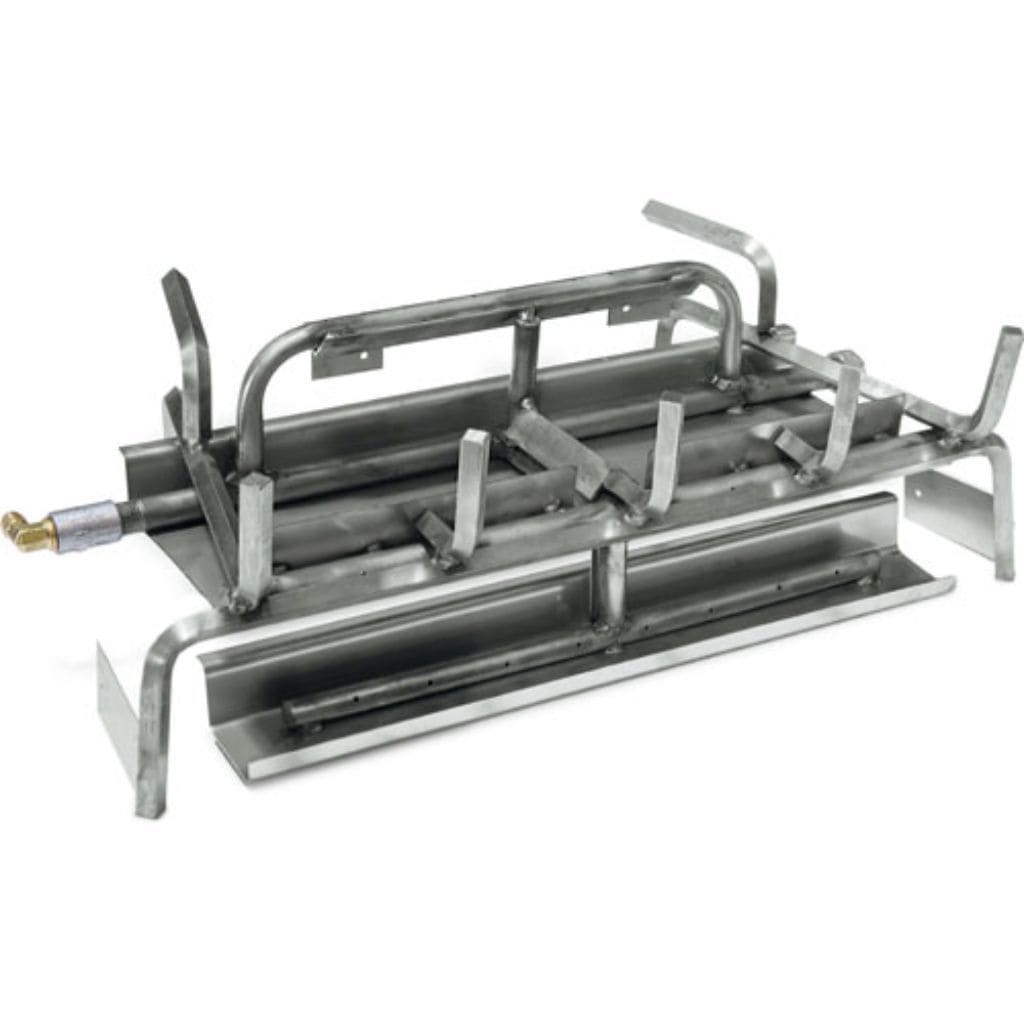

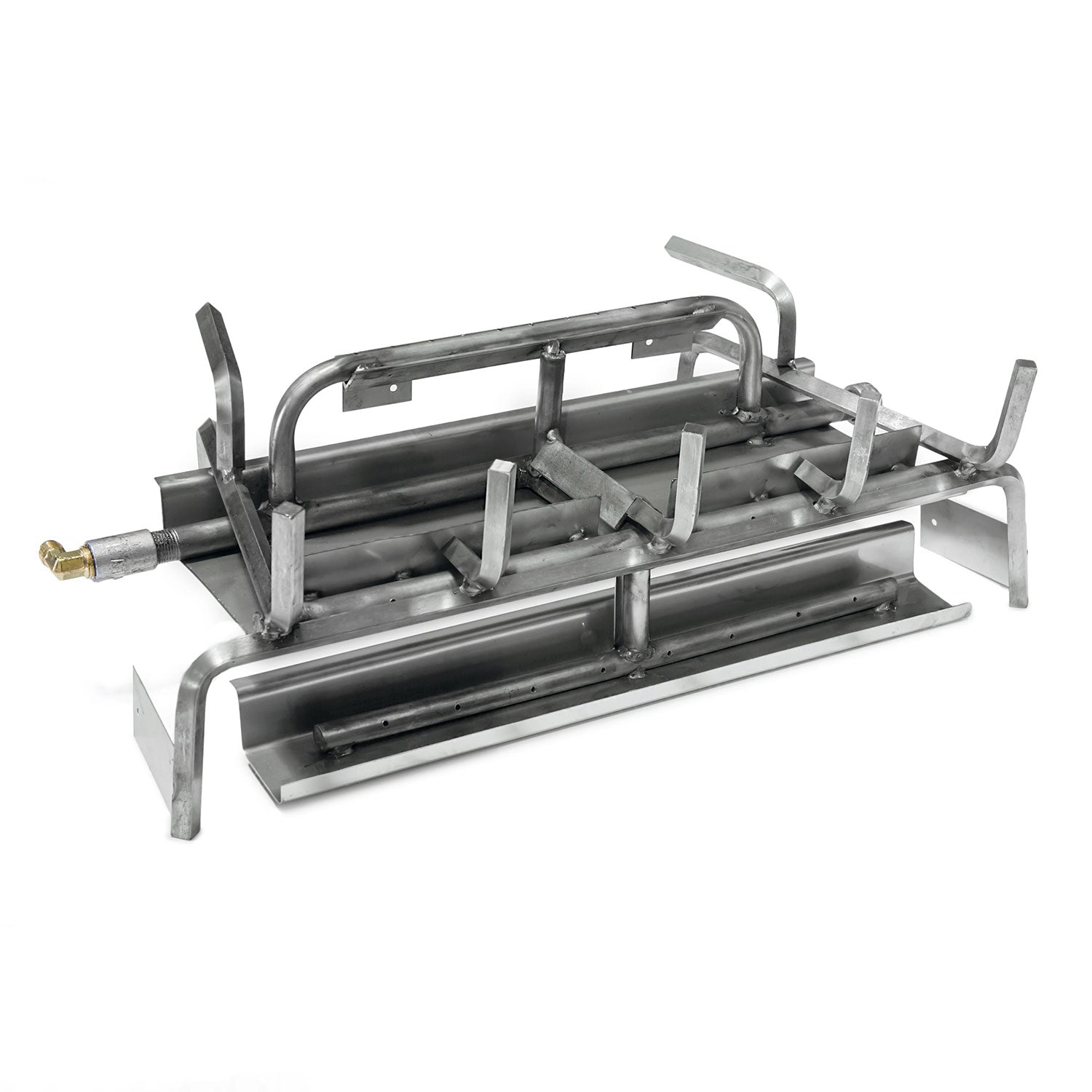

The GRAND CANYON 3BRN-36-SS stainless steel 3 burner system provides a high-quality burner component for gas fireplaces. Constructed from 304 stainless steel, this burner ensures durability and performance indoors or outdoors. It features an elevated back burner, a middle burner, and an ember burner to create a comfortable atmosphere. The package includes metal bar stock, burner pipes, lava rock, fittings, a flex line, and a damper clamp.

• Outdoor rated for use in outdoor fireplaces.
• Designed for vented fireplace enclosures and must be used with a damper clamp.
• Includes lava rock, fittings, a flex line, and ember damper clamp.

Product Highlights

This 36-inch, stainless steel burner system is designed for vented fireplaces and includes all necessary components for installation.

Product Information

Standard Information

• Brand: GRAND CANYON
• Manufacturer Part Number: 3BRN-36-SS
• Country of Origin: US

Technical Specifications

• Model Number: 3BRN-36-SS
• Size: 36-Inch
• Burner BTU: NG-111K / LP-106K
• Min Fireplace Dimensions: Front W: 48-Inch, Rear W: 39-Inch, D: 14-Inch, H: 14-Inch
• Manufacturer: Grand Canyon
• Item Number: GRC-3BRN-36-SS
• Fuel Type: Natural Gas - convertible to Liquid Propane
• Front Width: 36-Inch
• Back Width: 27-Inch
• Depth: 14-Inch
• Height: 8-Inch
• BTU Rating: 111K BTU
• Style: Main rear burner w/Dual action front ember burner
• Usage: Indoor
• Materials: Stainless Steel Chassis
• Piping: 1/2” Piping & ½” Bar Stock
• Fittings: Gas Inlet Left or Right
• Pilot: Concealed Pilot Mounting Brackets
• Minimum Fireplace Dimensions Front Width: 48 inches
• Minimum Fireplace Dimensions Rear Width: 36 inches
• Minimum Fireplace Dimensions Depth: 16 inches
• Minimum Fireplace Dimensions Height: 16 inches
