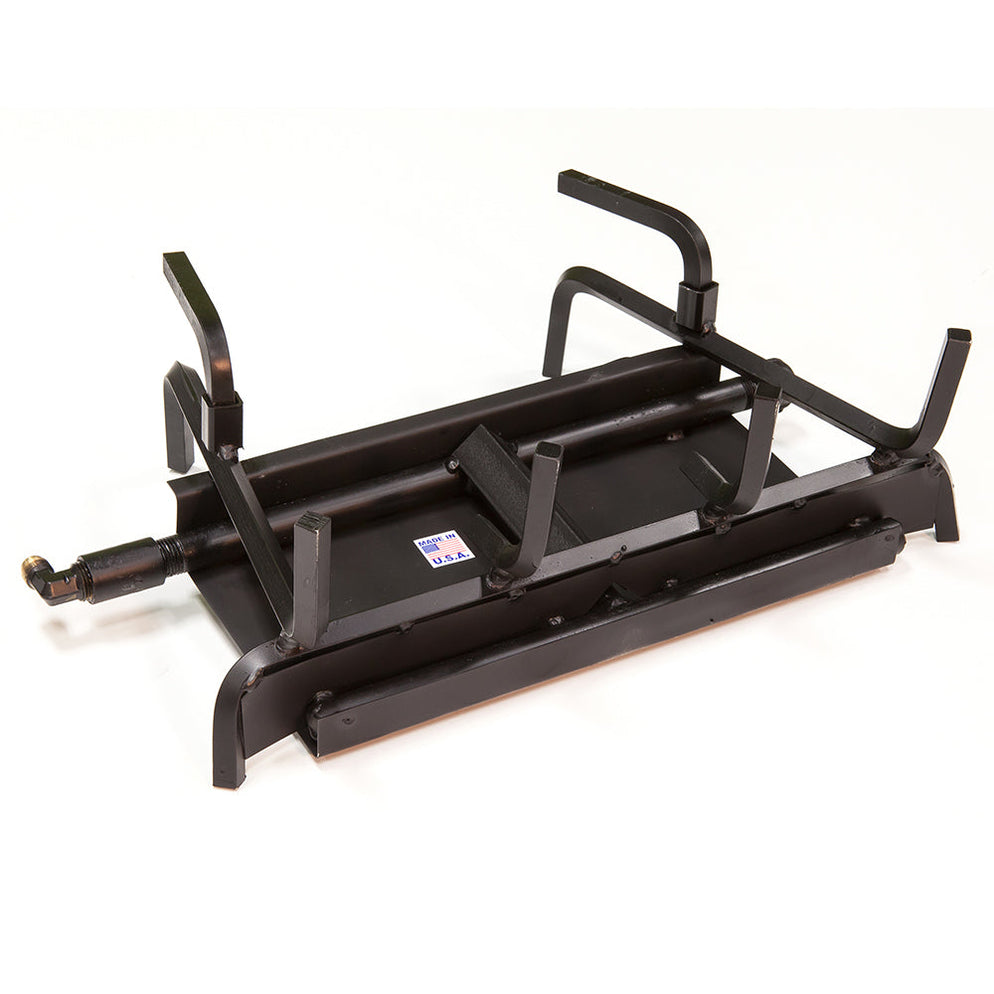

Grand Canyon 2brn-48 Vented Gas 2 Burner System 48 Inches

Product Description

The GRAND CANYON 2brn-48 is a 48-inch vented gas two-burner system designed for indoor gas fireplaces. It delivers up to 106,000 BTU/h on both natural gas and liquid propane (with optional conversion kit LP-CONV). The chassis is constructed from 304 stainless steel for long-term durability in high-heat environments. The system includes one main rear burner and one front ember burner, and gas inlet connections accept feed from either the left or right side. Licensed gas technicians and fireplace installers are the typical trade professionals handling this component.

This burner system is rated for indoor residential use and is built to fit into a wide range of gas fireplace openings. The burner tines are adjustable in height to accommodate different fireplace opening sizes and log arrangements. The package ships complete with metal bar stock, burner pipes, lava rock, necessary gas fittings, a flex line, and an ember damper clamp. The concealed pilot mounting brackets keep the pilot assembly out of sight for a clean finished appearance. The middle and elevated back burner on this 48-inch two-burner model matches the back burner height found on the Grand Canyon three-burner system, making it a direct substitute in applications where a three-burner layout is not required.

Key Features

• 304 stainless steel chassis for corrosion resistance in continuous high-heat operation
• 106,000 BTU/h output on both natural gas and liquid propane
• Dual-action front ember burner paired with main rear burner for layered flame appearance
• Gas inlet accepts left-side or right-side feed for flexible rough-in configurations
• Adjustable burner tines accommodate varying fireplace opening sizes and log styles
• Complete kit includes bar stock, burner pipes, lava rock, fittings, flex line, and ember damper clamp
• Liquid propane conversion available via separate kit LP-CONV

Compatibility

Designed for indoor vented gas fireplace installations running natural gas or, with the LP-CONV conversion kit, liquid propane. Back burner height is equivalent to the Grand Canyon three-burner system, allowing use in fireplace boxes originally sized for a three-burner layout.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with the International Fuel Gas Code (IFGC) and all applicable local codes. Shut off the gas supply and verify zero pressure at the line before making any connections. Use only listed gas fittings and confirm all joints are leak-tested with an approved solution before lighting. Do not operate the burner in an unvented or sealed enclosure; this system is rated for indoor vented use only.

Technical Specifications

• Size: 48 inches
• Burner Output: 106,000 BTU/h (natural gas and liquid propane)
• Fuel Type: Natural gas, convertible to liquid propane
• Usage: Indoor
• Burner Configuration: Main rear burner with dual-action front ember burner
• Chassis Material: 304 stainless steel
• Piping: 1/2 inch piping and 1/2 inch bar stock
• Gas Inlet: Left or right side
• Pilot: Concealed pilot mounting brackets

Standard Information

• Brand: GRAND CANYON
• Manufacturer Part Number: 2brn-48
