Goulds Water Technology S10015WF Pump Control Panel 7.5 HP 115/230 VAC 60 Hz

Product Description

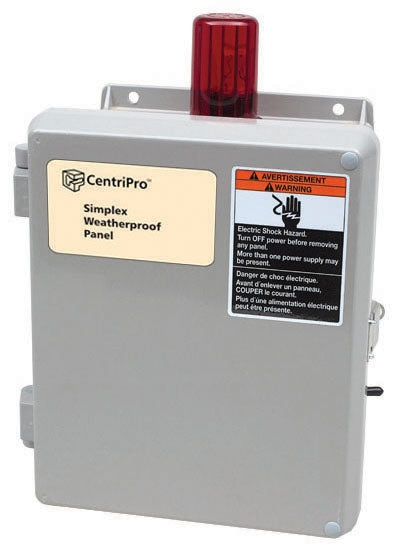

The Goulds Water Technology S10015WF is a pump control panel designed for efficiency and reliability. This unit operates on 115/230 VAC 60 Hz with a power rating of 7.5 HP. It is built in a weatherproof enclosure that complies with NEMA 4X standards, allowing it to withstand harsh weather conditions.

• Dimensions: 9.25 inches long, 5.63 inches wide, 13.5 inches high
• Includes a high-level alarm circuit and external controls
• Features a lockable stainless steel latch for safety

Product Highlights

This control panel is suitable for use with various pumps, including sump, effluent, sewage, and water transfer applications. The high-level alarm provides immediate alerts for system monitoring.

Product Information

Standard Information

• Type: Simplex, Weatherproof, Non-Modifiable
• Power Rating: 7.5 HP

Technical Specifications

• Voltage Rating: 115/230 Volt AC
• Frequency Rating: 60 Hertz
• Fuse Clip Size: 20 Amp
• Number of Phases: 1
• Enclosure Type: NEMA 4X
• Number of Wires: 4
• Overall Dimensions: 9.25 inches Length x 5.63 inches Width x 13.5 inches Height
• Inclusions/Features: High Level Alarm Circuit with External, On/Off, Alarm Horn Silence Switch
• Applicable Standard: UL, CUL
