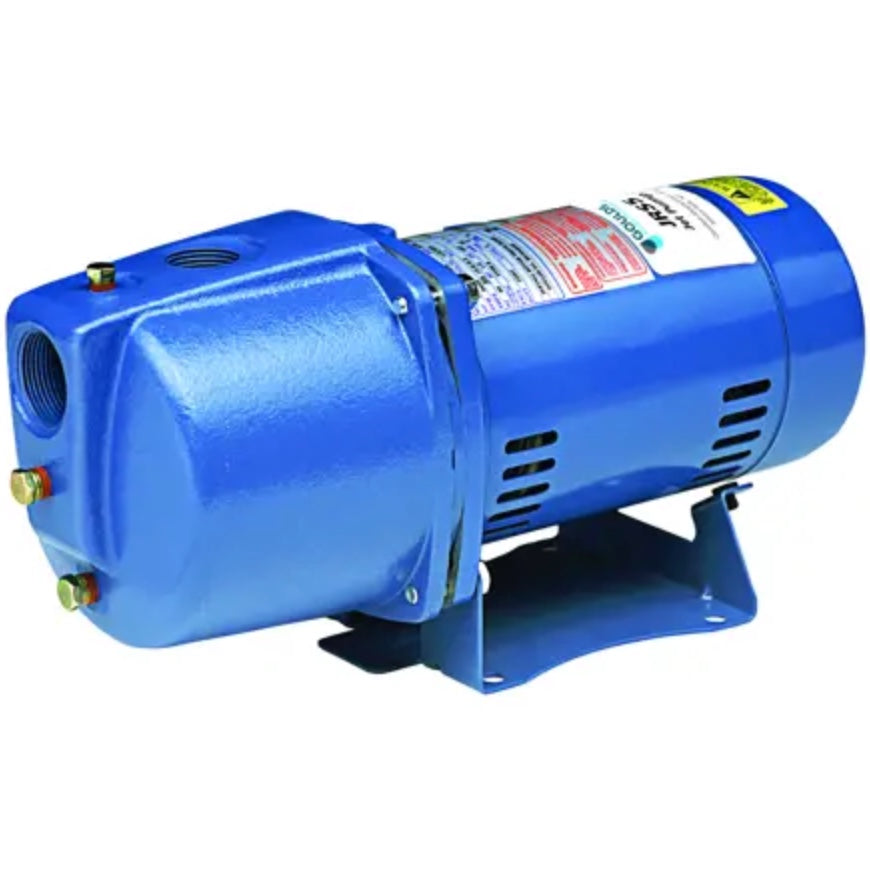

Goulds Pumps JRS7 Jet Shallow Well Pump 3/4 HP 1 Phase

Product Description

The Goulds Pumps Inc JRS7 Jet Shallow Well Pump is suitable for shallow well applications including homes, cottages, and booster service. Its compact design integrates a shallow well jet, removing the need for a separate adapter. Built with a cast iron casing and a stainless steel wear ring, it is designed for durability. This pump is tested at the factory for reliable installation.

• Designed for shallow well applications
• Features an integral shallow well jet
• Includes an F.D.A. compliant, glass filled Noryl impeller

Product Highlights

This pump is an effective solution for shallow well water supply, providing reliable water flow in residential settings.

Product Information

Standard Information

• Brand: Goulds Pumps Inc
• MPN: JRS7

Technical Specifications

• HP: 3/4
• Phase: Single
• Volts: 115/230
• Hertz: 60
• RPM: 3500
• Shaft: Stainless Steel
• Shaft Seal: Standard Mechanical Seal is Buna/Carbon/Ceramic
• Impeller Type: F.D.A. compliant, glass filled Noryl
• Ports: 1-1/4 inch NPT suction, 1 inch NPT discharge
• Rotation: Clockwise when viewed from motor end
• Maximum Temperature: 140 degrees Fahrenheit
• Width: 9.15 inches
• Height: 8 inches
• Certifications: CSA certified
• Pump Casing Material: Cast Iron
• Impeller Material: Glass-Filled Engineered Composite (FDA Compliant)
• Maximum Operating Flow Rate: 22.5 gpm
• Duty Cycle: Continuous
• Speed: 3500 rpm
• Frequency: 60 Hz
• Country/Region of Manufacture: USA
• Type: Water Well Jet Pump
• Item Height: 17 inches
• Item Length: 24 inches
• Item Width: 13 inches
