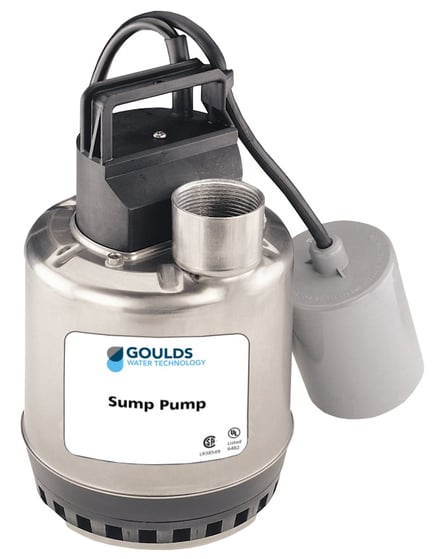

Goulds Pumps Inc LSP0311AT Submersible Sump Pump 1/3 HP With Piggyback Wide Angle Float Switch

Product Description

The Goulds Pumps Inc LSP0311AT is a submersible sump pump designed for heavy-duty water management tasks. With a one-third horsepower motor, it effectively handles dewatering and water transfer applications. This pump is equipped with a piggyback wide angle float switch that allows for automatic operation without manual intervention. The included ten-foot power cord provides flexibility in installation.

• Corrosion-resistant stainless steel motor casing.
• Glass-filled thermoplastic impeller and casing for durability.
• Heavy-duty ball bearings for extended service life.

Product Highlights

This sump pump is ideal for basement drainage, maintaining dry conditions, and efficient water management in residential settings.

Product Information

Standard Information

• Brand: Goulds Pumps Inc
• MPN: LSP0311AT

Technical Specifications

• Application: Dewatering Transfer
• Horsepower: 1/3 HP
• Voltage: 115 Volts
• Phase: 1 Ph (Single Phase)
• Frequency: 60 Hz
• Speed: 3450 RPM
• Operation: Automatic
• Float Switch Style: Piggyback Wide Angle
• Minimum On Level: 11 inches
• Minimum Off Level: 5 inches
• Impact-resistant Materials: Glass-filled thermoplastic
• Discharge Connection: 1-1/2 inches NPT
• Minimum Basin Diameter: 12 inches
• Maximum Flow: 36 GPM
• Maximum Head: 34 feet
• Maximum Solids Handling: 3/8 inches
• Maximum Submergence: 10 feet
• Motor Housing: Stainless steel
• Thermal Protection: Yes
• Current: 2.9 Amps
• Minimum Circuit Breaker: 10 Amps
• Maximum Liquid Temperature: 104°F
• Cord Length: 10 feet
• Motor Speed: 3450 RPM
• Installation: Submersible
• Body Diameter: 6-1/8 inches
• Overall Height: 9-3/4 inches
• Standards: cCSAus; UL Listed
