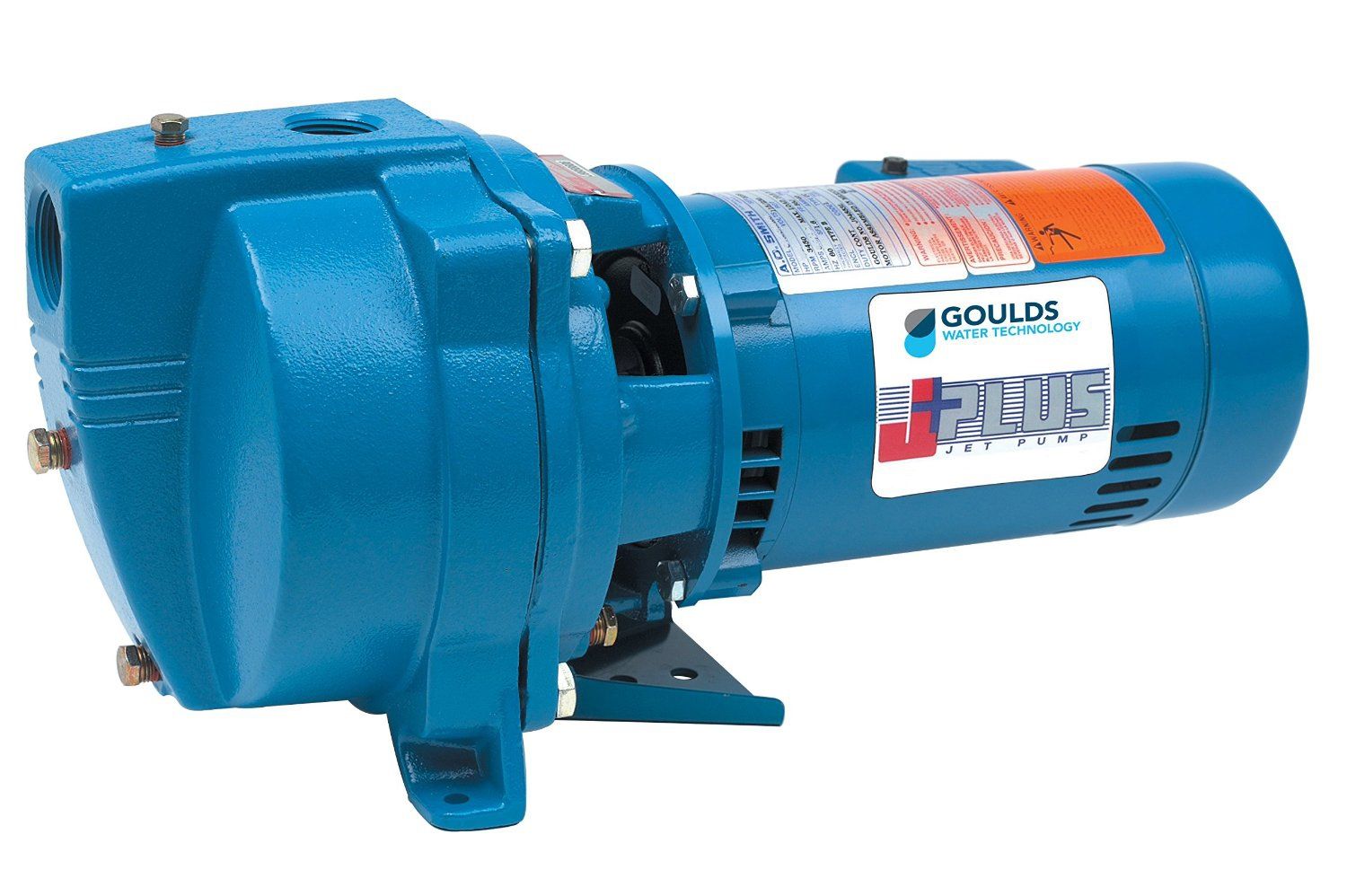

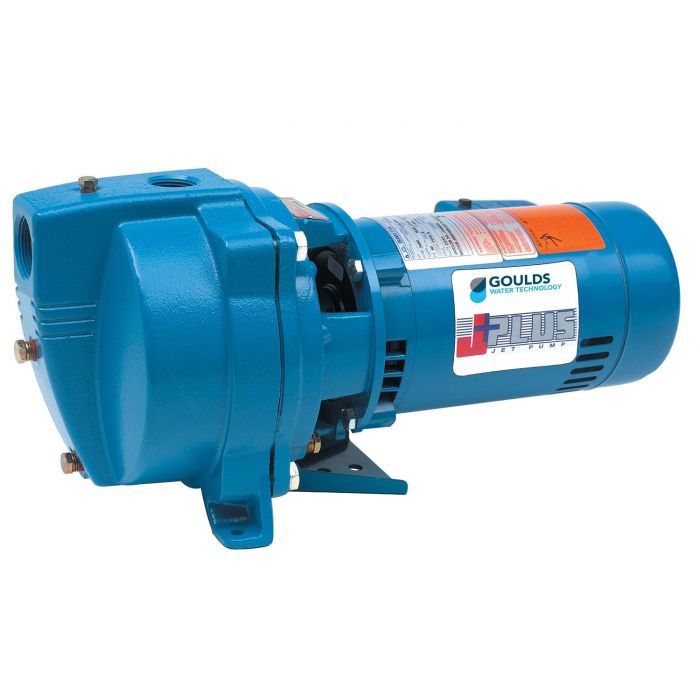

Goulds Pumps Inc J7S 3/4 HP Shallow Well Jet Pump

Product Description

The Goulds Pumps Inc J7S is a 3/4 HP shallow well jet pump suitable for residential and booster service applications. Its integral shallow well adapter is built into the casing, negating the need for a separate adapter. This pump features a back pull-out design for servicing ease and a two-compartment motor to access wiring without complications.

• Integral shallow well adapter included
• Back pull-out design for straightforward service
• Made with corrosion-resistant materials

Product Highlights

The Goulds J7S provides reliable performance in shallow well water applications. Its design allows for self-priming after initial priming and manages air effectively, making it ideal for various household uses.

Product Information

Standard Information

• Brand: Goulds
• Manufacturer: Goulds Pump

Technical Specifications

• MPN: J7S
• Series: JS+ Series
• Product Type: Shallow Well Jet Pump
• Motor Horsepower: 0.75
• Voltage: 115 / 230 Volts
• Phase: 1
• Material: Cast Iron
• Inlet / Outlet Pipe Connections: 1¼ NPT / 1 NPT
• Pressure Switch: AS4 preset (30-50 PSI)
• Rotation: Clockwise when viewed from motor end
• Maximum Temperature: 140°F
• Item Weight: 51 Pounds
• Product Dimensions: 21 inches long x 12 inches wide x 11 inches high
• Power Source: AC
