Goulds Pumps Inc 10CS07412CL 4 CS Series Submersible Well Pump

Product Description

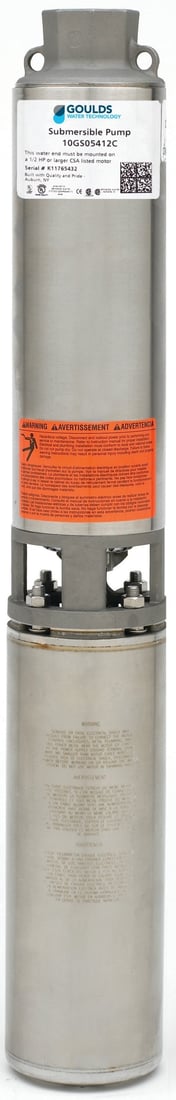

The Goulds Pumps Inc 10CS07412CL is a four-inch submersible well pump designed for effective water systems. Made from stainless steel, it is suitable for wells with a diameter of four inches or larger. This pump is equipped with a CentriPro motor and features two safety line loops for secure installation. It achieves a best efficiency flow rate of ten gallons per minute (GPM).

• 3/4 horsepower motor
• Operates at 230 volts
• 3-wire configuration

Product Highlights

The Goulds Pumps Inc 10CS07412CL is built for strength and corrosion resistance while providing reliable water delivery in various applications.

Product Information

Standard Information

• Brand: Goulds
• Manufacturer: Goulds

Technical Specifications

• MPN: 10CS07412CL
• Series: GS
• Product Type: Submersible well pump
• Application: Water systems
• Horsepower: 3/4 HP
• Input Voltage: 230 Volts
• Phase: 1
• Frequency: 60 Hz
• Speed: 3450 rpm
• Stages: 10
• Motor Type: 3-wire
• Minimum Well Size: 4 inches
• Discharge Connection: 1-1/4 NPT
• Best Efficiency Flow: 10 gpm
• Flow Range: 3 - 16 gpm
• Pump Casing: AISI 304 stainless steel
• Impeller Material: Noryl
• Check Valve Poppet: AISI 304 stainless steel
• Bearing: Proprietary engineered polymer
• Thermal Protection: Yes
