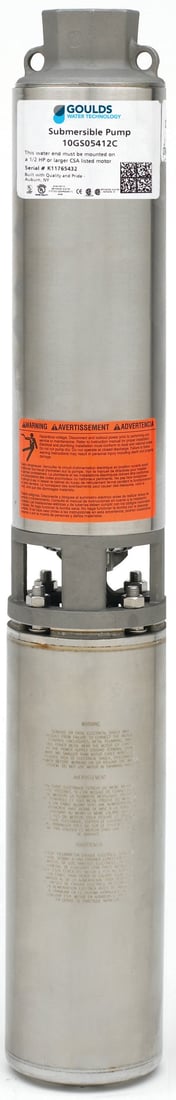

Goulds Pumps Inc 10CS05422C 4 CS Series Submersible Well Pump

Product Description

The Goulds Pumps Inc 10CS05422C is a 4-inch submersible well pump. It is suitable for installation in water wells that are four inches in diameter or larger. The pump is made from stainless steel for durability. It features a half horsepower motor that operates on two hundred thirty volts of single-phase power.

• Designed for sand handling
• Includes a two-wire configuration
• Has a one and one-fourth inch NPT discharge connection

Product Highlights

The pump’s impellers, diffusers, and bearing spiders are made from glass-filled engineered composites, providing excellent performance.

Product Information

Standard Information

• Brand: Goulds Pumps Inc
• MPN: 10CS05422C

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 230 V
• Phase: 1
• Amps: 4
• Wire Configuration: 2 Wire
• Material: Stainless Steel
• Diameter: 4 inches
• Stages: 7
• Type: Submersible Pump
• Frequency: 60 Hz
• Speed: 3450 rpm
• Minimum Well Size: 4
• Discharge Connection: 1-1/4 NPT
• Best Efficiency Flow: 10 gpm
• Flow Range: 3 - 16 gpm
• Pump Casing: AISI 304 stainless steel
• Impeller Material: Noryl
• Check Valve Poppet: AISI 304 stainless steel
• Motor Adapter: AISI 303 stainless steel
• Thermal Protection: Yes
• Control Box: Not required
