Goulds Pumps Inc 10CS05412CL 4 CS Series Submersible Well Pump

Product Description

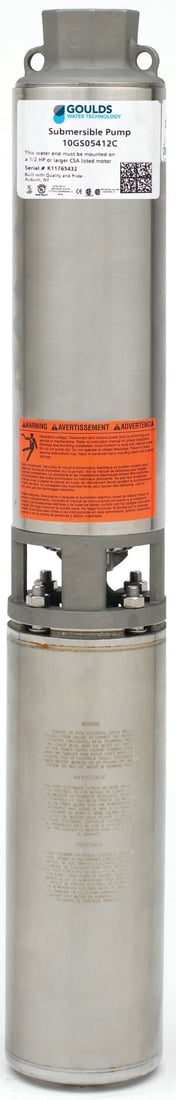

The Goulds Pumps Inc 10CS05412CL is a four-inch submersible well pump crafted for efficient water systems. Built from stainless steel, this pump provides corrosion resistance. It operates with a CentriPro motor, making it suitable for installation in wells with a diameter of four inches or more. The product features two cast-in safety line loops for added strength.

• Stainless steel construction ensures longevity.
• Designed for wells with a diameter of four inches or larger.
• Includes two cast-in safety line loops for secure installation.

Product Highlights

This submersible well pump is ideal for both shallow and deep well installations, guaranteeing reliable water delivery and pressure across various applications.

Product Information

Standard Information

• Brand: Goulds
• MPN: 10CS05412CL

Technical Specifications

• Series: GS
• Product Type: Submersible well pump
• Application: Water systems
• Horsepower: 1/2 HP
• Voltage: 230 Volts
• Phase: 1
• Frequency: 60 Hz
• Speed: 3450 rpm
• Stages: 7
• Motor Type: 3-wire
• Minimum Well Size: 4 inches
• Rotation: Counterclockwise
• Discharge Connection: 1-1/4 NPT
• Flow Rate: 10 Gallons Per Minute (GPM)
• Best Efficiency Flow: 10 gpm
• Flow Range: 3 - 16 gpm
• Pump Casing: AISI 304 stainless steel
• Impeller Material: Noryl
• Check Valve Poppet: AISI 304 stainless steel
• Bearing: Proprietary engineered polymer
• Motor Adapter: AISI 303 stainless steel
• Cable Guard: AISI 304 stainless steel
• Suction Screen: AISI 304 stainless steel
• Thermal Protection: Yes
