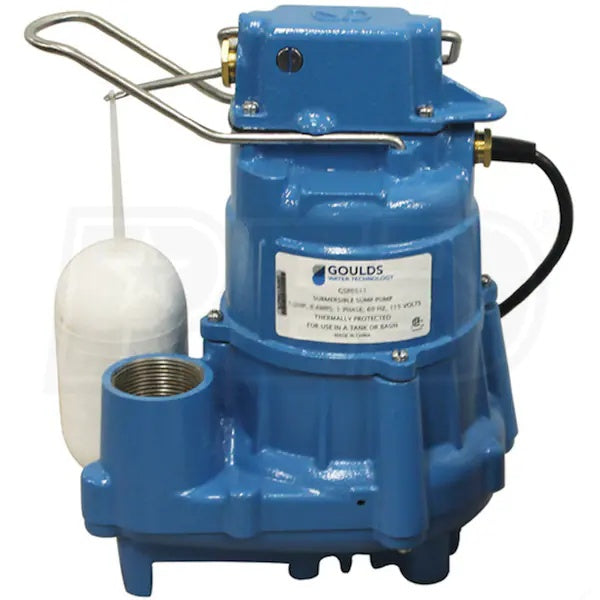

Goulds GSP0511 Sump Pump 0.5 Hp 115V Cast Iron

Product Description

The GOULDS GSP0511 is a 0.5 horsepower, 115-volt cast iron sump pump designed for residential and light commercial water removal applications. It features a vertical float switch that activates and deactivates the pump automatically based on water level, reducing the need for manual monitoring. Cast iron construction provides durability in demanding wet environments. Licensed plumbers and pump service technicians are the primary installers of this unit. The vertical float switch configuration makes it well suited for standard sump pits where reliable automatic cycling is required.

The GSP0511 is used in residential basement sump pits and crawl space drainage applications where groundwater intrusion must be managed automatically. The vertical float switch design is appropriate for sump basins with enough diameter to allow unrestricted float travel. This pump operates on standard 115-volt single-phase power, making it compatible with typical residential electrical service without the need for dedicated high-voltage circuits or three-phase supply.

Key Features

• 0.5 HP motor rated for 115-volt single-phase operation
• Cast iron pump body for durability in continuous wet service
• Vertical float switch for automatic water-level-activated cycling
• Designed for submersible sump pit installation
• Order increment of 1 unit

Compatibility

Designed as an OEM-style replacement or direct installation sump pump for residential and light commercial sump pit applications requiring a 0.5 HP, 115-volt submersible pump with vertical float switch control.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Disconnect power at the circuit breaker before handling any wiring connections. Ensure the sump basin has sufficient diameter to allow full vertical travel of the float switch without obstruction. Verify the discharge line check valve and pipe sizing are compatible with the pump before startup.

Technical Specifications

• Horsepower: 0.5 HP
• Voltage: 115 volts
• Switch Type: Vertical Float
• Body Material: Cast Iron
• Weight: 38 pounds

Standard Information

• Brand: GOULDS
• Manufacturer Part Number: GSP0511
