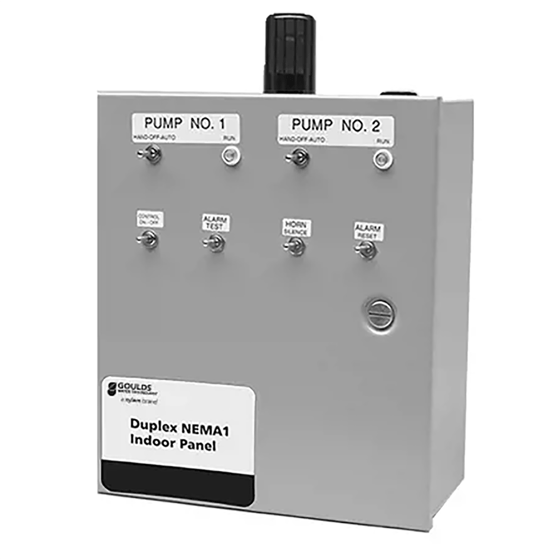

Goulds GOULDS-D10020N1 Duplex Control Panel 0-20A

Product Description

The Goulds GOULDS-D10020N1 is a duplex control panel from the Goulds CentriPro SES series, designed to manage and protect two-pump systems in residential and light commercial water applications. Operating at 115 or 230 volts single-phase, it handles a current range of 0 to 20 amps. The panel is housed in a NEMA 1 steel enclosure rated for indoor installation, measuring 12.3 inches wide, 14.3 inches tall, and 6 inches deep. Alarm and run indicator lights provide at-a-glance system status. Licensed plumbers and pump service technicians are the primary installers for this type of control equipment.

This duplex control panel is suited for indoor pump control applications in residential and light commercial settings, such as well water systems, pressure booster systems, and sump or sewage pump stations running dual-pump configurations. The SES series is a field-recognized line for simplex and duplex pump control, and this unit is configured specifically for single-phase service within the 0 to 20 amp range. The non-modifiable design ensures a consistent, factory-set configuration on every installation.

Key Features

• Duplex configuration controls two pumps within a single enclosure
• Operates at 115 or 230 volts single-phase for flexible service connections
• 0 to 20 amp range covers common fractional and small horsepower pump motors
• NEMA 1 steel enclosure rated for indoor environments
• Alarm and run indicator lights provide continuous visual system monitoring
• Non-modifiable factory configuration ensures consistent, reliable setup

Compatibility

Designed as an OEM-style replacement or new-installation duplex control panel for single-phase indoor pump systems operating within the 0 to 20 amp service range, consistent with Goulds CentriPro SES series applications.

Installation Notes

Installation should be performed by a licensed plumber or pump systems technician familiar with low-voltage control wiring and local electrical codes. Disconnect and lock out all power to the system before opening the enclosure or making any wiring connections. The NEMA 1 rating limits this panel to dry indoor locations only — do not install in areas exposed to moisture, condensation, or washdown. Follow NEC requirements for panel mounting height, conduit entry, and conductor sizing appropriate to the connected load.

Technical Specifications

• Series: SES
• Product Type: Duplex Control Panel
• Voltage: 115/230 volts
• Phase: 1
• Amp Range: 0-20 amps
• Enclosure Type: NEMA 1
• Enclosure Material: Steel
• Indicator Lights: Alarm/Run
• Width: 12.3 inches
• Height: 14.3 inches
• Depth: 6 inches
• Application: Indoor
• Modifiable: No

Standard Information

• Brand: Goulds
• Manufacturer Part Number: GOULDS-D10020N1
