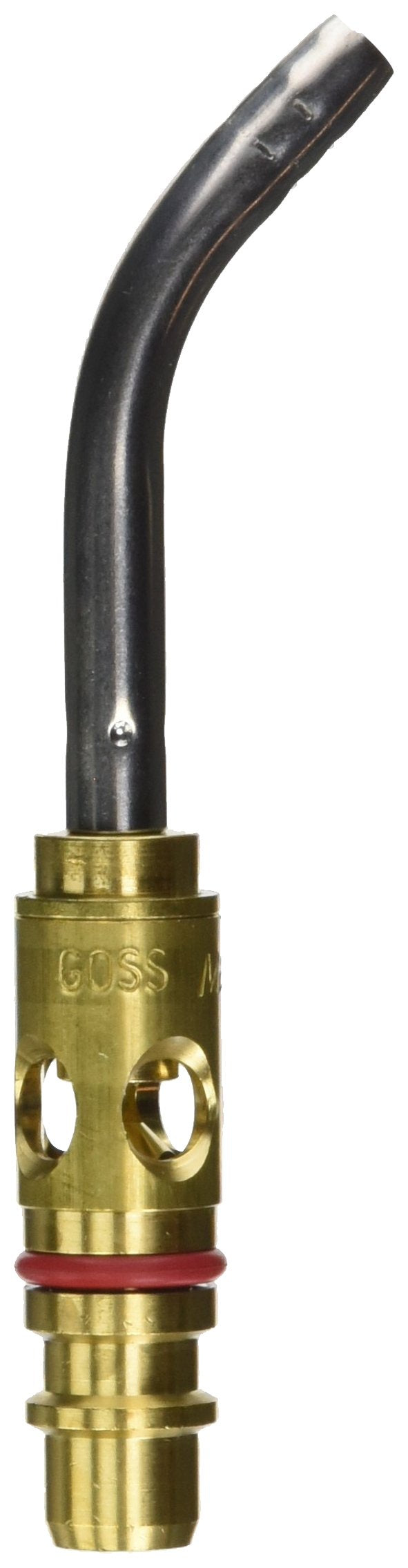

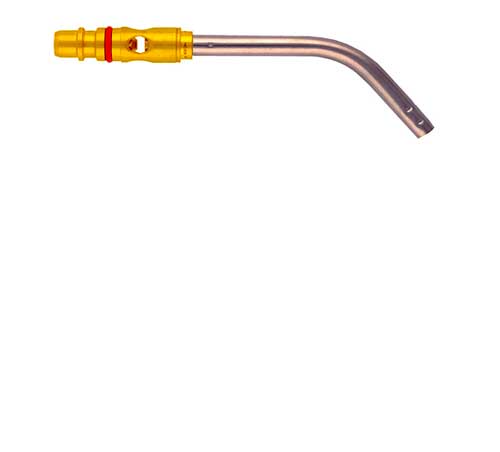

Goss GA-3 5/16 inches 1/4 to 1 inches Soft Solder, 1/8 to 1/2 inches Silver Brazing, Snap-In, Quick-Disconnect, Turbine Flame, Soldering Torch Tip

Product Description

The GOSS GA-3 is a soldering torch tip with a snap-in, quick-disconnect, turbine flame design. It is used on brazing and soldering equipment and has a tip size of 5/16 inch. It is suitable for tubing with a capacity of 1/4 to 1 inch for soft solder and 1/8 to 1/2 inch for silver brazing.

• Features a hotter turbine flame
• Offers an adjustable flame feature
• Interchangeable with other quick-disconnect style tips and equipment

Product Highlights

This soldering torch tip features a unique mixer design that reduces brazing time and is made in the USA.

Product Information

Standard Information

• Brand: GOSS
• Manufacturer Part Number: GA-3
• Country of Origin: US

Technical Specifications

• Tip Size: 5/16 Inch
• Type: Snap-In, Quick-Disconnect, Turbine Flame
• Used On: Brazing and Soldering Equipment
• Series: GA Series
• Material: Brass/Stainless Steel
• MPN: GA-3
• Brand: GOSS
• Gas Type: Acetylene
• Soft Solder: 1/4 to 1 Inch
• Silver Brazing: 1/8 to 1/2 Inch
• Handle Compatibility: Goss GG-4
• Fuel Type: Acetylene
• Soft Solder Size: 1/4 to 1 in
• Silver Braze Size: 1/8 to 1/2 in
• Suitable For Use With: Goss GG-4 Handles
• Tip Type: Snap-In
