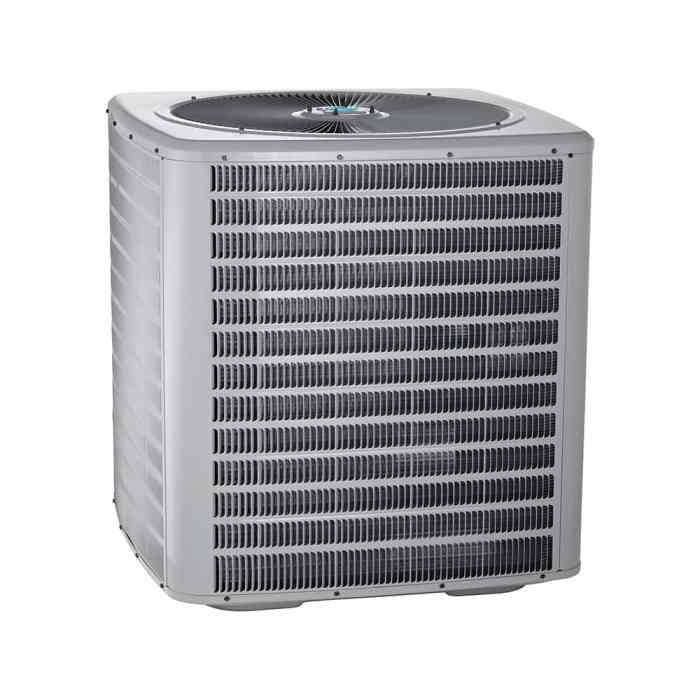

Goodman VSZ140481 Heat Pump Condenser 4 Ton 14 SEER Single Phase GMC Series R410A

Product Description

The GOODMAN VSZ140481 is a 4 ton, 14 SEER single-phase GMC series heat pump condenser using R410A refrigerant. Features include a high-efficiency compressor and a copper tube/aluminum fin coil. It also has a factory-installed bi-flow liquid line filter, suction line accumulator, crankcase heater, and high-capacity muffler. High and low-pressure switches and a contactor with lug connections are included.

• High-efficiency compressor
• Copper tube/aluminum fin coil
• Factory-installed bi-flow liquid line filter
• Factory-installed: suction line accumulator crankcase heater, high capacity muffler

Product Highlights

This Goodman heat pump condenser provides efficient cooling and heating with robust components for reliable operation.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: VSZ140481
• Country of Origin: UNITED STATES

Technical Specifications

• BtuH Cooling: 48,000
• BtuH Heating Input: 48000
• COP: 4.72
• Depth: 29"
• Descriptor: VSZ14 14 SEER
• EER: 11.5
• HSPF: 9
• Height: 36-1/4"
• Liquid Conn.: 3/8"
• Max. Fuse Size: 40
• Min. Circuit Amps: 24.4
• Motor Type: PSC
• Nom. Tons: 4
• OEM TXV: B14-851
• Phase: Single
• Refrigerant: R410A
• SEER: 14
• Suction Fitting: 1-1/8" *
• Volts: 208/230
• Width: 29"
• Wt. Lbs.: 226
• SKU: VSZ140481
• Brand: GMC
• Current Type: AC
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
