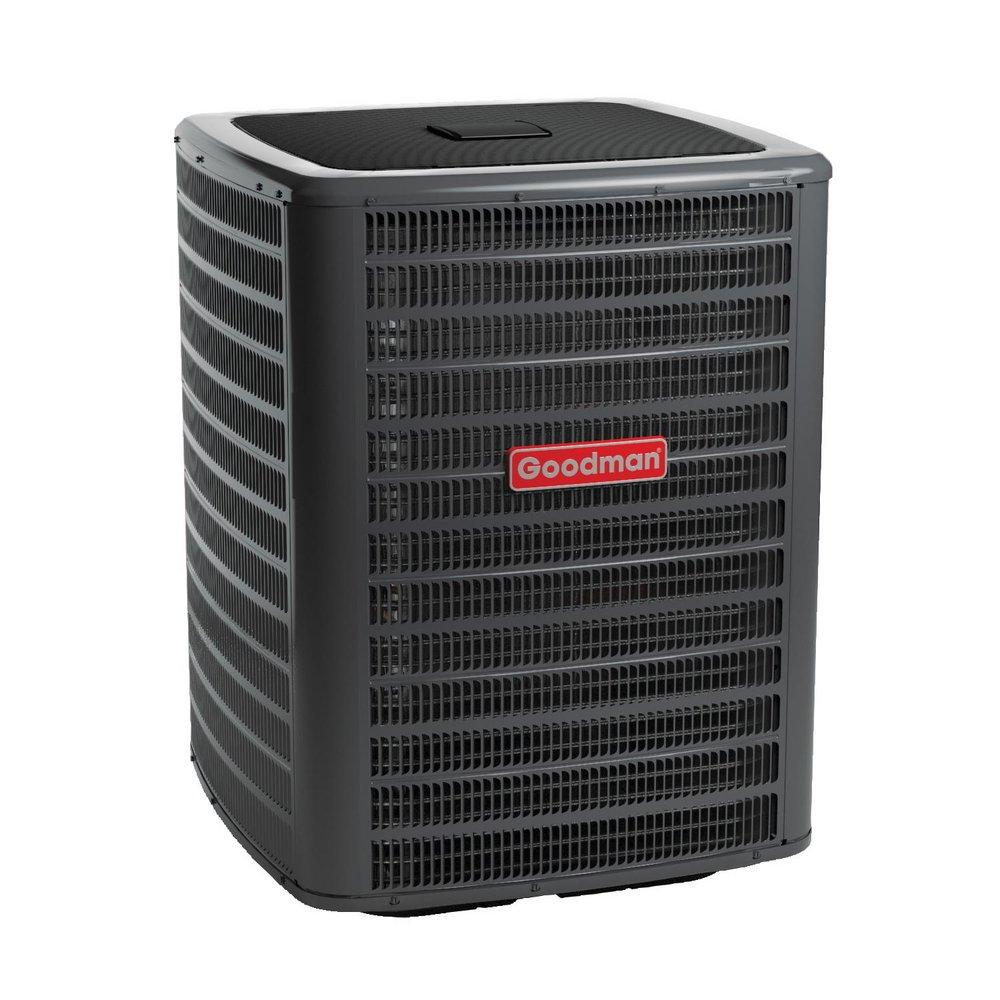

Goodman Split Air Conditioner 18 SEER, Two Stage (GSXC180481)

SKU / MPN:
GSXC180481
SKU / MPN: GSXC180481

$3,562.27
Free Shipping

In Stock - Ships via Freight in 3-5 Business Days

Secure
Ordering

Easy
Returns

100% Fit
Guarantee

Expert
Advice

Fast
Shipping

HAVE A QUESTION? Our friendly team is ready to help!

Product Information

Goodman GSXC18 Split Air Conditioner 18 SEER, Two Stage, 4 Ton, ComfortBridge Technology compatible

High-Efficiency Split System Air Conditioner Up to 19 SEER & 14 EER

Features:
  • High-efficiency two-stage scroll compressor
  • High-efficiency two-speed ECM condenser fan motor
  • ComfortBridgeô Communications System compatible
  • Factory-installed filter drier
  • Factory-installed high and low-pressure switches
  • High-density foam compressor sound blanket
  • CopelandÆ ComfortAlertô built in diagnostics
  • Fully charged for fifteen feet of tubing length
  • Factory-installed sensors monitoring coil and ambient temperature
  • Contactor with lug connection
  • 1In communicating mode, only two low voltage wires to the outdoor unit are required
  • 1AHRI Certified - ETL Listed
  • 1Ground lug connection
  • 1Color-coded terminal strip for non-communicating set-up
  • 1Copper tube & enhanced aluminum fin coil
  • 1Customized control algorithms
Benefits:
  • The two-stage scroll compressor runs at either 65% or 100% capacity, depending on cooling/heating demand. This operational flexibility provides a great energy-efficient option when compared to a traditional, single-stage unit.
  • The top performance of an electronically commutated motor (ECM) allows for two levels of operation depending on your airflow needs. It is a great energy-efficient option when compared to a traditional, single-speed motor.
  • Designed to regulate and communicate with your ComfortBridgeô Controls System so you can remotely monitor and manage your heating and cooling system ñ at any time, from anywhere with just an internet connection.
  • Filter-driers play a pivotal role in the operation of air conditioning and refrigeration systems. A factory installed filter-drier absorbs and filter's residual system contaminants and moisture.
  • A high-pressure switch prevents the system from operating at extremely high pressures by shutting off the compressor circuit if the pressure exceeds the designated rating. When a refrigeration system operates at lower than normal pressures, the low-pressure switch prevents freezing from working its way to the compressor.
  • High-density foam compressor blanket provides noise reduction when the compressor is in operation.
  • Assists contractors in troubleshooting the system with improved diagnostic accuracy by utilizing indicator lights, seven-segment LED display, and fault code storage.
  • Fully charged with refrigerant sufficient for 15í of tubing length to assist with easy installation of unit.
  • Consistent and concise monitoring helps to ensure that the system is operating efficiently, regardless of the weather.
  • Contractors can securely connect wires with large screw lugs, allowing for quick and solid wiring.
  • 1By simplifying the communication connection to two low voltage wires to the outdoor unit, technicians may eliminate the need to run additional thermostat wiring.
  • 1Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
  • 1Contractors can easily and securely connect the ground wire with a screw lug.
  • 1A straight-forward, color-coded terminal strip for non-communicating set-up helps to simplify installation.
  • 1Copper coil tubing with enhanced aluminum fins increases the area for heat absorption, providing outstanding, energy-efficient heat transfer performance.
  • 1Proprietary, self-contained sequence of actions designed to help control system operation for energy efficient performance and enhanced reliability.
Cabinet Features:
  • Heavy-gauge galvanized steel cabinet and louvered coil guards
  • Service valves with sweat connections and easy-access gauge ports
  • Engineered sound control top design
  • Wire fan discharge grille
  • Baked-on powder-paint finish with 500-hour salt-spray approval
  • Single-panel access to controls with space for field-installed accessories
  • Service port and controls are accessible while unit is operating
  • Compact footprint
  • Rust-resistant screws
  • When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
