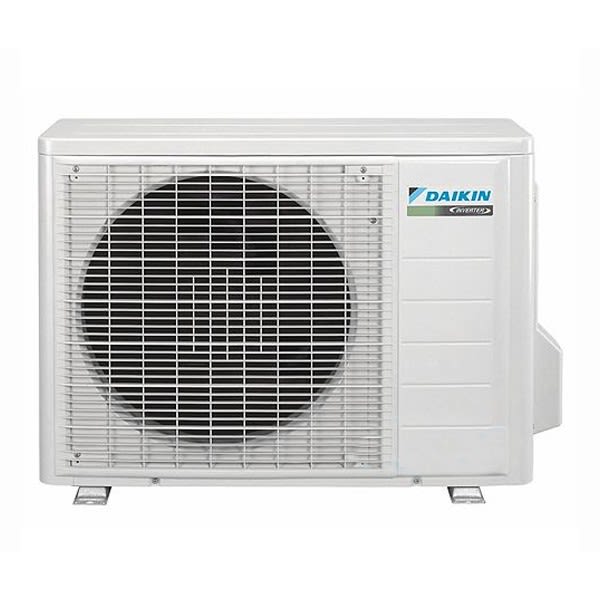

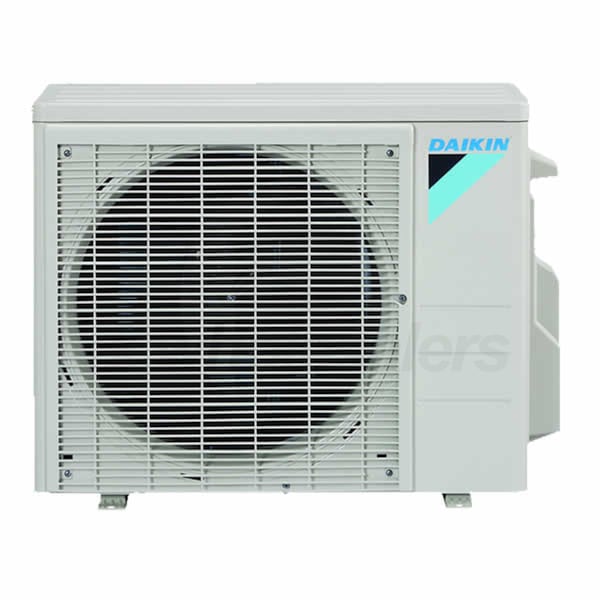

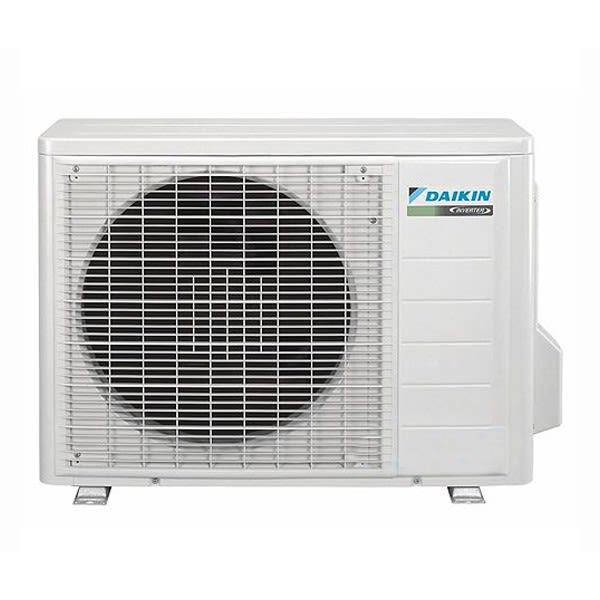

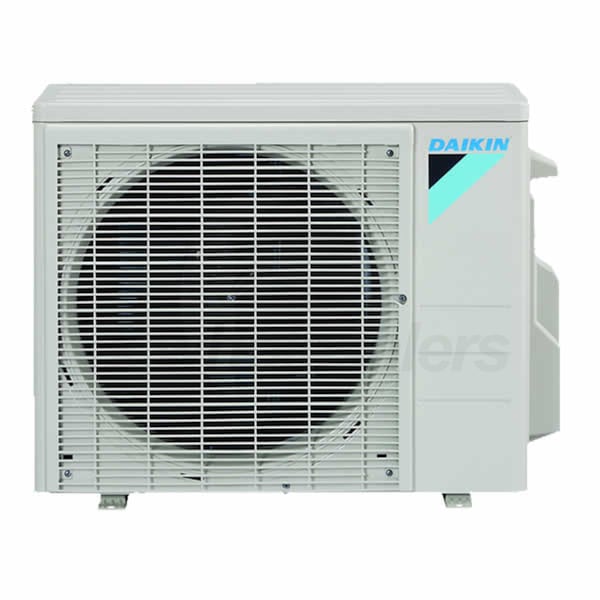

Goodman RXL09QMVJU Daikin AURORA Series Outdoor Mini-Split Heat Pump

Product Description

The Goodman RXL09QMVJU is a mini-split heat pump made for outdoor use, specially designed for single-zone applications. This product is part of the Daikin AURORA Series and provides both heating and cooling capabilities. It uses R-410A refrigerant and operates efficiently in low ambient conditions. For its optimal performance, it requires a compatible indoor unit, which is sold separately.

• Functions as an outdoor heat pump unit
• Operates on 208-230V power and R-410A refrigerant
• Inverter technology for quiet operation

Product Highlights

This unit is built for reliability and efficiency, making it suitable for various climate conditions.

Product Information

Standard Information

• Brand: Goodman
• Type: Outdoor Condenser

Technical Specifications

• MPN: RXL09QMVJU
• Product Line: 20-Series
• Operating Mode: Heating and Cooling
• Tonnage: 0.75 tons
• Cooling Capacity: 9000 BTU
• Heating Capacity: 10900 BTU
• SEER: 20.0
• EER: 12.5
• HSPF: 12.5
• Power Voltage: 208-230 V
• Power Phase: 1 Ph
• Power Frequency: 60 Hz
• Refrigerant: R-410A
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: -4 F
• Maximum Line Length: 65.6 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 21 5/8 Inches
• Product Width: 26 9/16 Inches
• Product Depth: 11 3/16 Inches
• Product Weight: 60 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• AHRI Reference Number: 8849533
• Unit Type: Outdoor
• Efficiency: 18 SEER
• Family: RXL_QMVJU
• Unit Weight: 60 lb
• Airflow Rate High Cooling: 1105 ft/min
• Cooling Power Input: 700 Watts
• Heating Power Input: 800 Watts
• Low Ambient Heating: Yes
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Recommended Breaker Size: 15 Amps
• Parts Warranty: 5 Years
• Compressor Warranty: 5 Years
