GOODMAN PTSB430QW Electrical Sub Base for 30 Amp Units - 265 Volt - Quiet White

Product Description

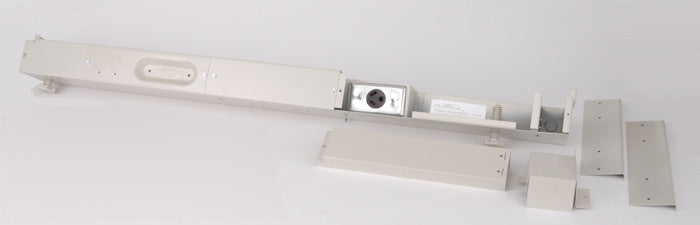

The Goodman PTSB430QW is an electrical sub base designed for thirty amp, two hundred sixty-five volt commercial units. This sub base helps conceal wiring and offers stable support to prevent tipping. It features leveling legs for added stability. Electrical connections are accessible from the left side after removing the access cover.

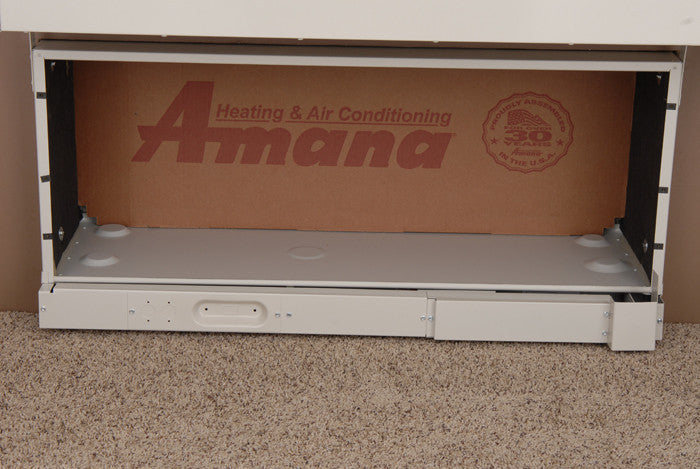

The sub base may be installed onto the wall sleeve either before or after the sleeve installation. Minimum clearance from the bottom of the wall sleeve to the finished floor measures three and three-quarters inches, while the maximum height clearance reaches five inches. It is fully skirted to conceal all electrical components while providing easy access for installation and repairs through a plug-in receptacle.

• Designed for thirty amp, two hundred sixty-five volt units.
• Conceals wiring and provides strong support with leveling legs.
• Meets NEC requirements for electrical accessories.

Product Highlights

This sub base is finished in Quiet White, matching the J/K Series of Amana PTAC units, ensuring a seamless look.

Product Information

Standard Information

• Brand: Goodman
• MPN: PTSB430QW

Technical Specifications

• Voltage: 265 volts
• Current: 30 amps
• Minimum clearance from wall sleeve bottom: 3.75 inches
• Maximum height from wall sleeve bottom: 5 inches
• Minimum clearance from wall sleeve flange: 2.75 inches
