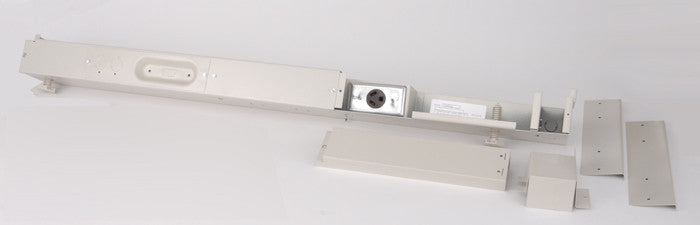

GOODMAN PTSB430E Electrical Sub Base for 30 Amp Units - For 265 Volt Units

Product Description

The GOODMAN PTSB430E is an electrical sub base designed for thirty amp units, specifically for 265 volt commercial equipment. This sub base supports wiring and provides stability to avoid tipping. It includes leveling legs and is prewired for easy connections.

• Strong, stable support for HVAC units
• Prewired for quick setup with 265 volt systems
• Includes a grounding screw for safety

Product Highlights

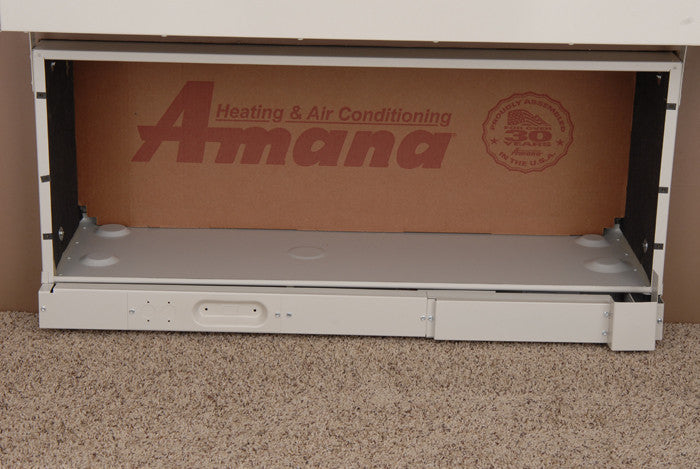

The PTSB430E features a fully skirted design that conceals electrical connections while allowing for easy access. It can be installed either before or after the wall sleeve installation.

Product Information

Standard Information

• Use: For 30 amp HVAC units
• Voltage: 265 volts

Technical Specifications

• Minimum clearance from wall sleeve bottom to floor: 3.75 inches
• Maximum height clearance from wall sleeve bottom to floor: 5 inches
• Minimum clearance between wall sleeve flange and finished wall: 2.75 inches
